Suspension Control ( Automatic - Electronic ): Testing and Inspection



AR32.22-P-8100GZ Check AIRmatic for leaks
- with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS)

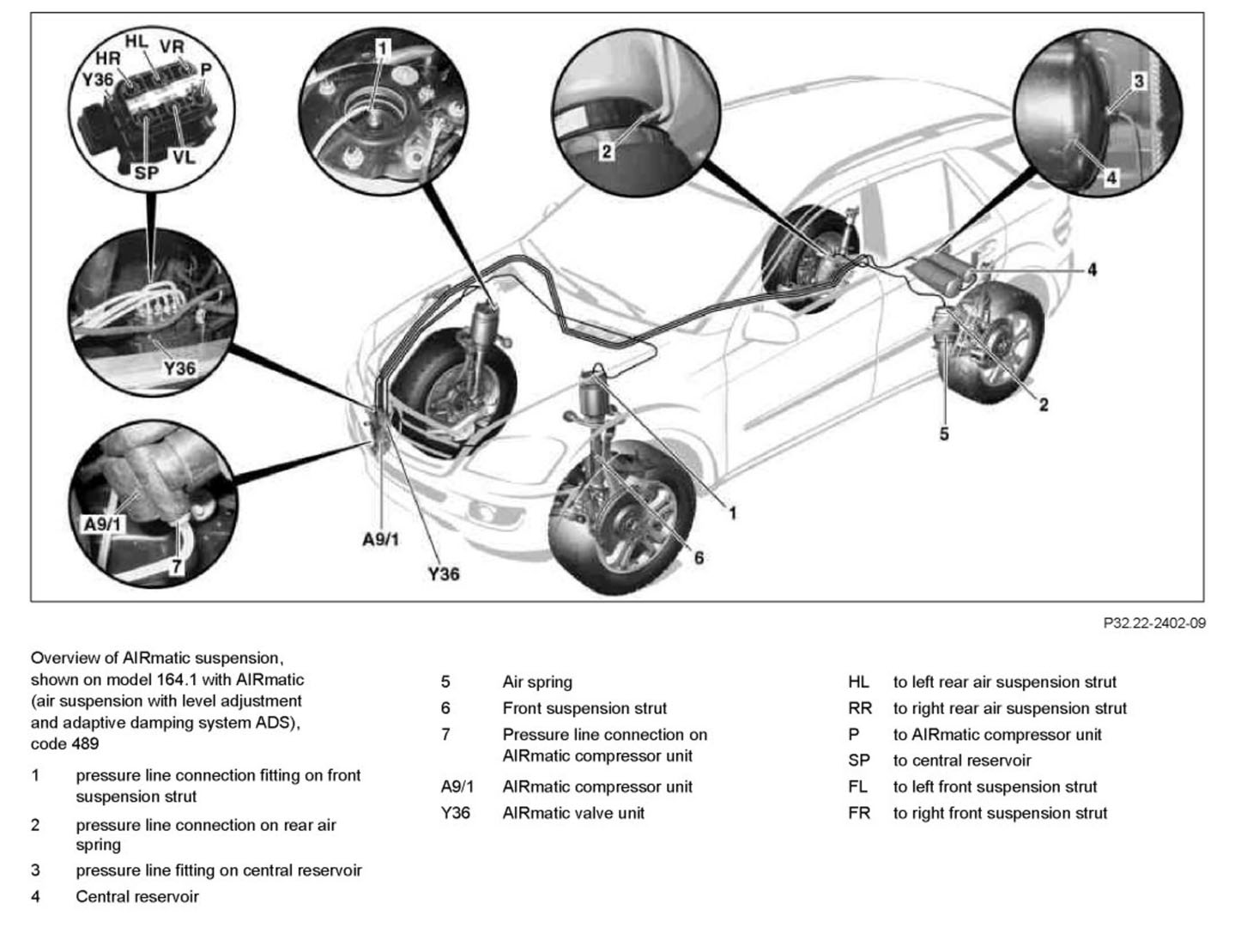

Component Identification:

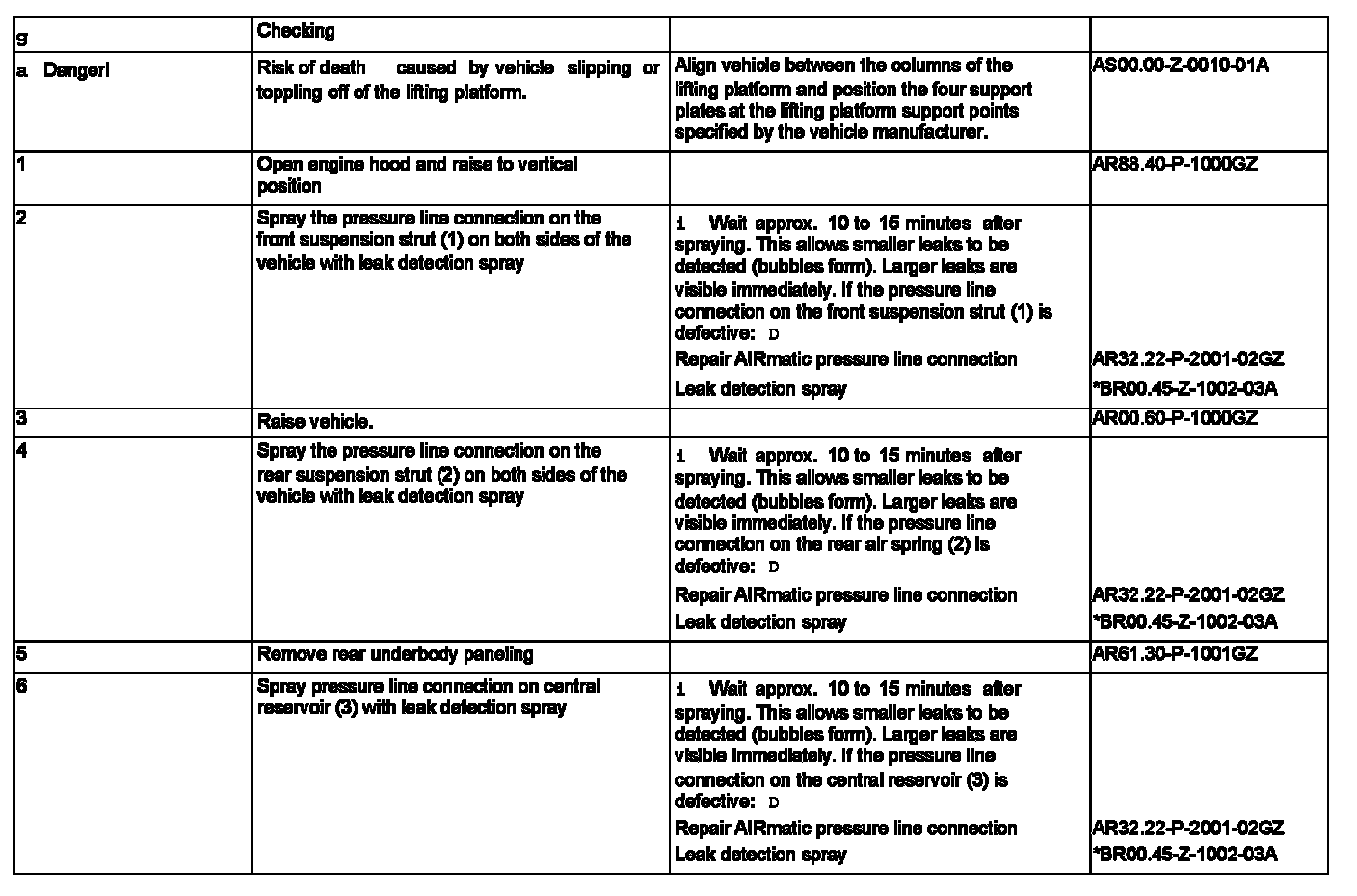

Steps 1-6:

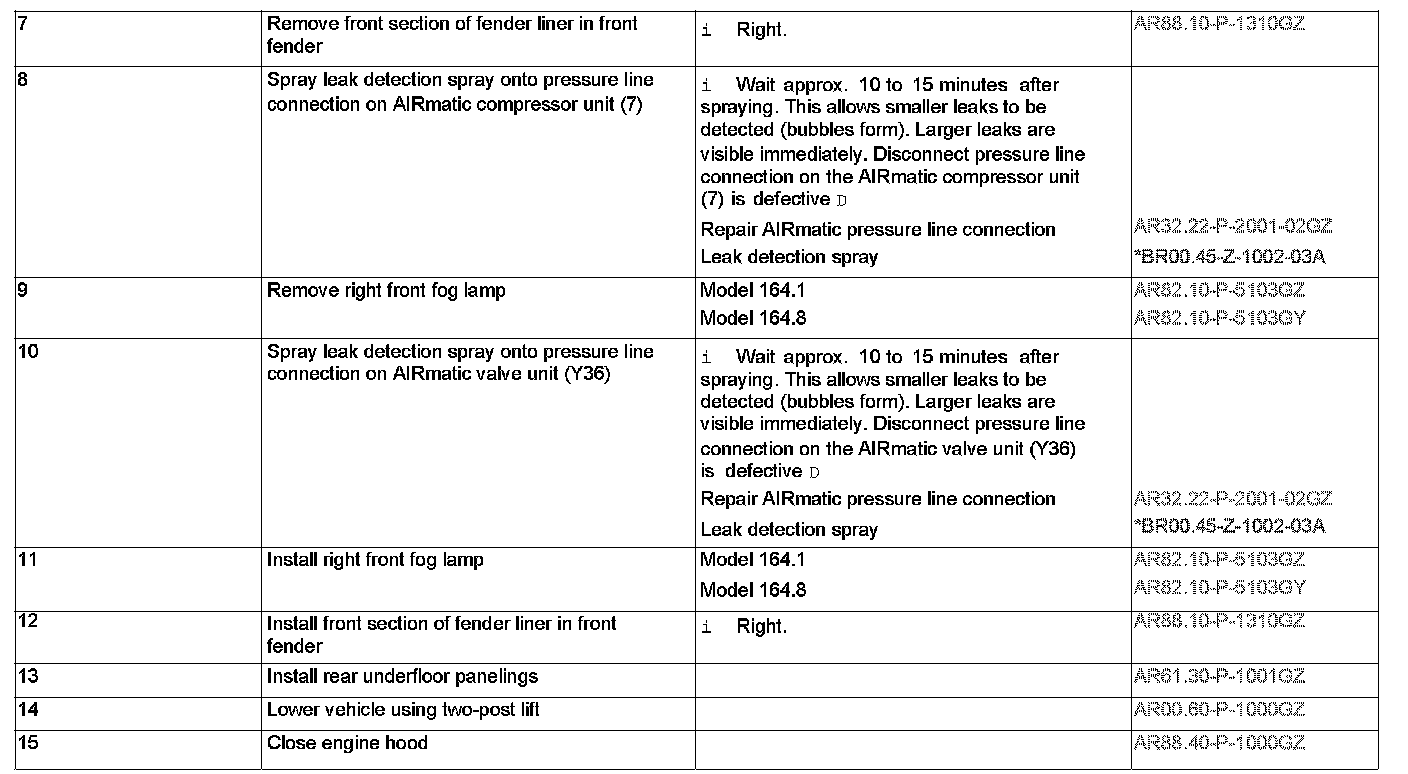

Remove/install Steps 7-15:

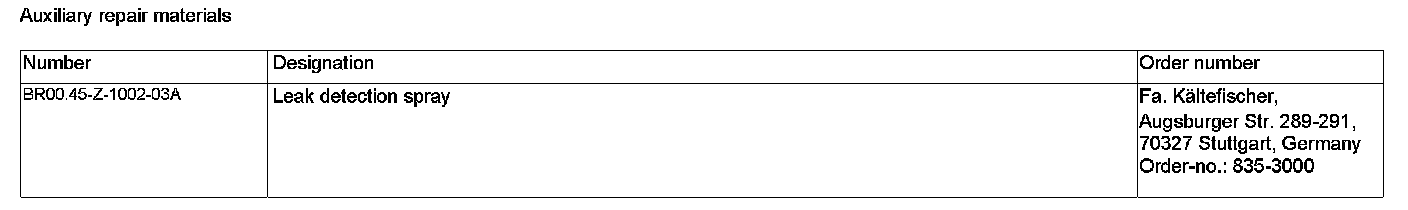

Auxiliary repair materials:
