Steering/Suspension - Squeak/Honk Noise From Front Axle

"Squeaking/honking noise" from area of front axle during strong suspension jounce or rebound.

Topic number L132.22-P-055559

Version 1

Design group 32.22 Air suspension

Date 02-11-2013

Validity 166 0## ## 011163 up to 166 0## ## 097930
166 8## ## 058389 up to 166 8## ## 098001
Only valid for vehicles with Airmatic suspension with ADS
(SA code 214)

Reason for change

Complaint:
"Squeaking/honking noise" from the front axle during strong suspension jounce or rebound, such as when driving over large road bumps or curbstones.

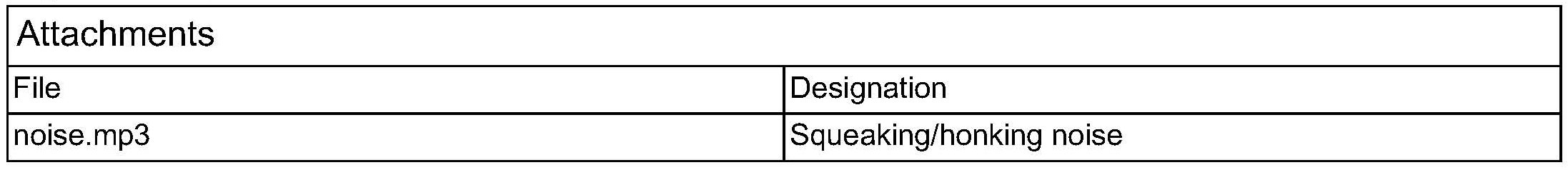

Attachments

Cause:
The noise is produced by the oil stream in the front axle damper flowing past the valve parts of the proportional valve (ADS module).

Remedy:
Replacement of suspension strut causing the noise.

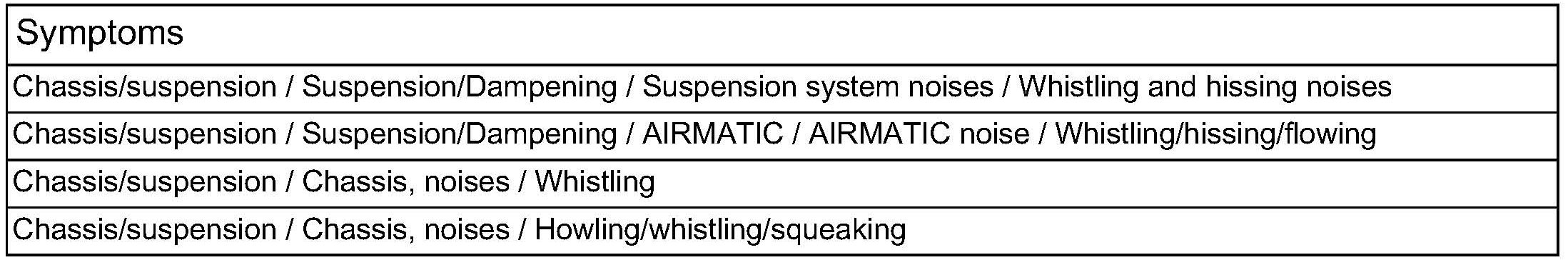

Symptoms

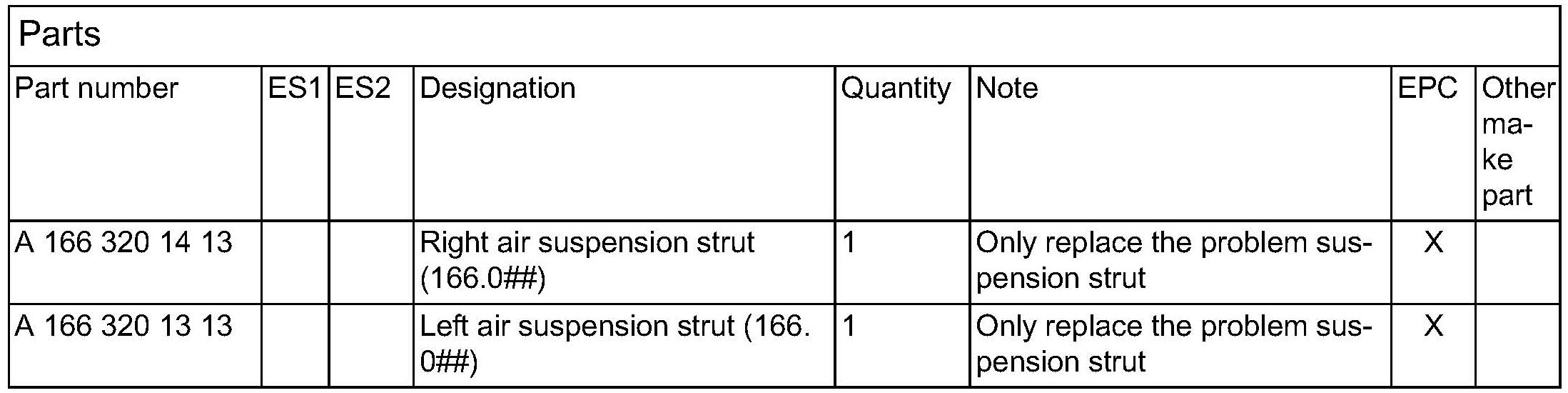

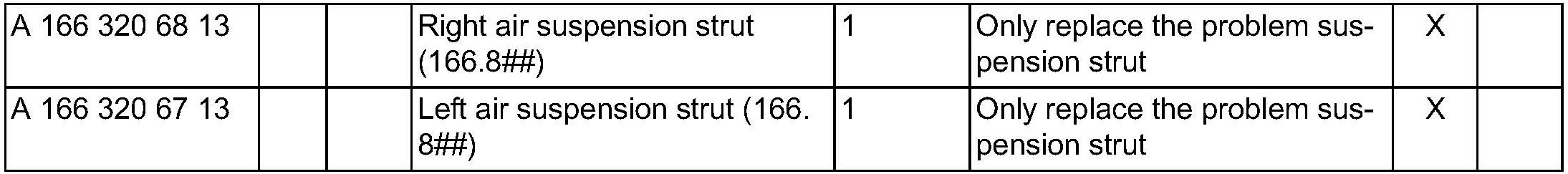

Parts

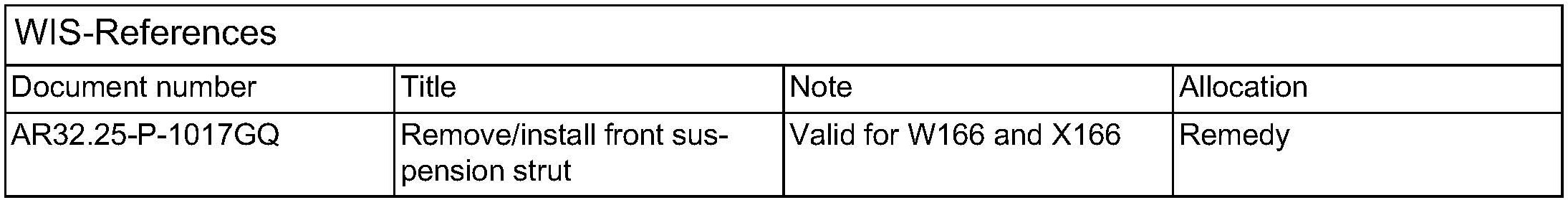

WIS-References
