AR32.34-P-5001GQ Remove/Install Active Roll Stabilization Control Unit

AR32.34-P-5001GQ Remove/Install Active Roll Stabilization Control Unit
MODEL 166
- with CODE (468) ACTIVE CURVE SYSTEM





Shows model 166.057

1 Expansion clip
2 Rear nozzle junction
3 Nut
4 Screw
5 Cover
6 Electrical connector

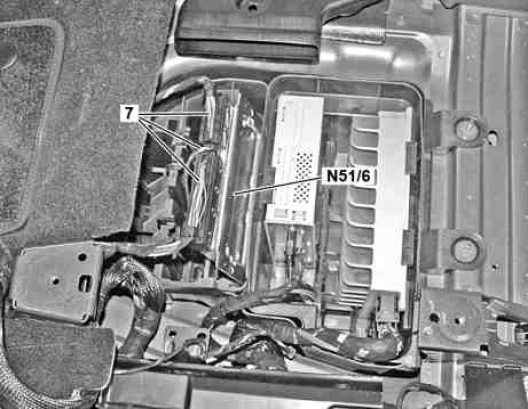

Shows model 166.057

7 Electrical connector

N51/6 Active roll stabilization control unit
