Level Control Solenoid Valve: Service and Repair

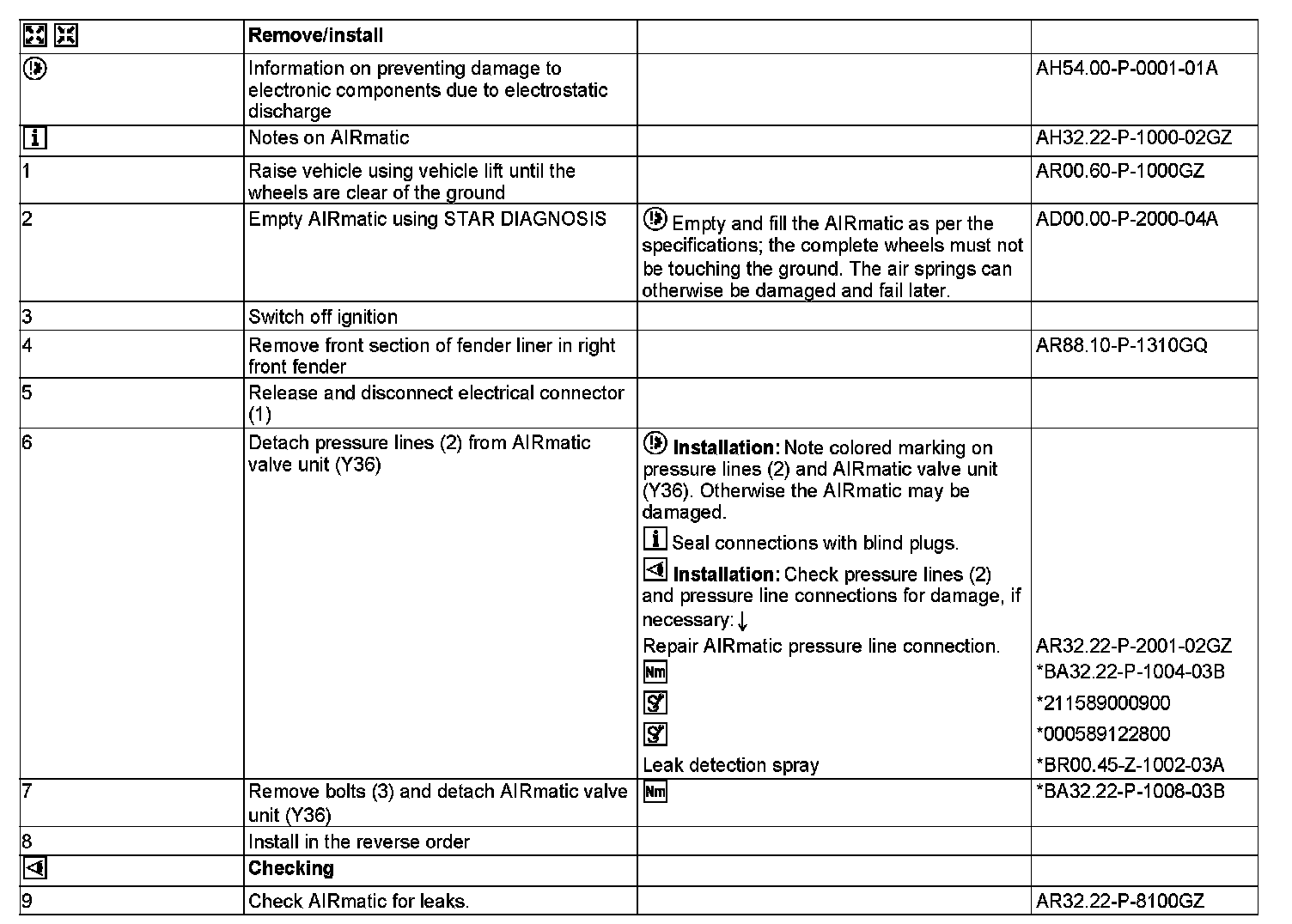

AR32.31-P-0650GQ Remove/Install Level Control Valve Unit
MODEL 166
- with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system (ADS))

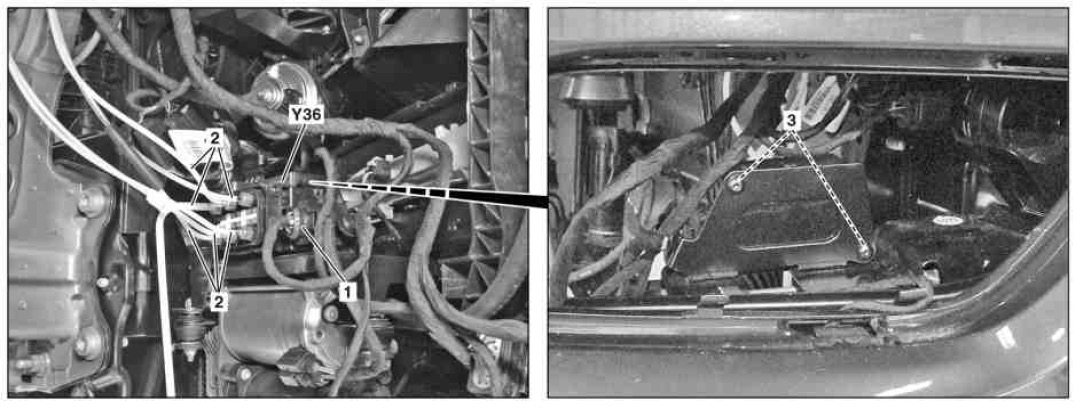

1 Electrical connector
2 Pressure line
3 Screw
Y36 Airmatic valve unit











000 589 12 28 00
Slitting knife





211 589 00 09 00
Wrench socket
