AR32.22-P-2011TX Replace Rubber Mount For Compressor



AR32.22-P-2011TX Replace rubber mount for compressor
- with CODE (489) Airmatic (semi-active air suspension)

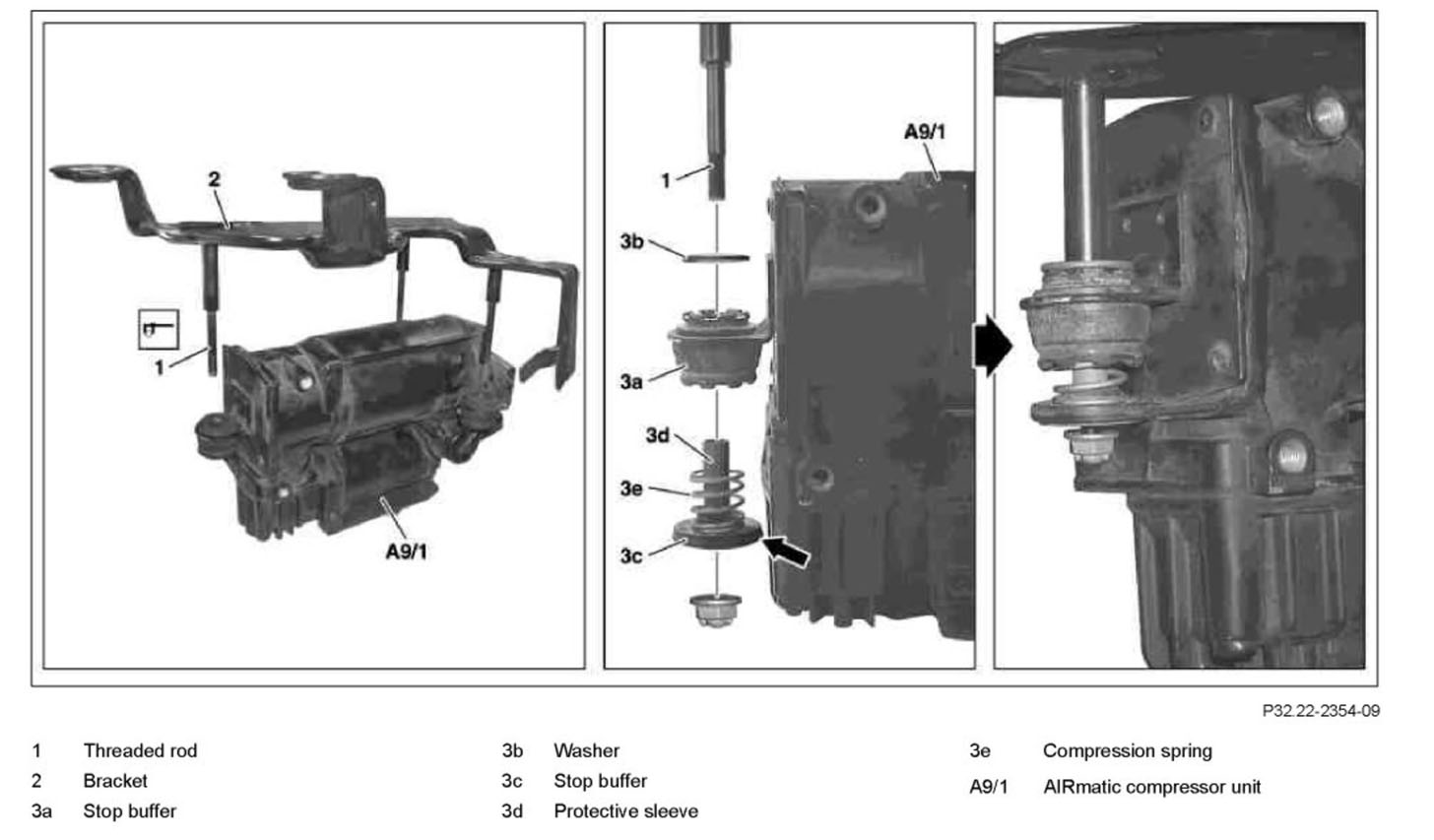

Component Identification:

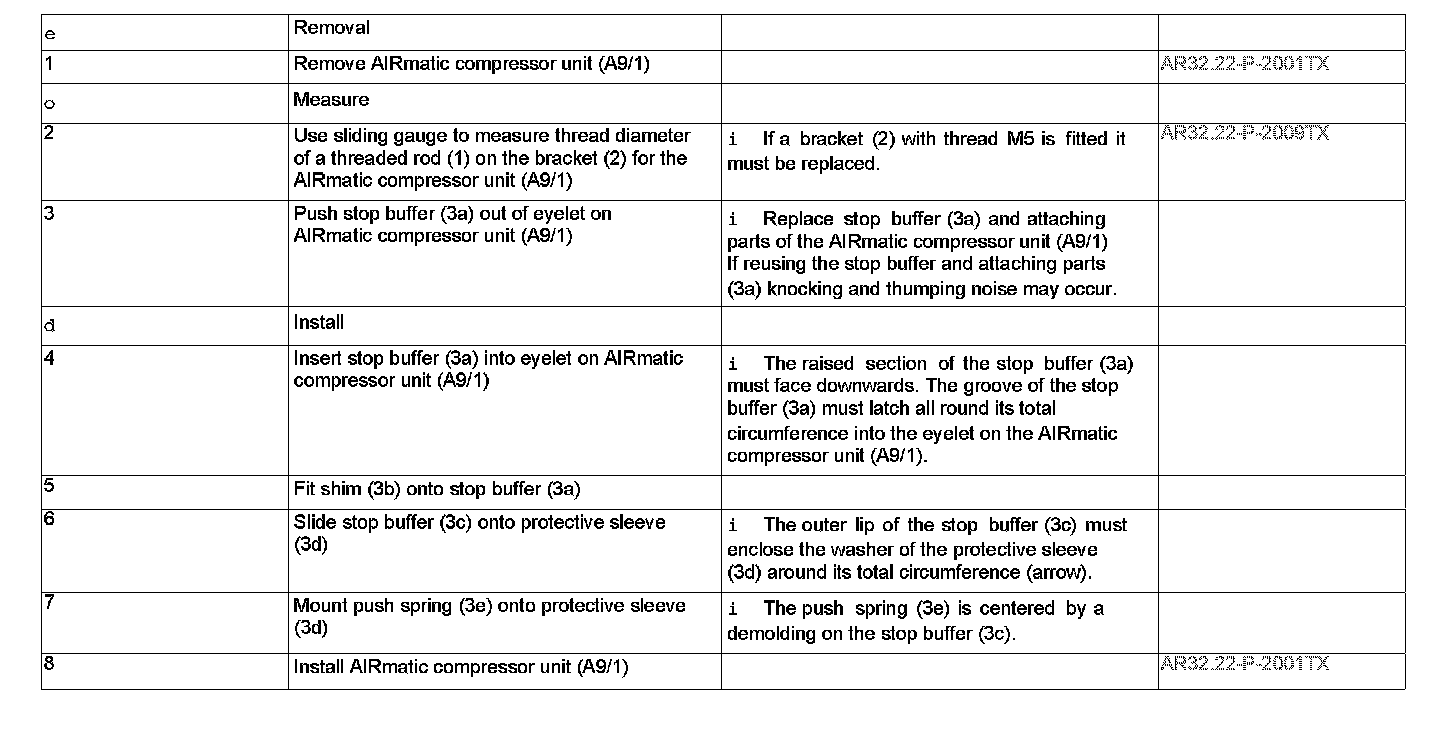

Steps 1-8:
