AR32.22-P-2001GZ Remove/Install Compressor

AR32.22-P-2001GZ Remove/Install Compressor
MODEL 164, 166
- with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system (ADS))

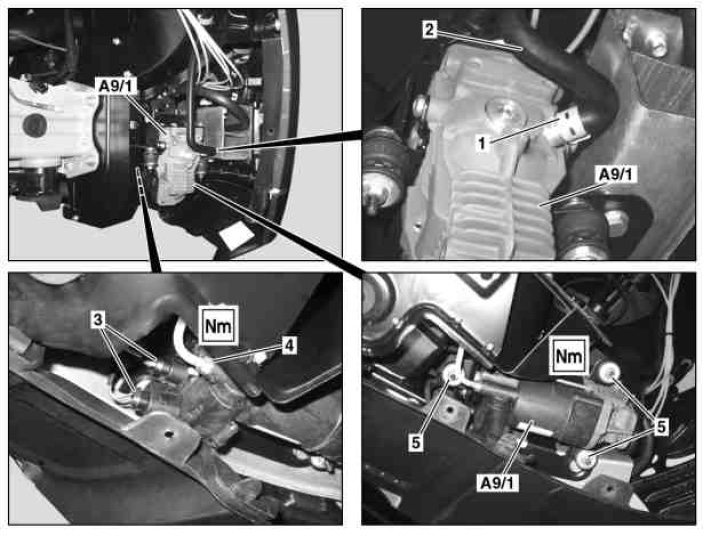

Shows model 164

1 Clip
2 Intake hose
3 Electrical connector
4 Pressure line
5 Nut

A9/1 Airmatic compressor unit














000 589 12 28 00
Slitting knife





211 589 00 09 00
Wrench socket
