Air Spring: Service and Repair

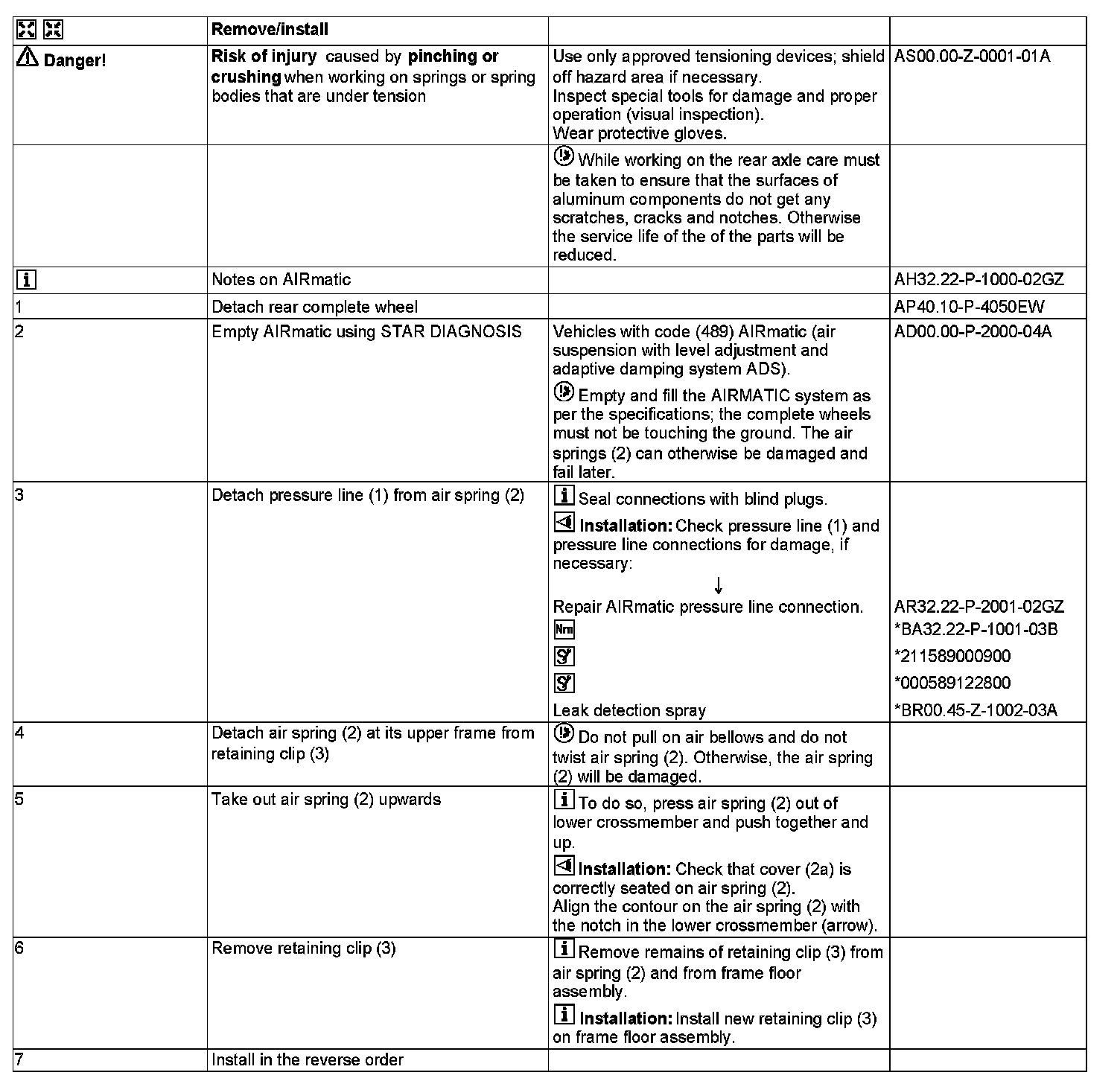

AR32.22-P-1500GQ Remove/Install Air Spring
MODEL 166
- with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system (ADS))

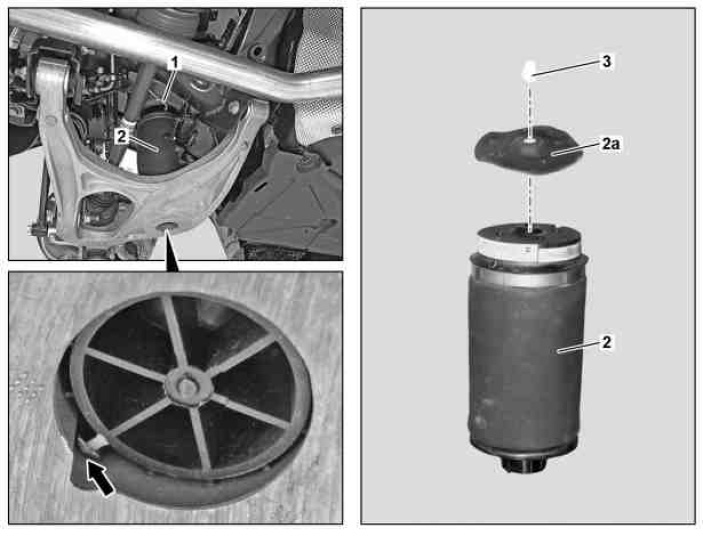

1 Pressure line
2 Air spring
2a Cover
3 Retaining clip











000 589 12 28 00
Slitting knife





211 589 00 09 00
Wrench socket
