Accumulator: Service and Repair

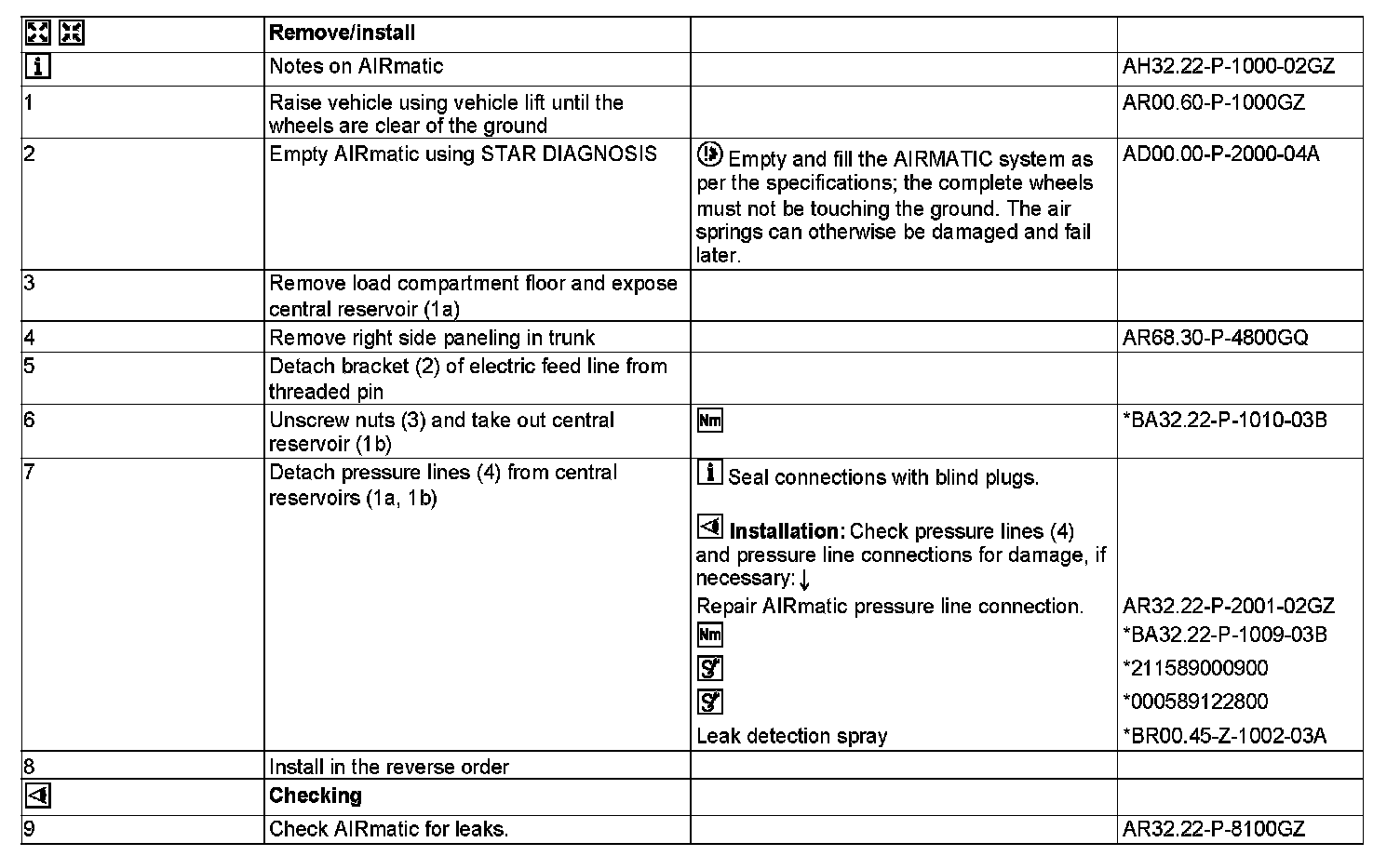

AR32.22-P-2017GQ Remove/Install Airmatic Central Reservoir
MODEL 166
- with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system (ADS))

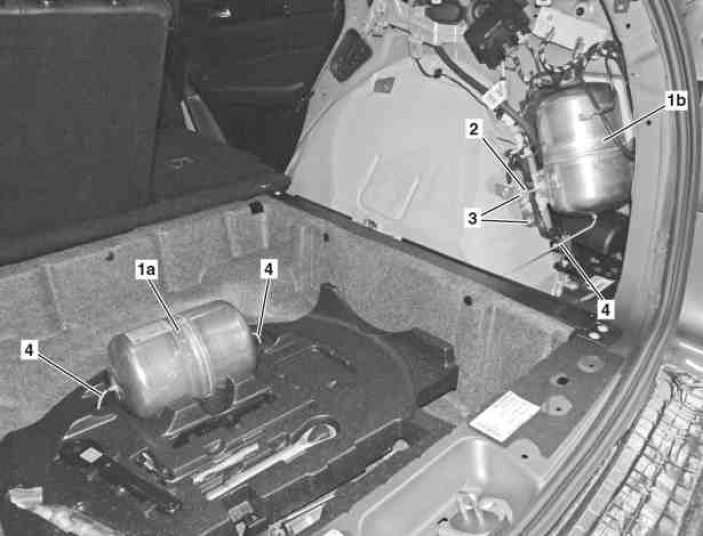

1a, 1b Central reservoir
2 Bracket
3 Nut
4 Pressure line











000 589 12 28 00
Slitting knife





211 589 00 09 00
Wrench socket
