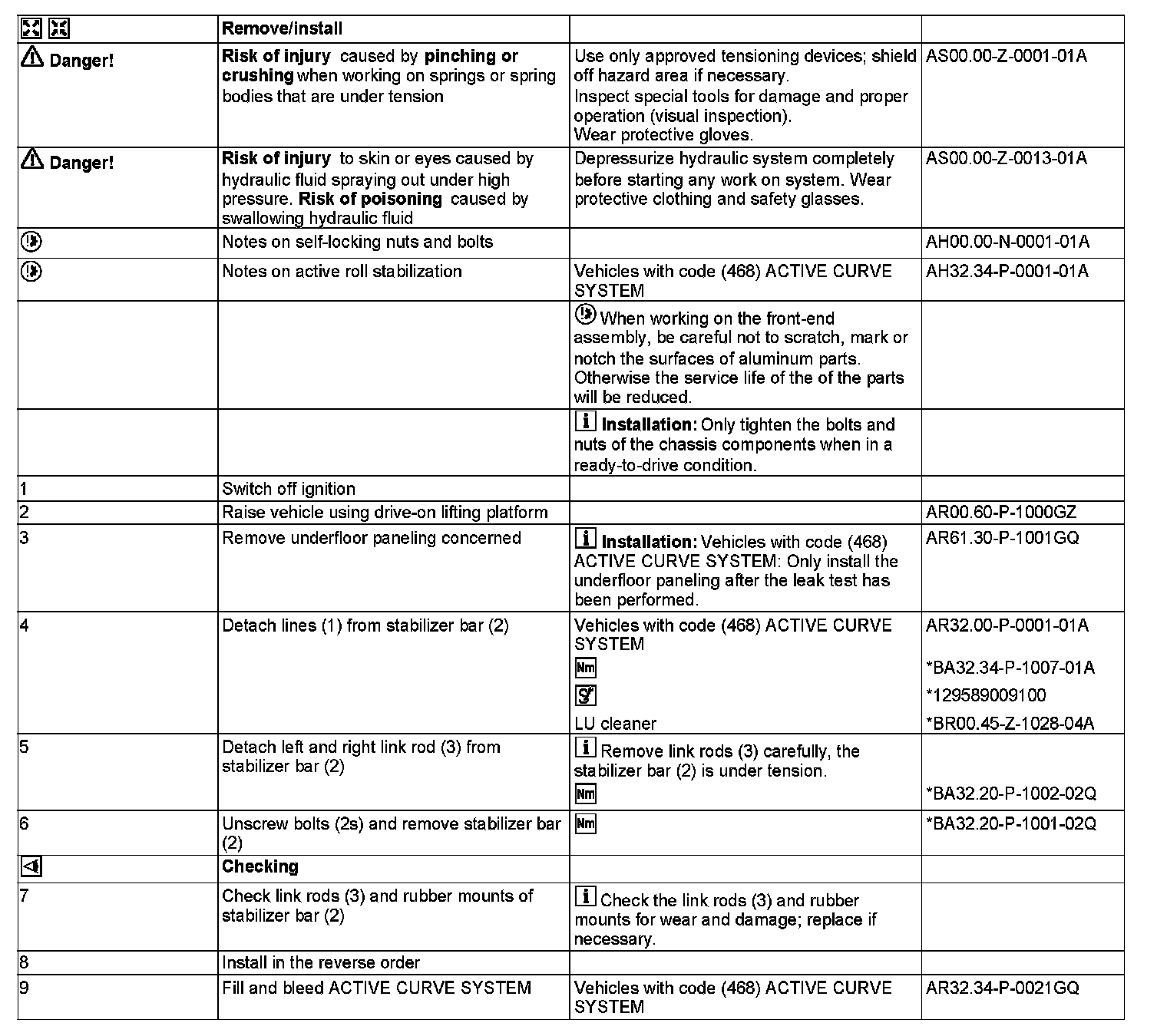

AR32.20-P-0300GQ Remove/Install Stabilizer Bar on Front Axle
AR32.20-P-0300GQ Remove/Install Stabilizer Bar on Front Axle
AR32.20-P-0300GQ Remove/Install
Stabilizer Bar
On Front Axle
MODEL 166

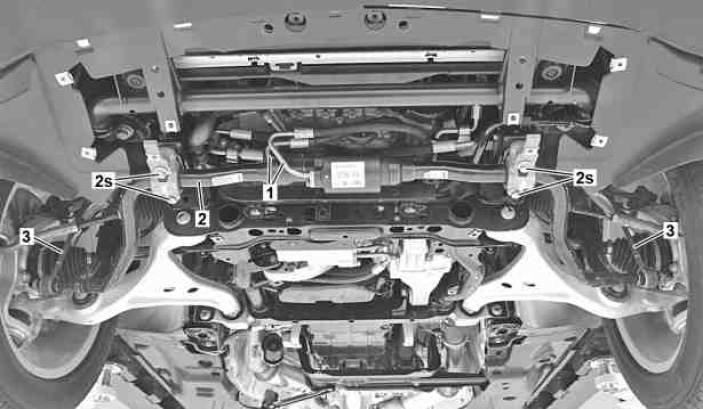

1 Cable
2
Stabilizer bar
2s Screw
3 Link rod
129 589 00 91 00
Set of stop plugs
