Rear Knuckle Alignment Link: Service and Repair
AR35.20-P-0109GZ Remove/install track rod

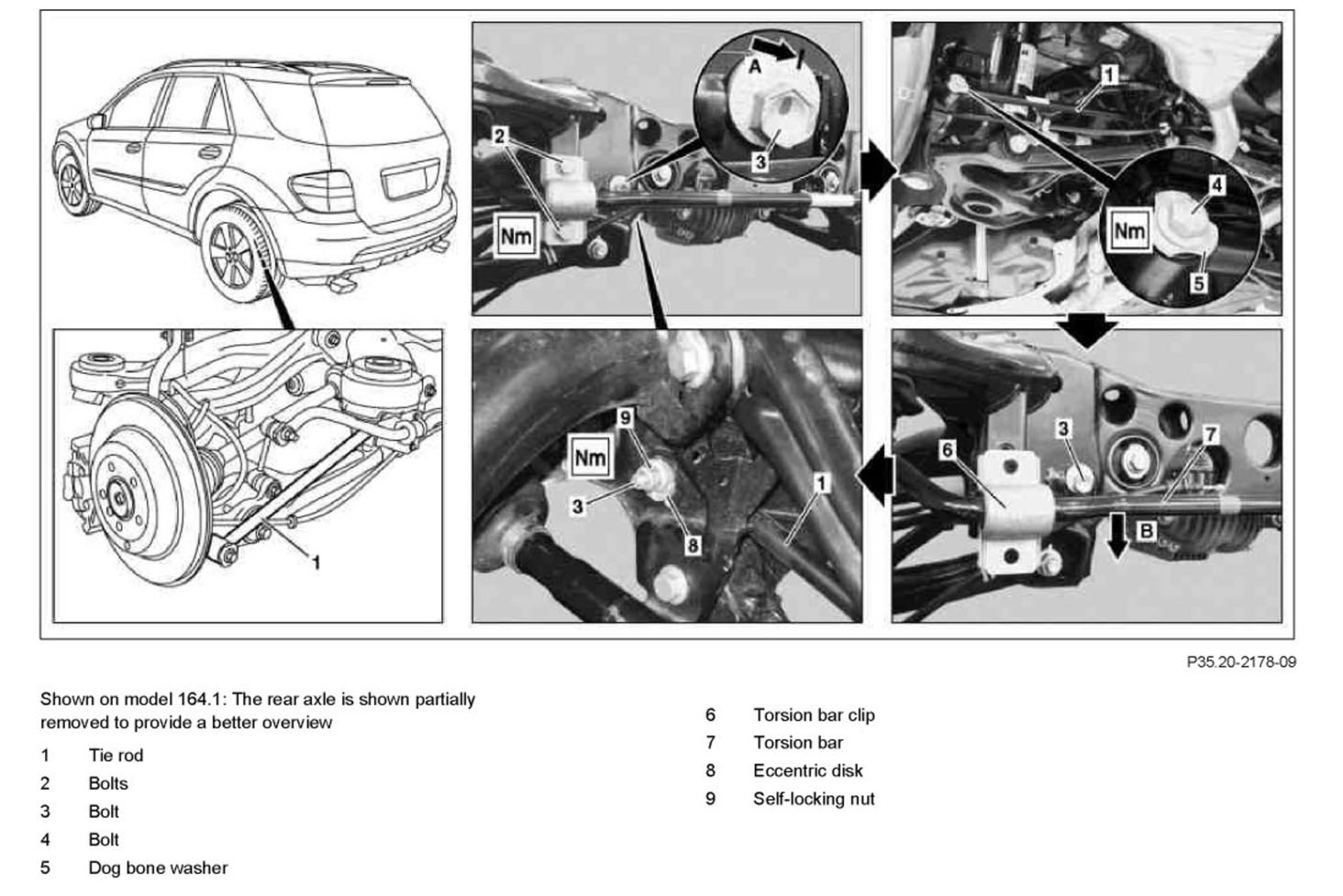

Component Identification:
Component Identification:

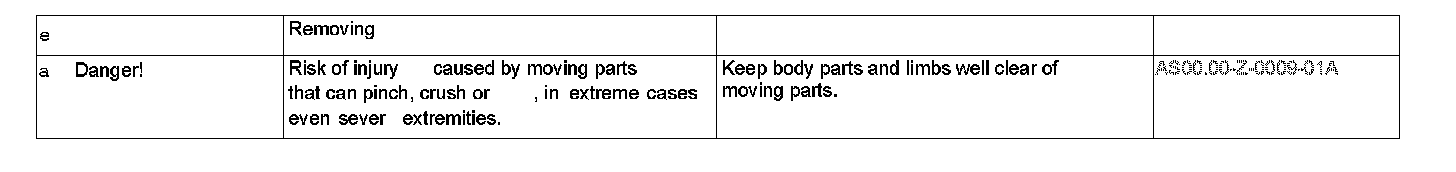

Removing:

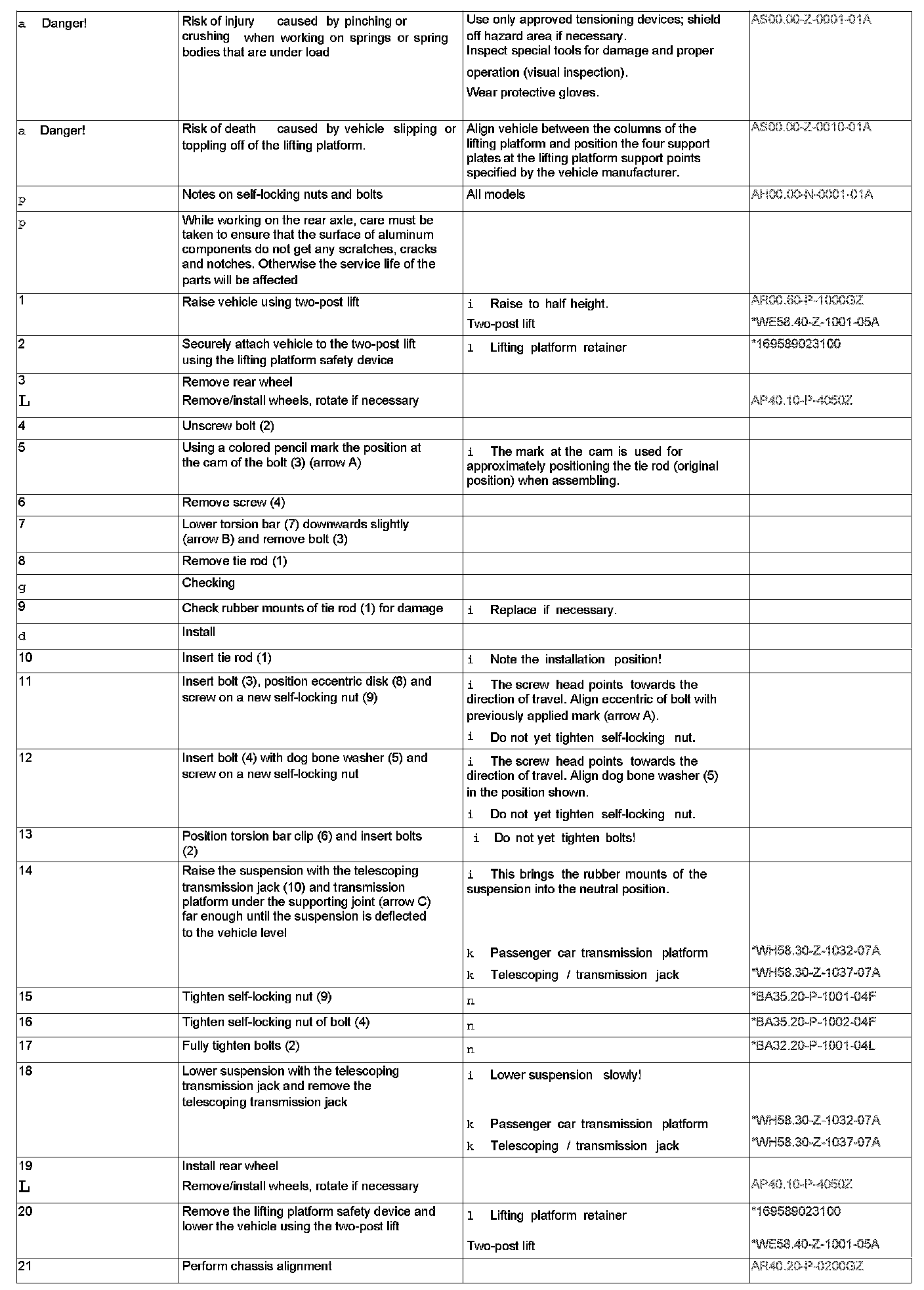

Steps 1-21:

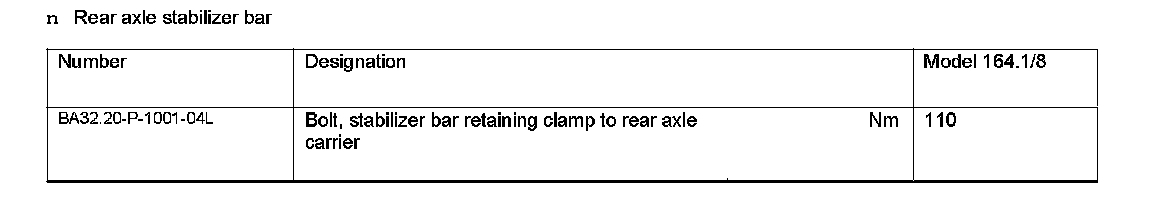

Rear axle stabilizer bar:

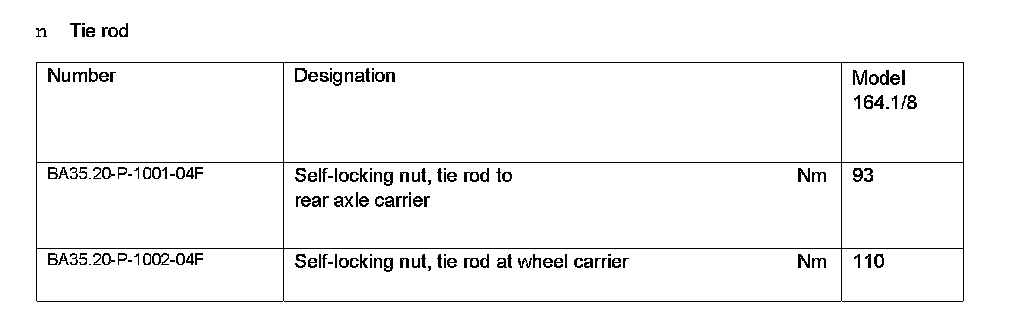

Tie Rod:

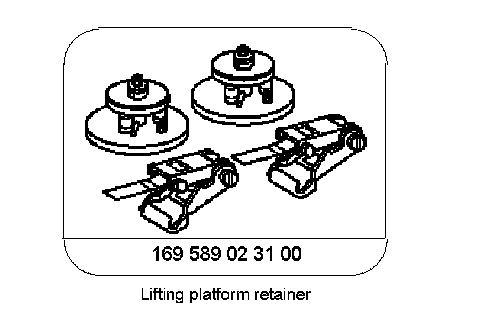

Special Tools:

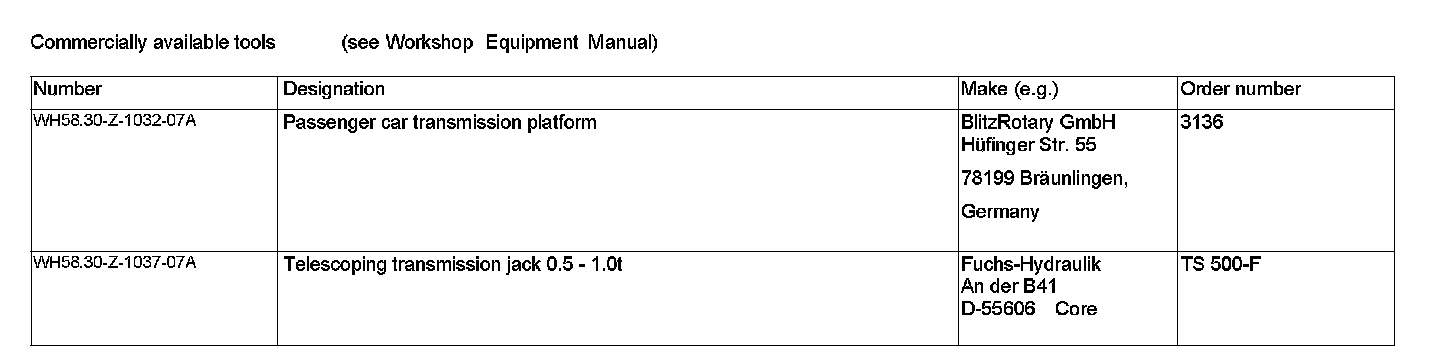

Commercially available tools:

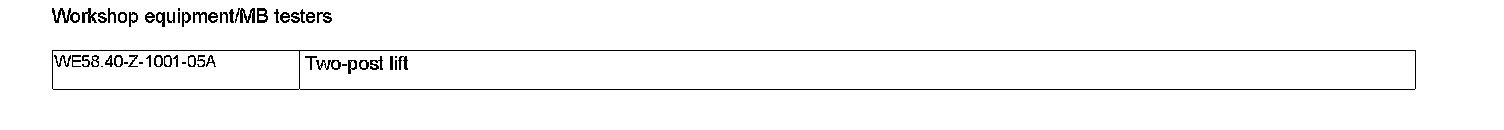

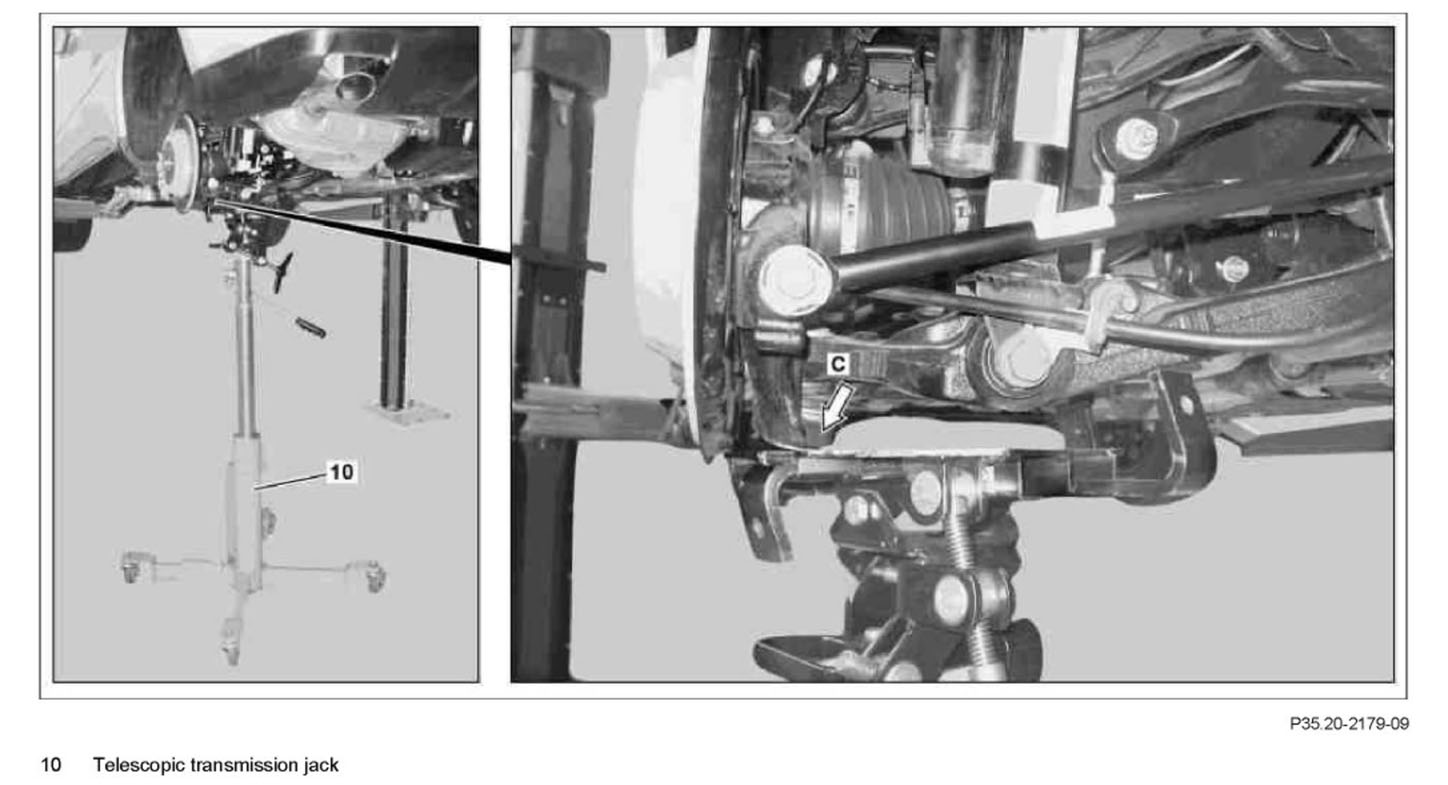

Workshop equipment/MB testers:
