Radius Arm: Service and Repair
AR35.20-P-0111GZ Remove/install radius rod

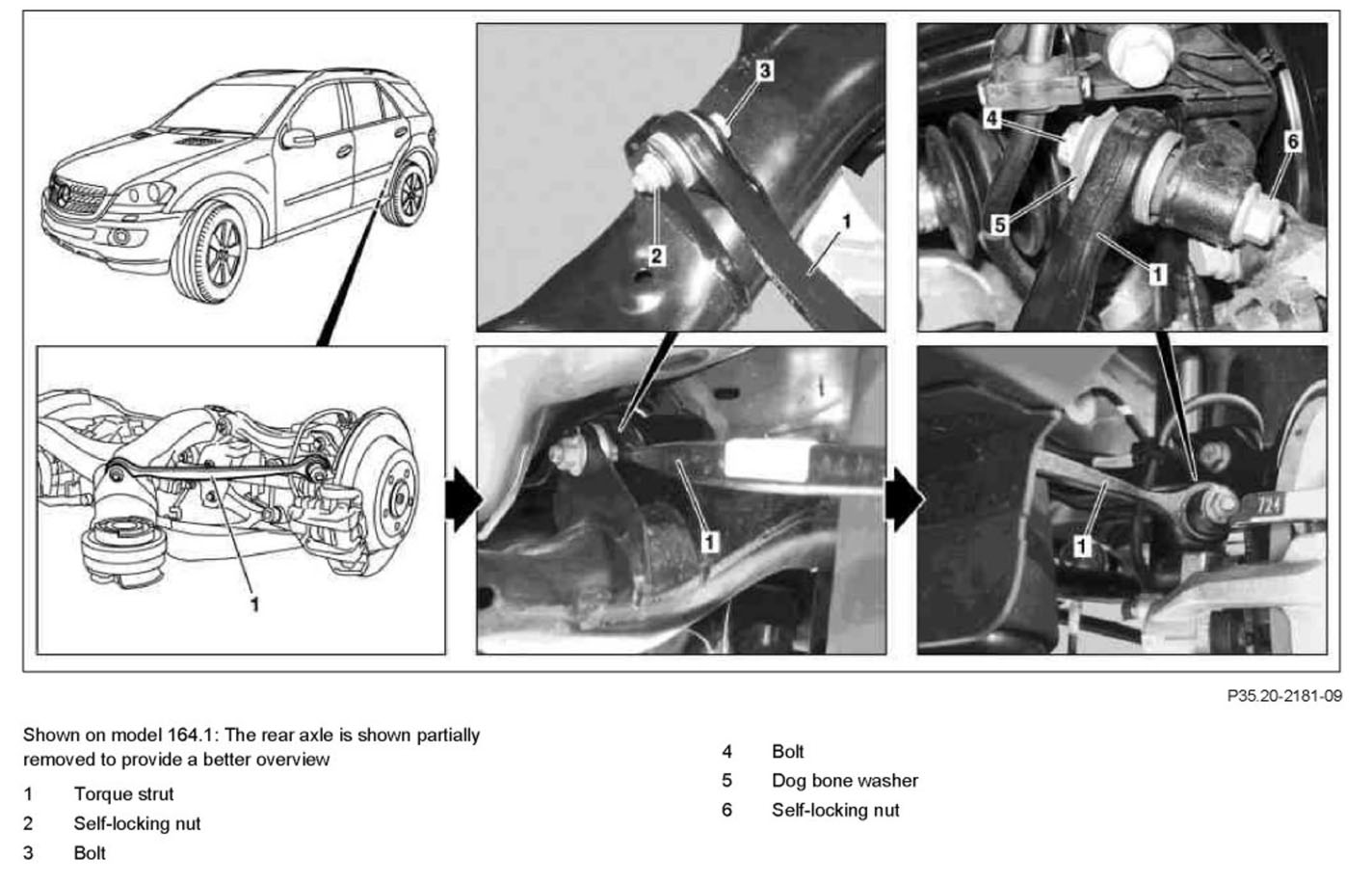

Component Identification:
Component Identification:

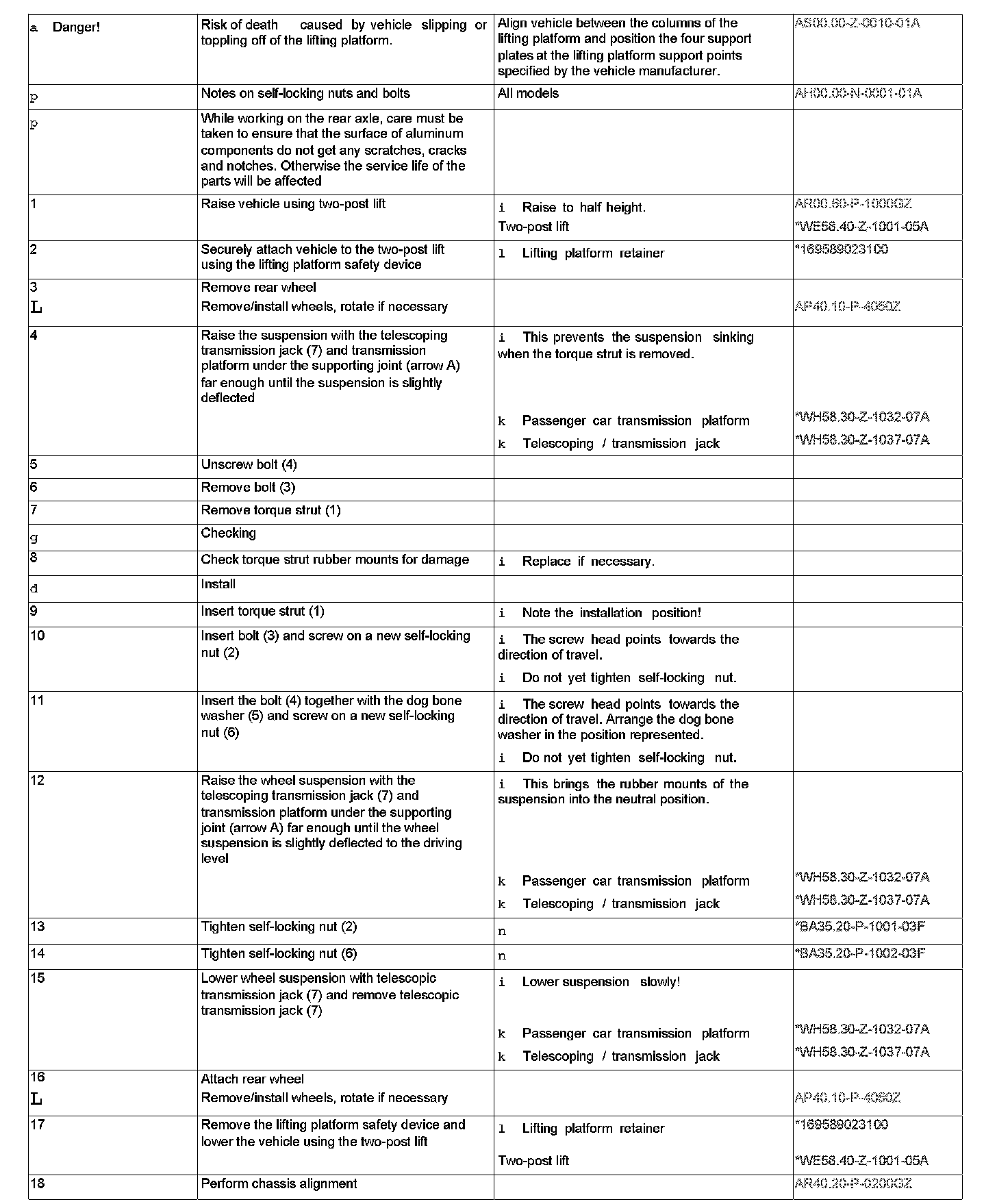

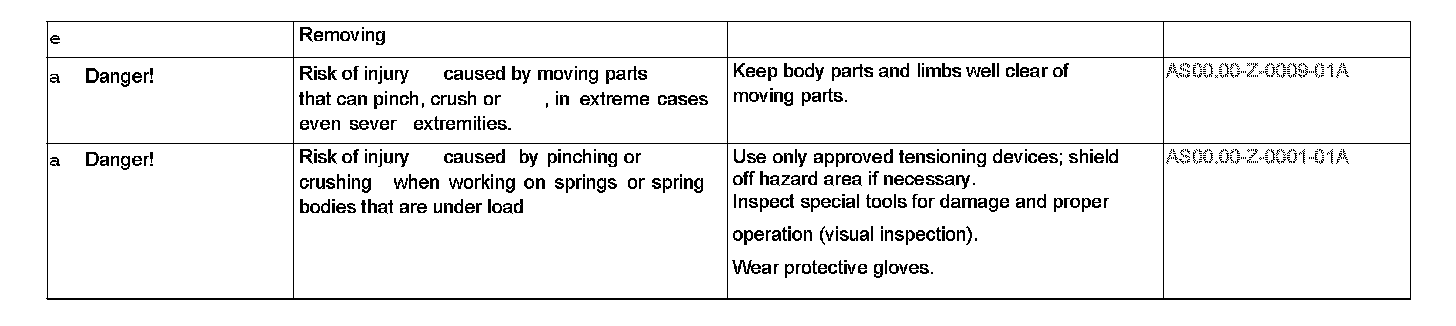

Removing:
Steps 1-18:

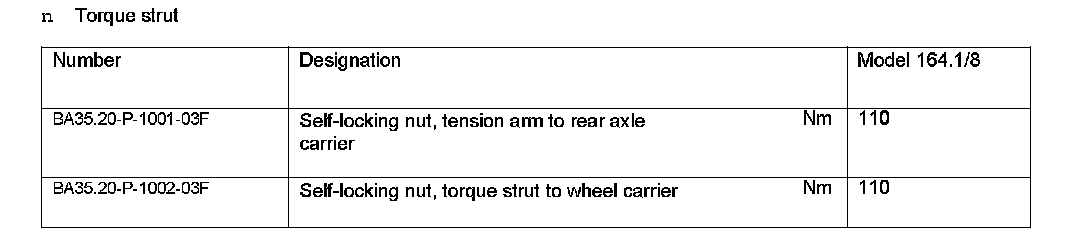

Torque Strut:

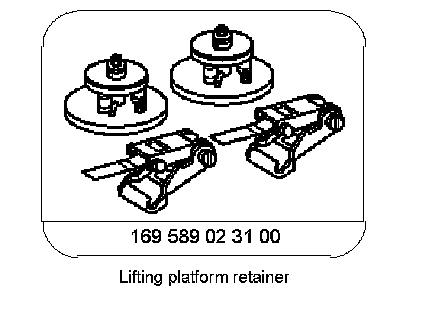

Special Tools:

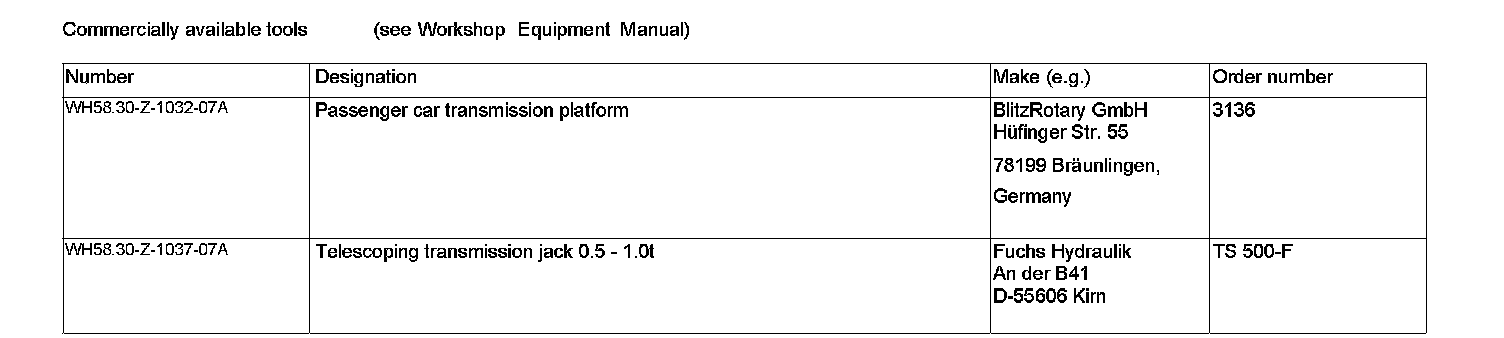

Commercially available tools:

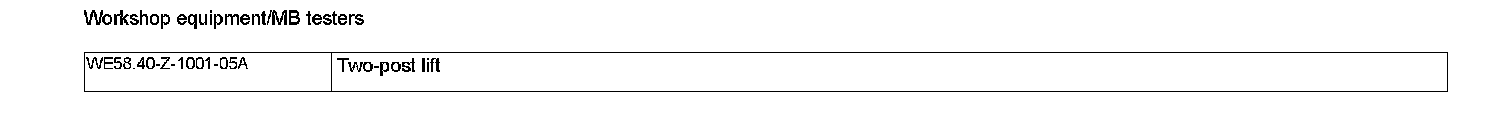

Workshop equipment/MB testers:
AR35.20-P-0111GZ Remove/install radius rod
