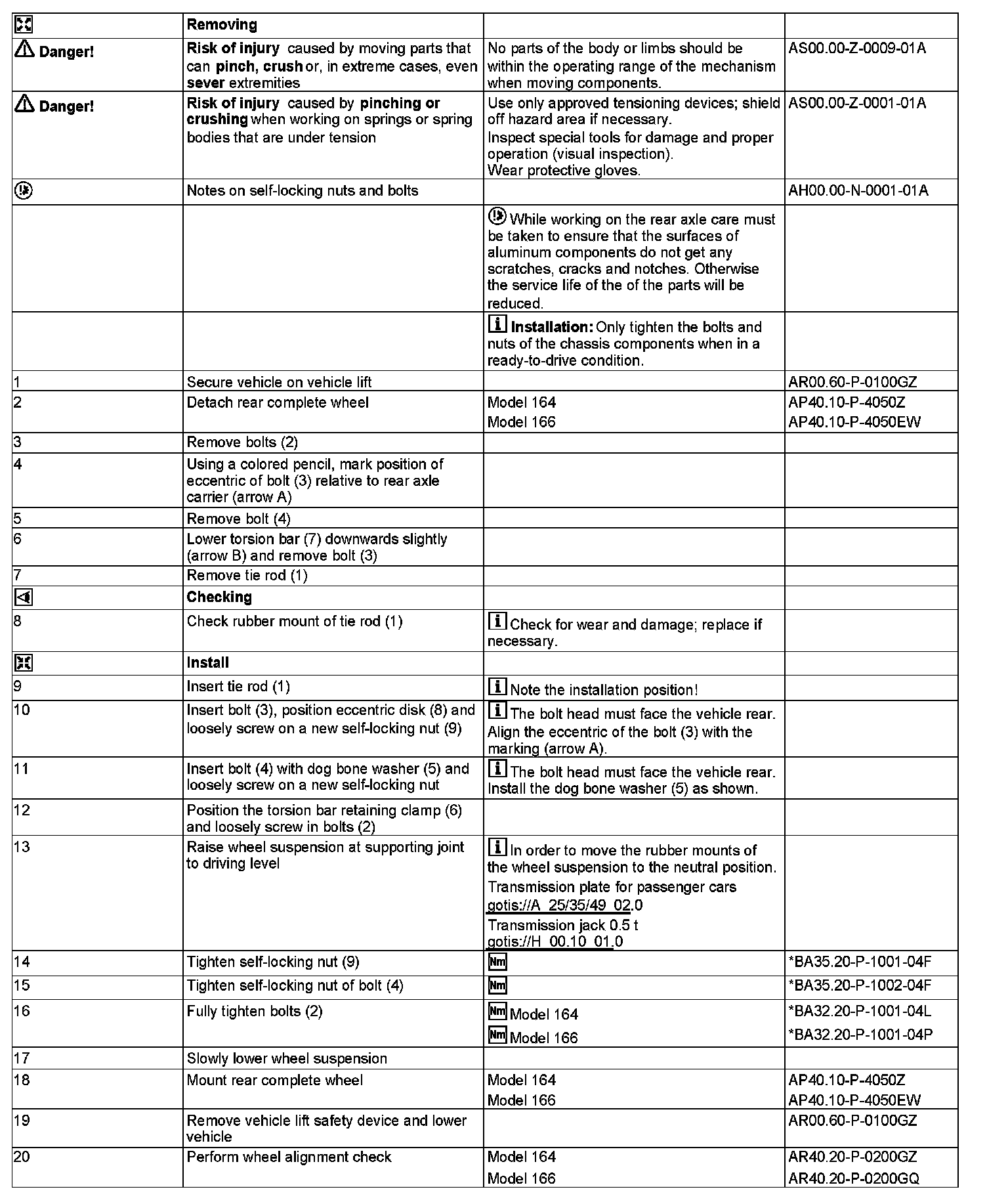

AR35.20-P-0109GZ Remove/Install Track Rod

AR35.20-P-0109GZ Remove/Install Track Rod
MODEL 164, 166

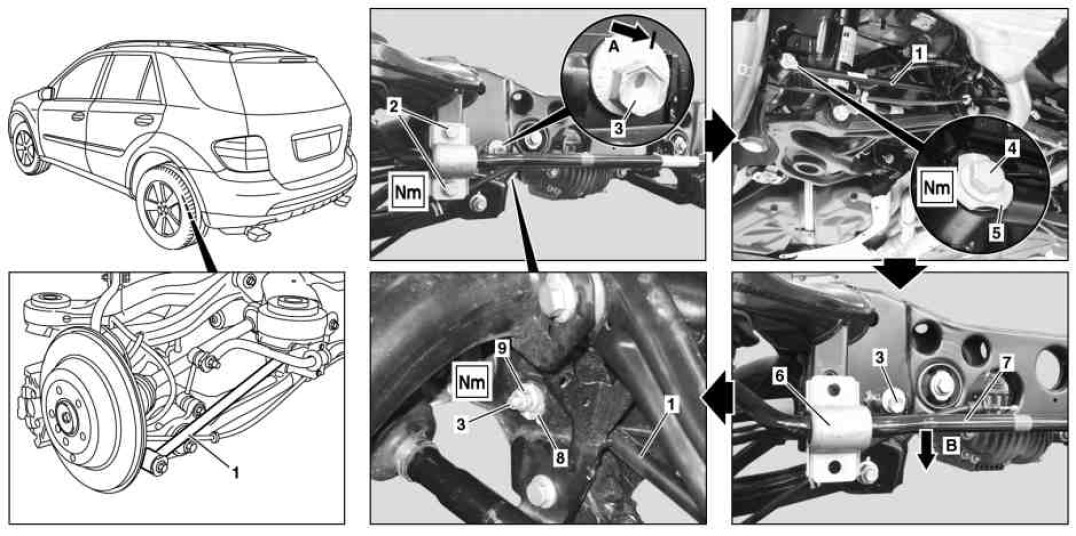

Shown on model 164.1

1 Tie rod
2 Screw
3 Screw
4 Screw
5 Dog bone washer
6 Torsion bar clip
7 Stabilizer bar
8 Eccentric disk
9 Self-locking nut
