AR33.20-P-0400GQ Remove/Install Rubber Mounts of Transverse Control Arms

AR33.20-P-0400GQ Remove/Install Rubber Mounts Of Transverse Control Arms
MODEL 166

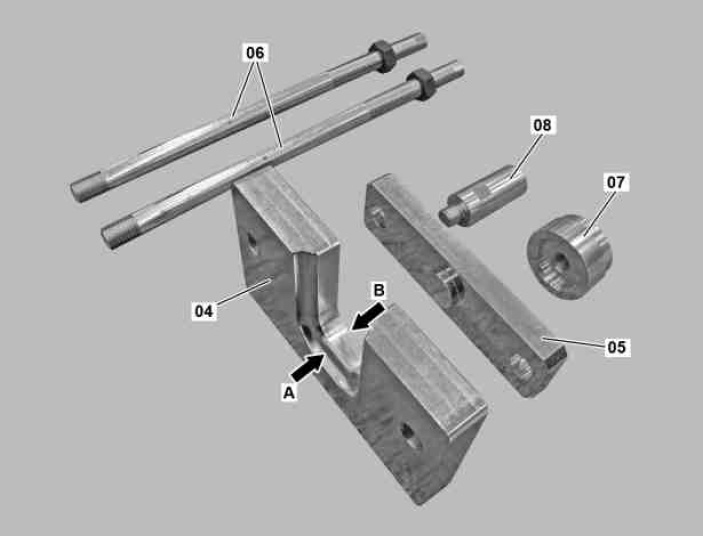

Lower control arm, rear bearing

04 Plate (166 589 00 43 01)
05 Plate (166 589 00 43 05)
06 Threaded rods (166 589 00 43 06)
07 Thrust piece
08 Pin

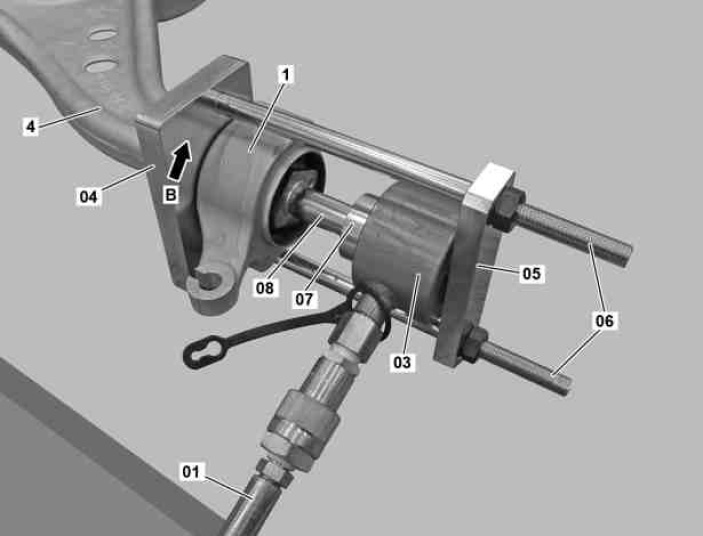

Detach, shown on right lower control arm (4)

01 Hydraulic hose
03 Hollow piston cylinder
04 Plate
05 Plate
06 Threaded rods
07 Thrust piece
08 Pin
1 Rubber bushing
4 Lower transverse control arm





Install, shown on right lower control arm (4)

01 Hydraulic hose
03 Hollow piston cylinder
04 Plate
05 Plate
06 Threaded rods
07 Thrust piece
1 Rubber bushing
2 Bore
3 Web
4 Lower transverse control arm
5 Sleeve








652 589 00 33 21
Hand pump





652 589 00 33 23
Hydraulic hose (complete)





001 589 51 33 00
Hollow piston cylinder





164 589 04 43 00
Extraction and insertion tool
