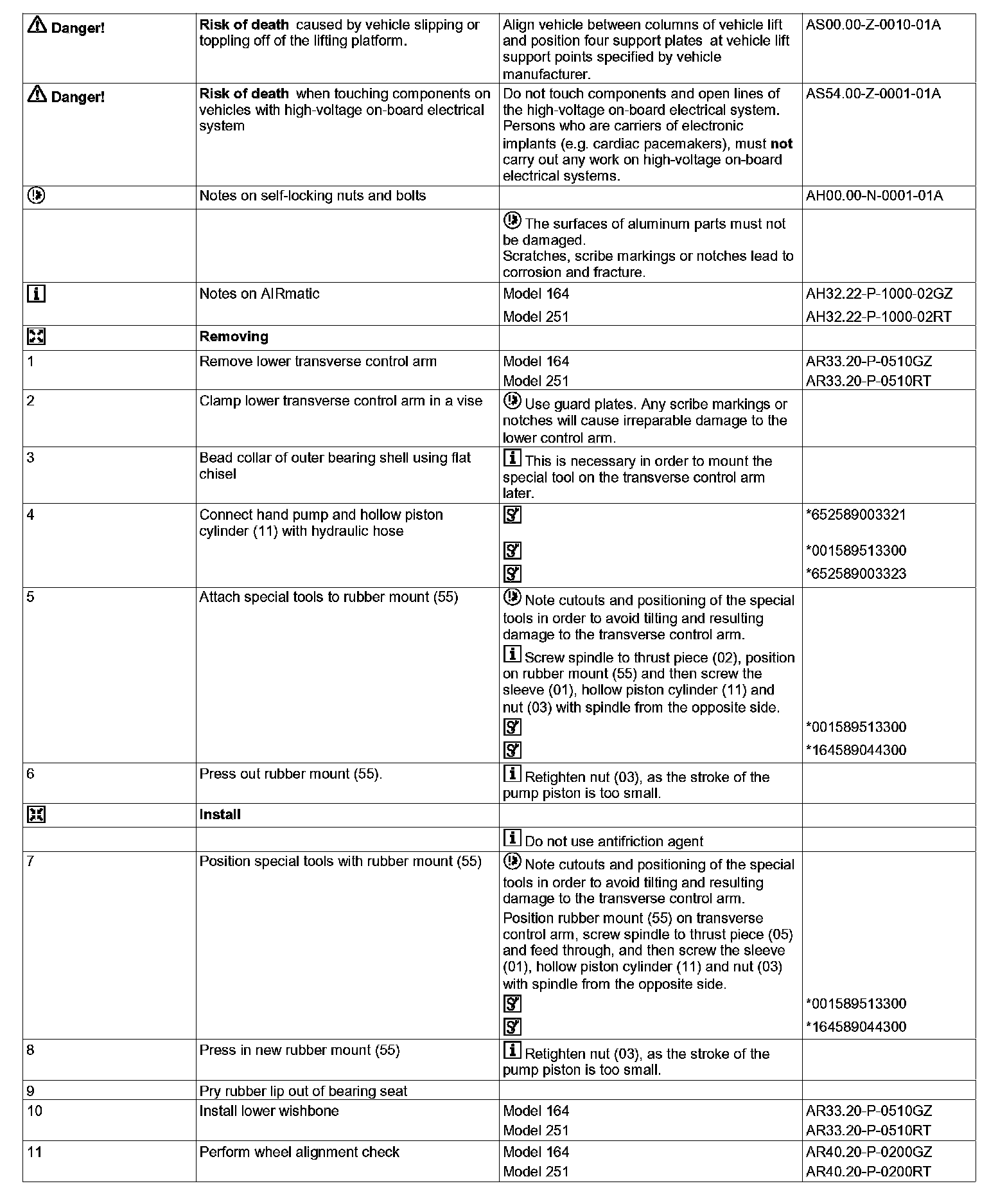

AR33.20-P-0400GZU Remove/Install Rubber Mounts of Transverse Control Arms

AR33.20-P-0400GZU Remove/Install Rubber Mounts of Transverse Control Arms
- MODEL 164, 251

Lower transverse control arm, front mount





Press out

01 Sleeve
02 Thrust piece
03 Nut
11 Hollow piston cylinder
55 Rubber bushing

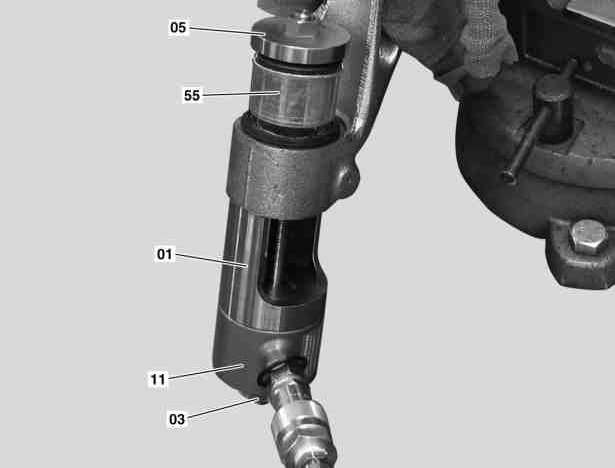

Pressing in

01 Sleeve
03 Nut
05 Thrust piece
11 Hollow piston cylinder
55 Rubber bushing









652 589 00 33 21
Hand pump





652 589 00 33 23
Hydraulic hose (complete)





001 589 51 33 00
Hollow piston cylinder





164 589 04 43 00
Extraction and insertion tool
