AR33.20-P-0400GZO Remove/Install Rubber Mounts of Transverse Control Arms

AR33.20-P-0400GZO Remove/Install Rubber Mounts of Transverse Control Arms
- MODEL 164, 251

Upper transverse control arm

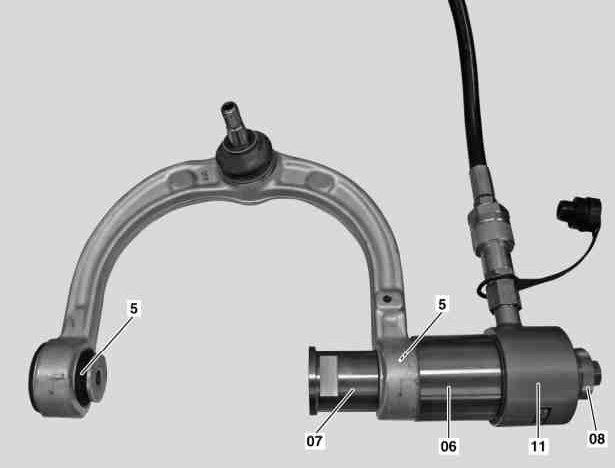

Press out

5 Rubber bushing
06 Sleeve
07 Thrust piece
08 Nut
11 Hollow piston cylinder

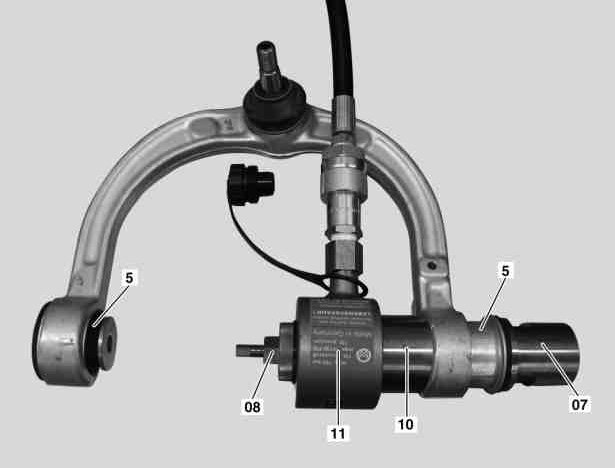

Pressing in

5 Rubber bushing
07 Thrust piece
08 Nut
10 Sleeve
11 Hollow piston cylinder









652 589 00 33 21
Hand pump





652 589 00 33 23
Hydraulic hose (complete)





001 589 51 33 00
Hollow piston cylinder





164 589 04 43 00
Extraction and insertion tool
