AR33.20-P-0426GZ Checking Follower Joint of Steering Knuckle Mount (Installed)
AR33.20-P-0426GZ Checking Follower Joint of Steering Knuckle Mount (Installed)
AR33.20-P-0426GZ Checking follower joint of
steering
knuckle mount (installed)

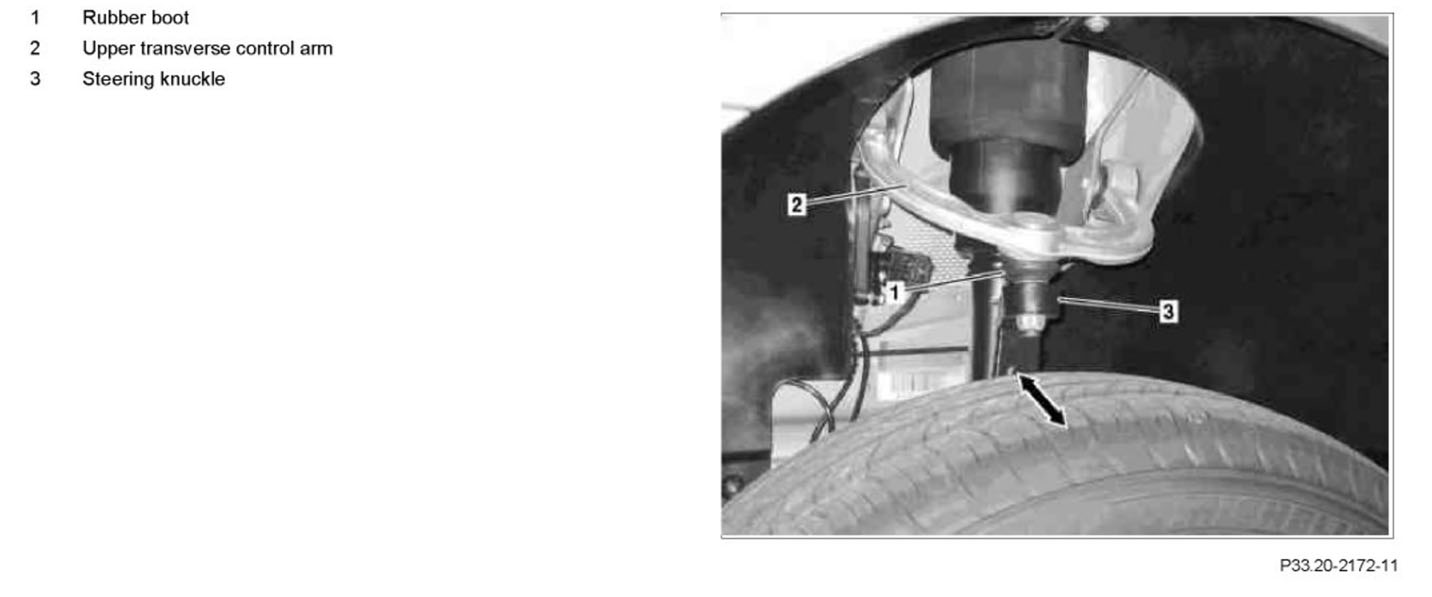

Component Identification:

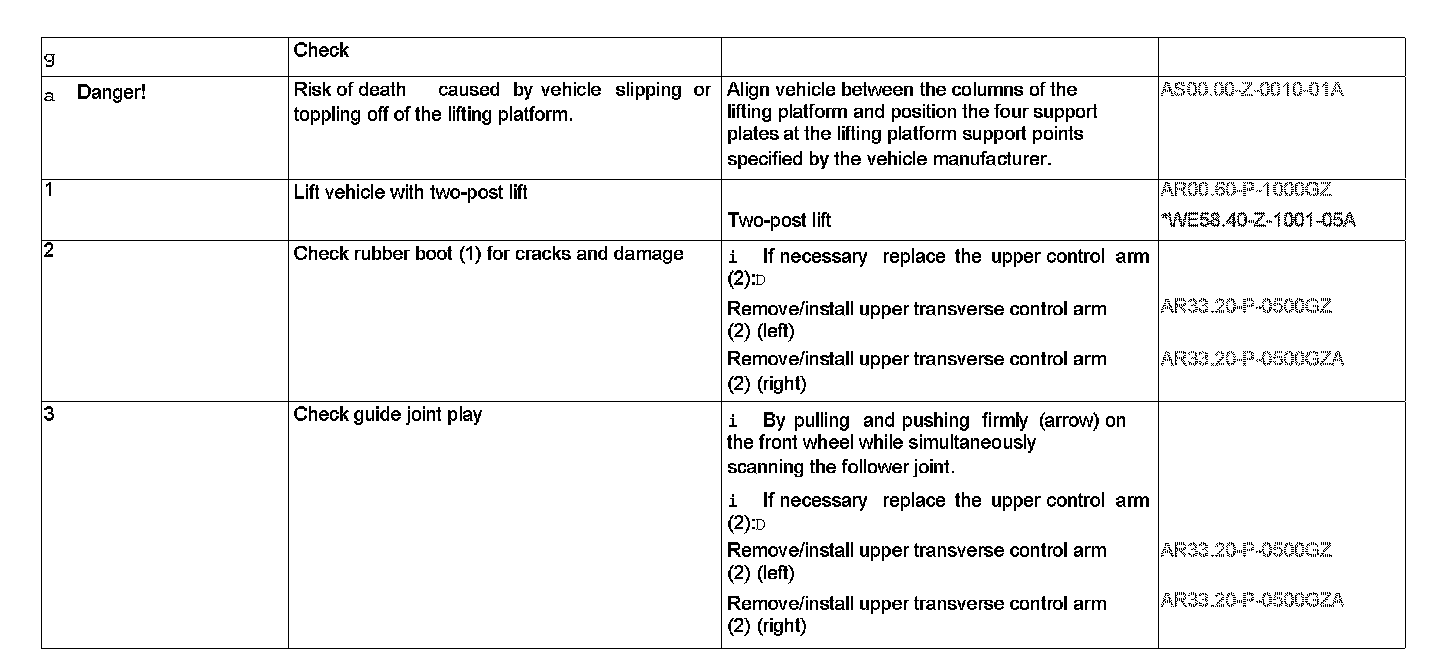

Steps 1-3:

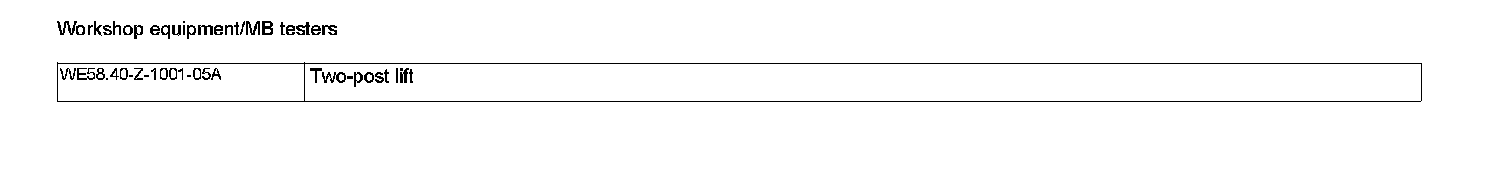

Workshop equipment/MB testers:
