AR35.20-P-0117GZ Remove/Install Supporting Joint On Wheel Carrier (Wheel Carrier Removed)



AR35.20-P-0117GZ Remove/install supporting joint on wheel carrier (wheel carrier removed)

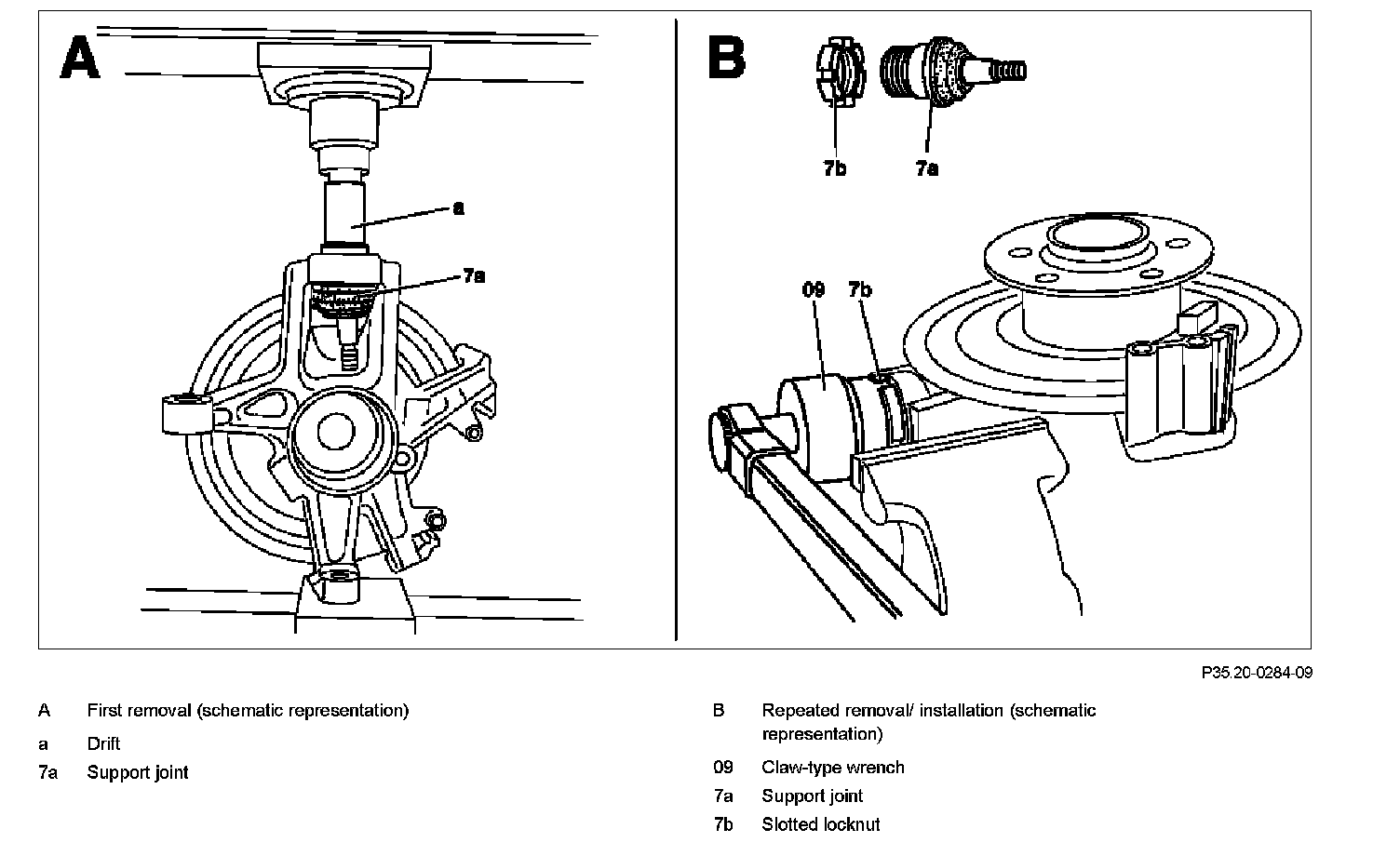

Component Identification:

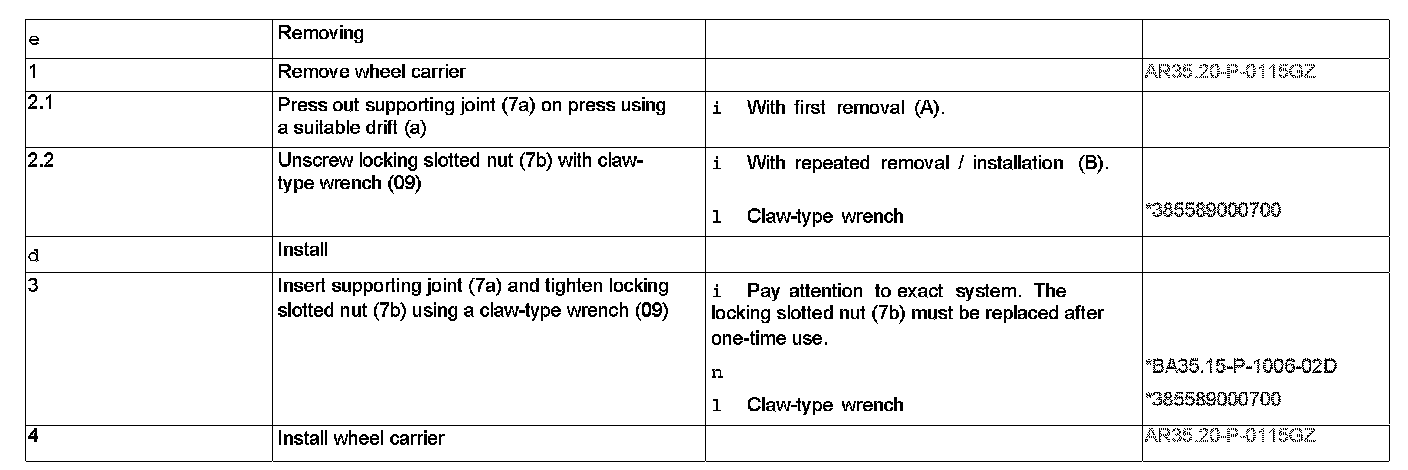

Steps 1-4:

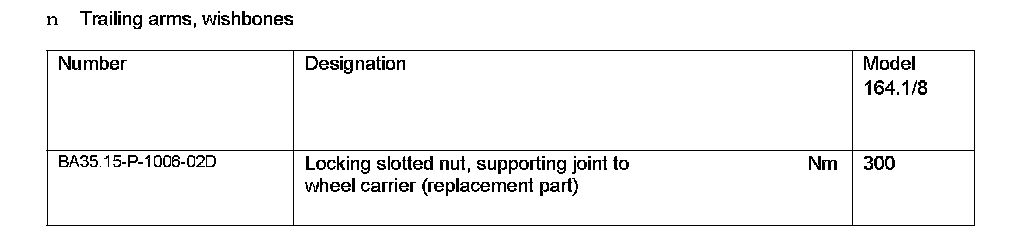

Trailing arms, wishbones:

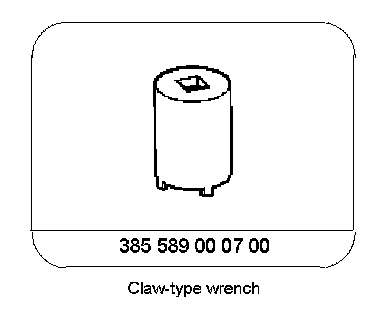

Special Tools:
