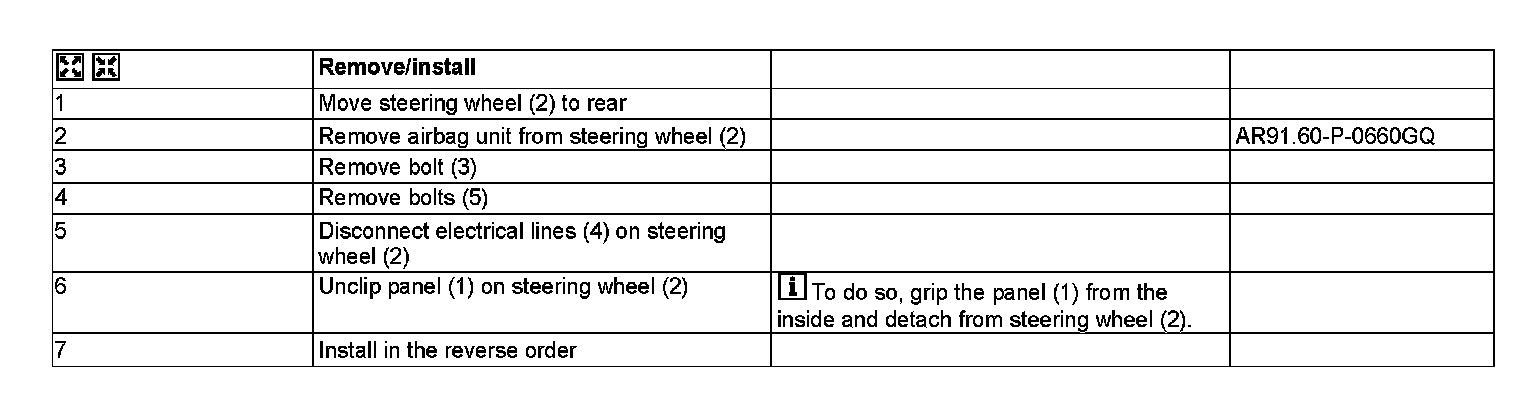

AR46.10-P-0105GQ Remove/Install Steering Wheel Spoke Covers




AR46.10-P-0105GQ Remove/Install Steering Wheel Spoke Covers

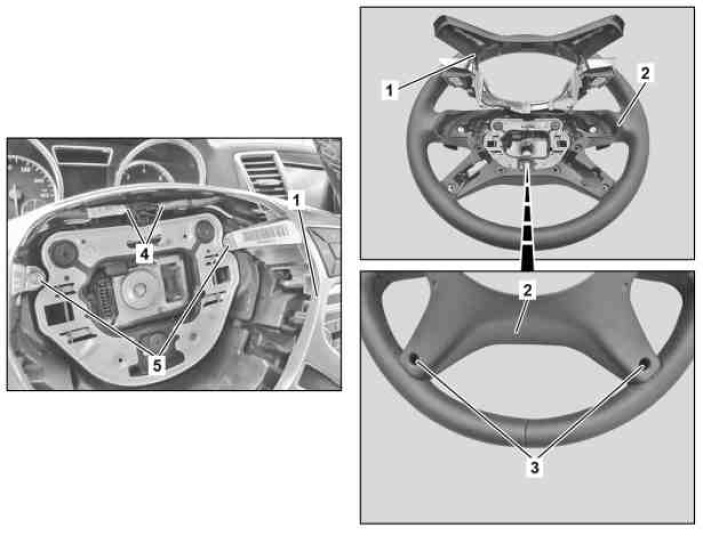

MODEL 166





1 Cover
2 Steering wheel
3 Bolts
4 Electrical line
5 Bolts
