Steering Shaft: Service and Repair

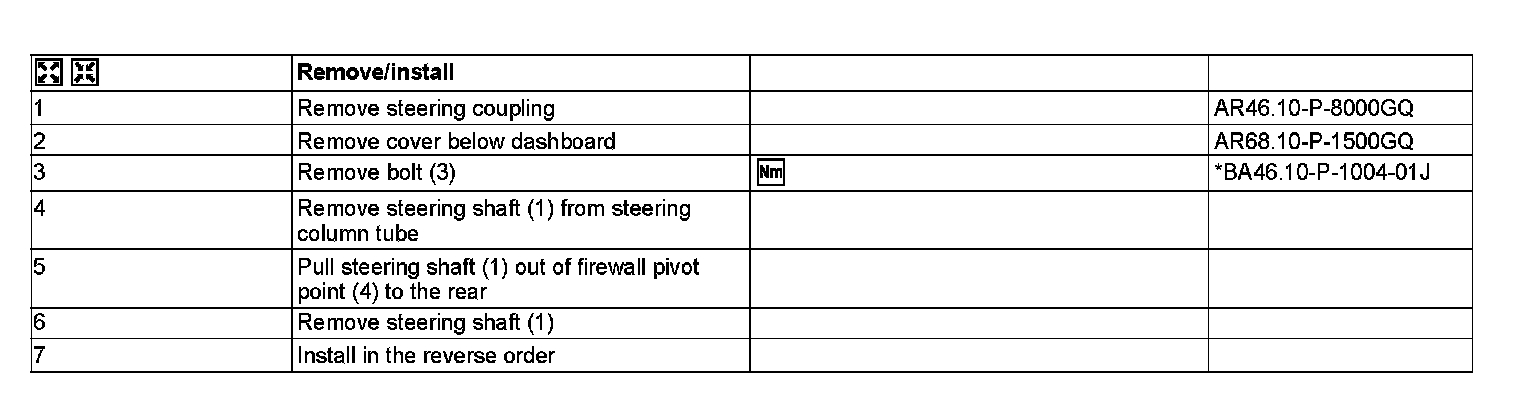

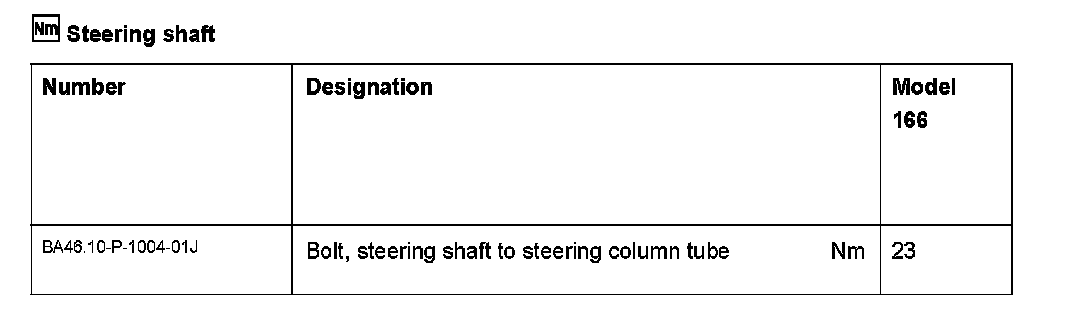

AR46.10-P-7300GQ Remove/Install Steering Shaft
MODEL 166

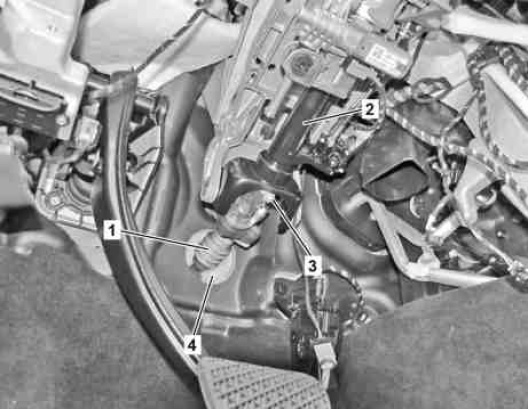

1 Steering shaft
2 Jacket tube
3 Screw
4 Firewall pivot point
