Steering Shaft Coupler: Service and Repair

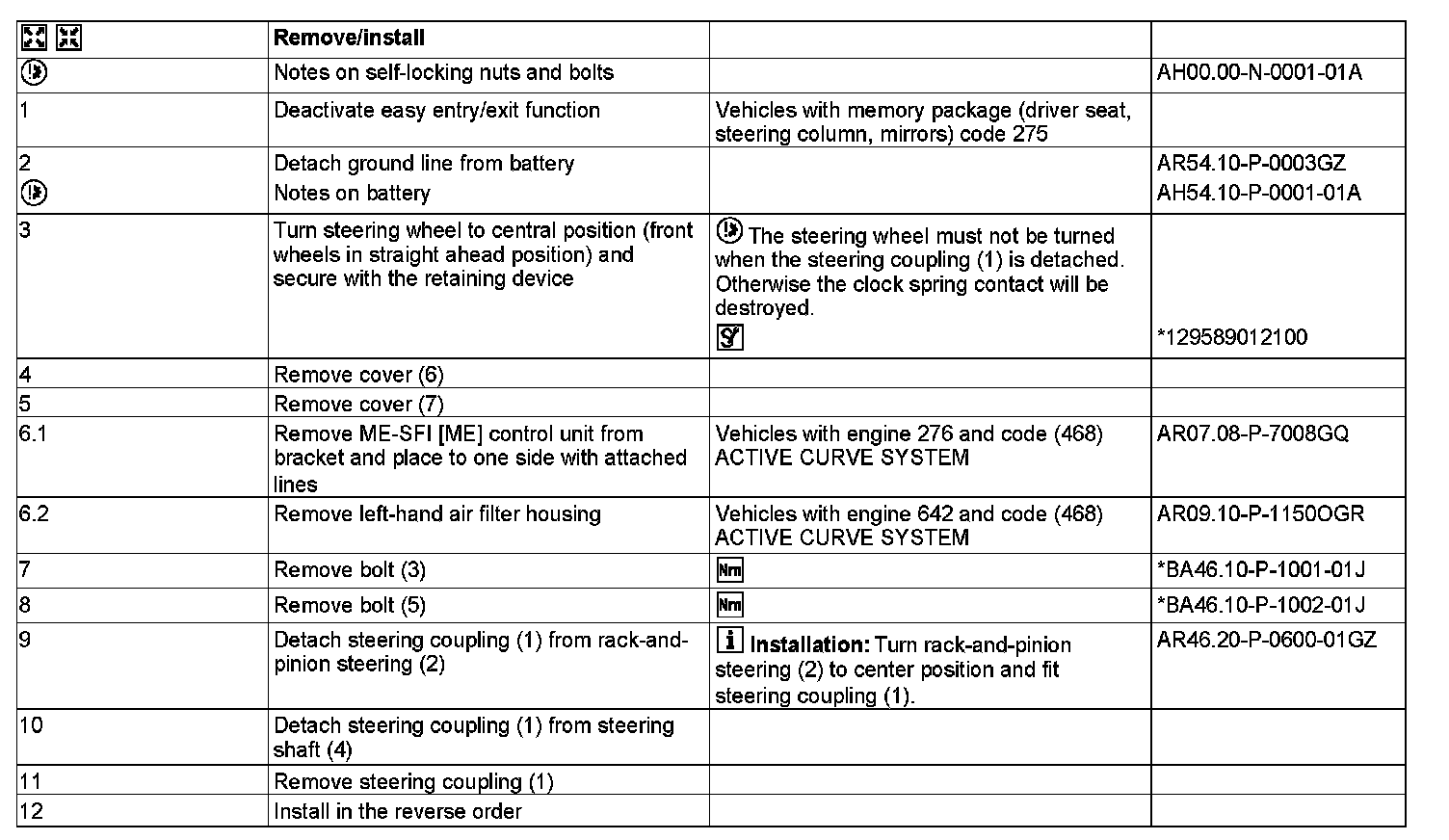

AR46.10-P-8000GQ Remove/Install Steering Coupling
MODEL 166

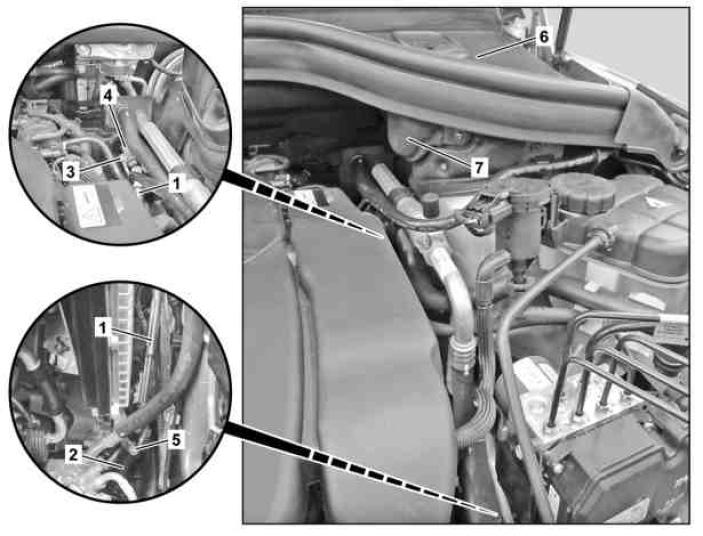

Shown on vehicle with engine 276 without code (468) ACTIVE CURVE SYSTEM

1 Steering coupling
2 Rack-and-pinion steering
3 Screw
4 Steering shaft
5 Screw
6 Cover
7 Cover











129 589 01 21 00
Holding device
