Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Gear >> Service and Repair >> Procedures >> AR46.40-P-0400EW Check and Replace Rubber Boot

AR46.40-P-0400EW Check and Replace Rubber Boot



AR46.40-P-0400EW Check and replace rubber boot

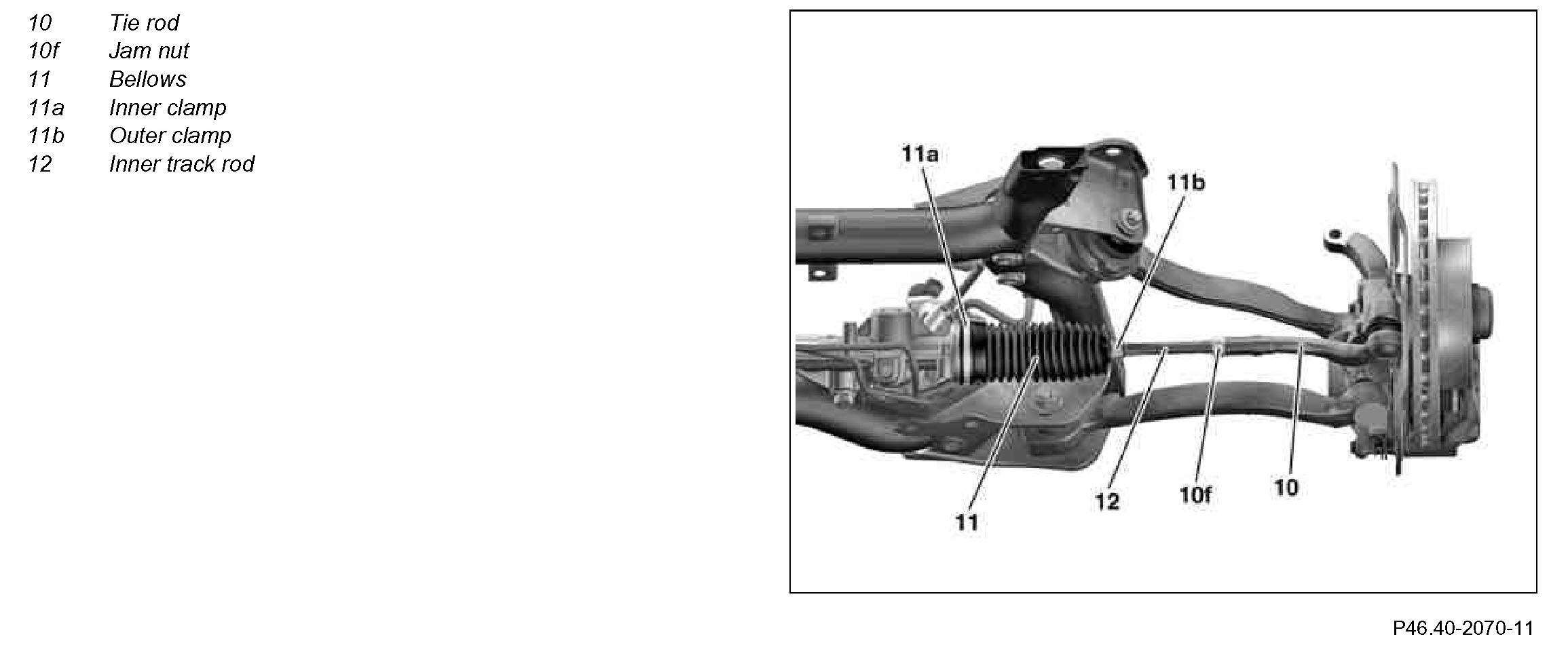

Component Identification:

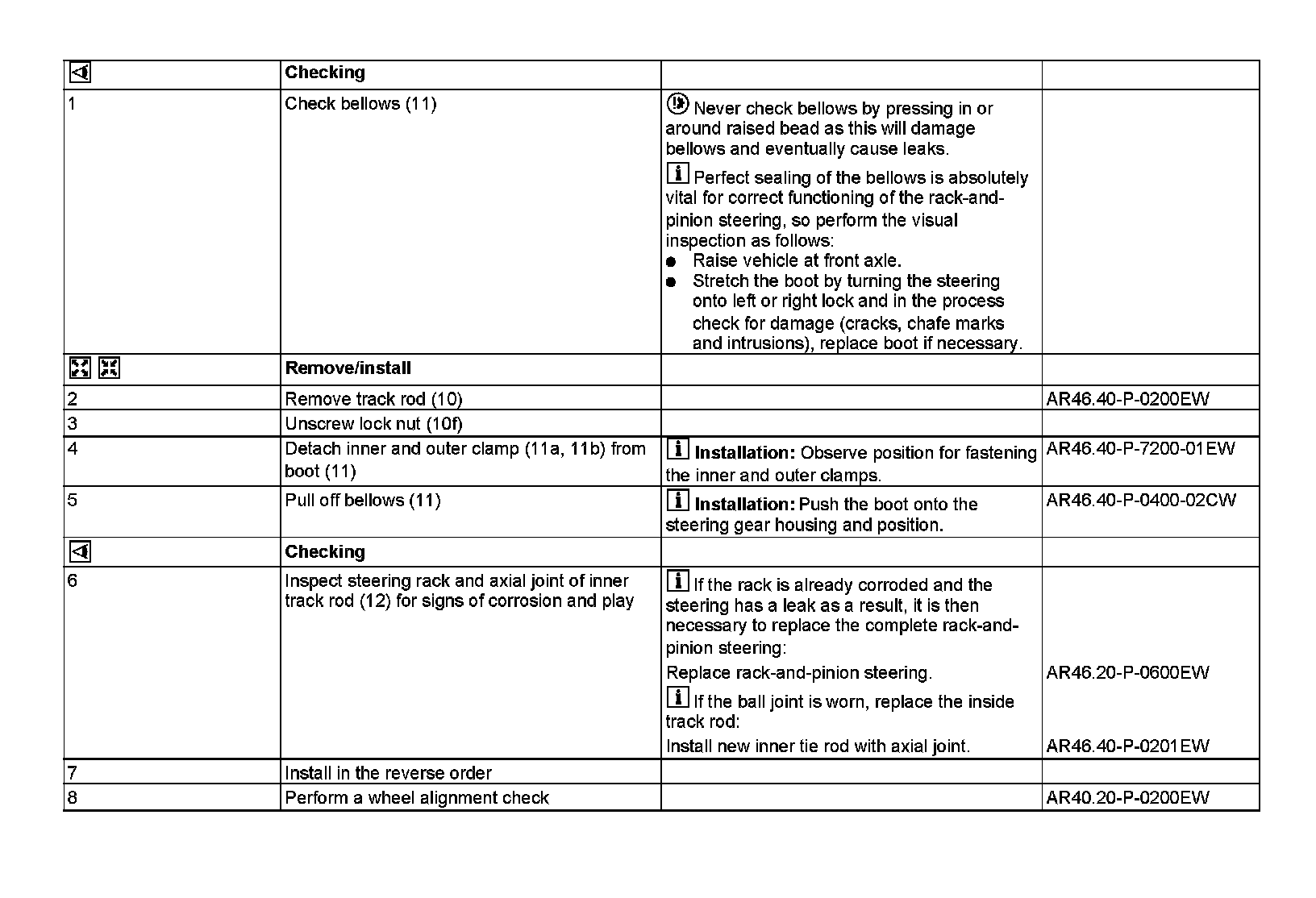

Steps 1-8:
