AR46.20-P-0600-01GZ Turning Rack-and-Pinion Steering to Center Position and Fitting Steering Coupling

AR46.20-P-0600-01GZ Turning rack-and-pinion steering to center position and fitting steering coupling

Component Identification:

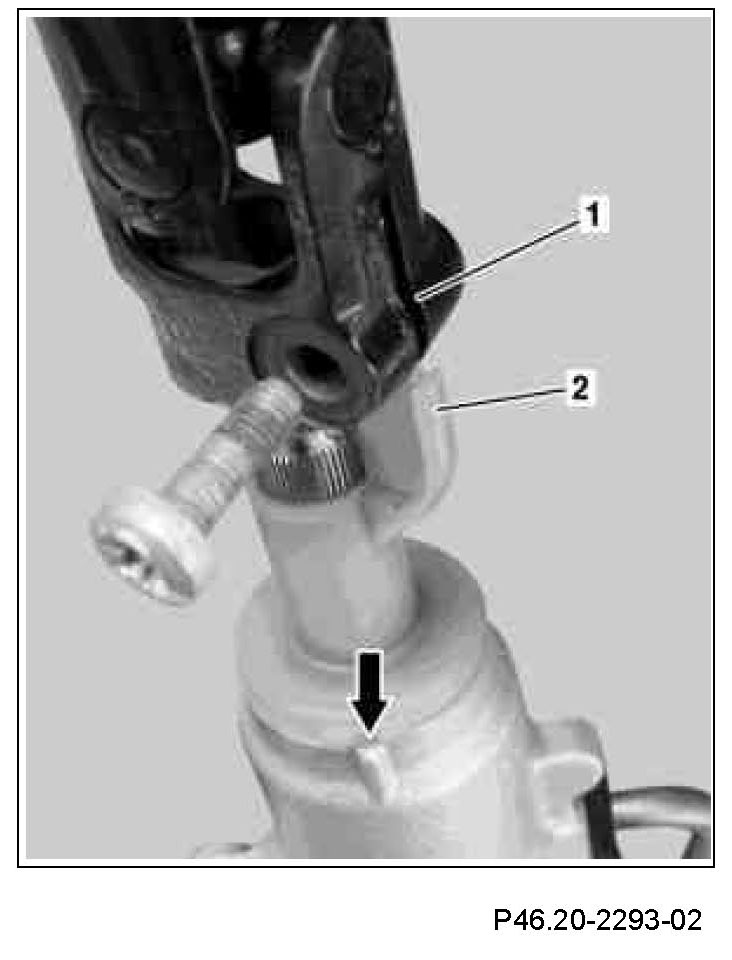

1 Turn rack-and-pinion steering to center position so that marking on cover cap aligns with marking on control valve housing (arrow).
2 Push steering coupling onto serrations of control valve in such a way that assembly catch (2) of cover cap locates in clamping groove (1) of steering coupling.
