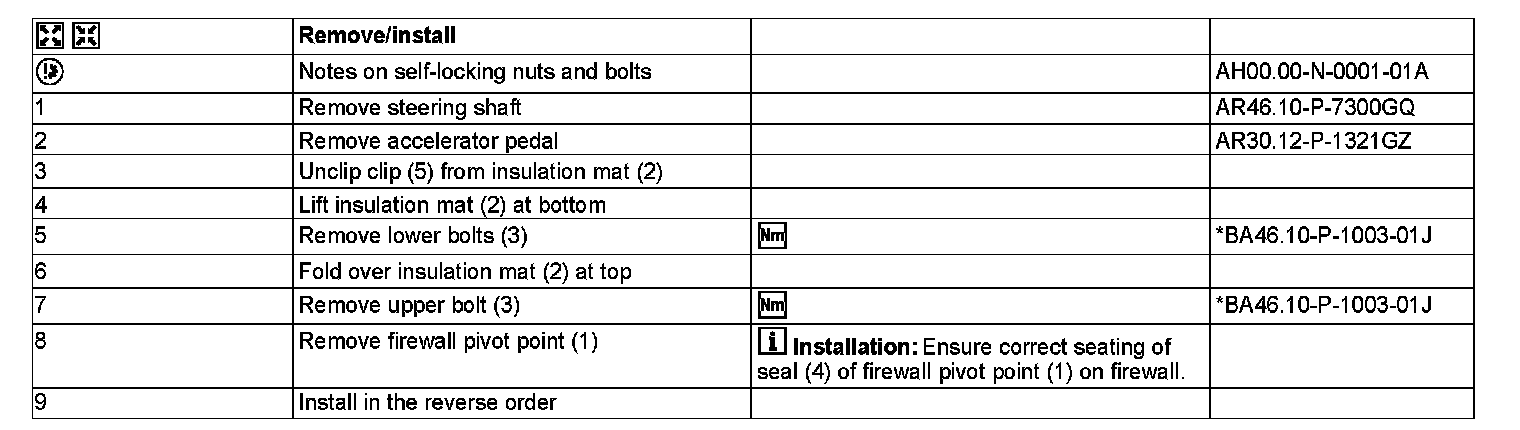

AR46.10-P-9000GQ Remove/Install Firewall Pivot Point




AR46.10-P-9000GQ Remove/Install Firewall Pivot Point
MODEL 166

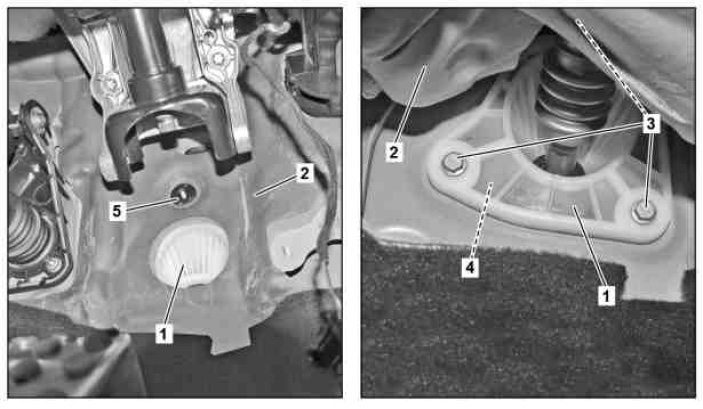

1 Firewall pivot point
2 Insulation mat
3 Screw
4 Gasket
5 Clip
