AR40.20-P-0301-02GQ Adjust Vehicle Level By Changing Spacer Washers

AR40.20-P-0301-02GQ Adjust Vehicle Level By Changing Spacer Washers

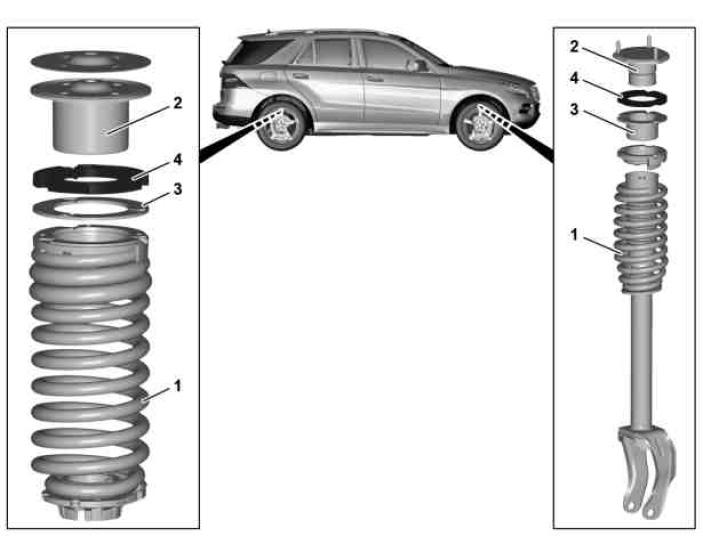

To adjust the vehicle level, spacer washers (4) must be inserted between the upper spring cup (2) and base (3). Spacer washers (4) are available in thicknesses of 1.5 mm, 2.0 mm, 5.0 mm and 10 mm.

1 Spring
2 Spring cup
3 Base
4 Spacer washer

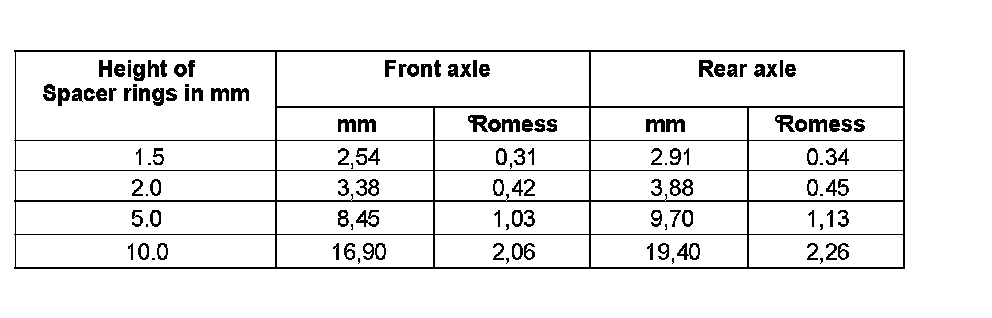

The table below shows how the vehicle level changes when various spacer washers (4) are inserted.
