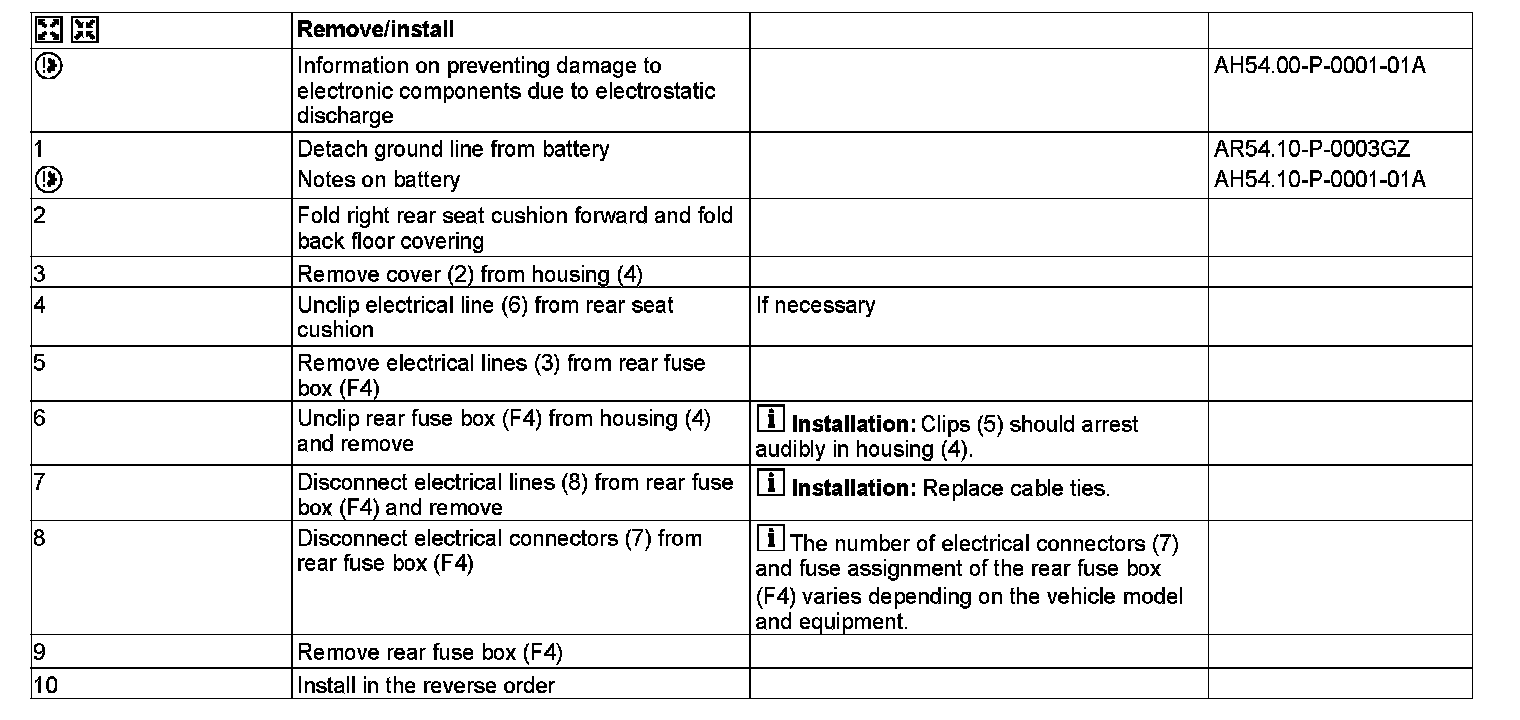

AR54.15-P-1261GQ Remove Fuse and Relay Box In Rear




AR54.15-P-1261GQ Remove Fuse and Relay Box In Rear
MODEL 166

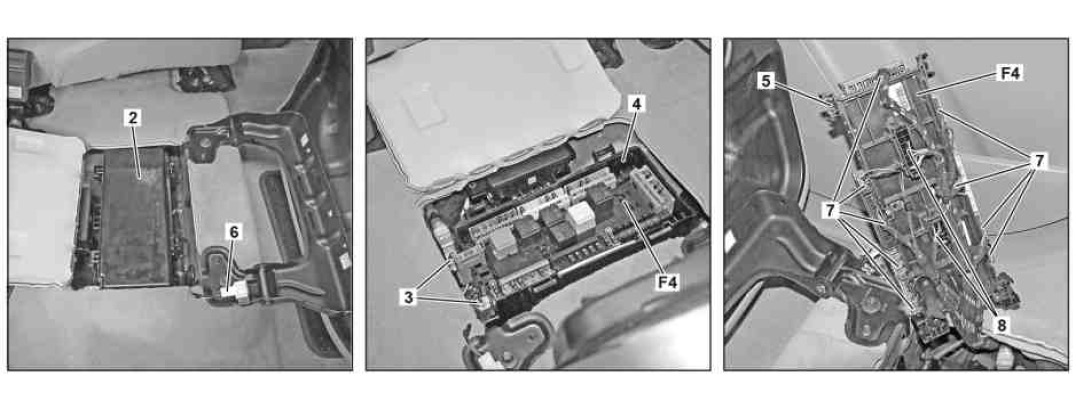

Shows model 166.024
2 Cover
3 Electrical line
4 Housing
5 Clips
6 Electrical line
7 Electrical connector
8 Electrical line
F4 Rear fuse box
