AR54.15-P-1258GQ Remove/Install Fuse and Relay Box In Engine Compartment, Right Front




AR54.15-P-1258GQ Remove/Install Fuse and Relay Box In Engine Compartment, Right Front
MODEL 166

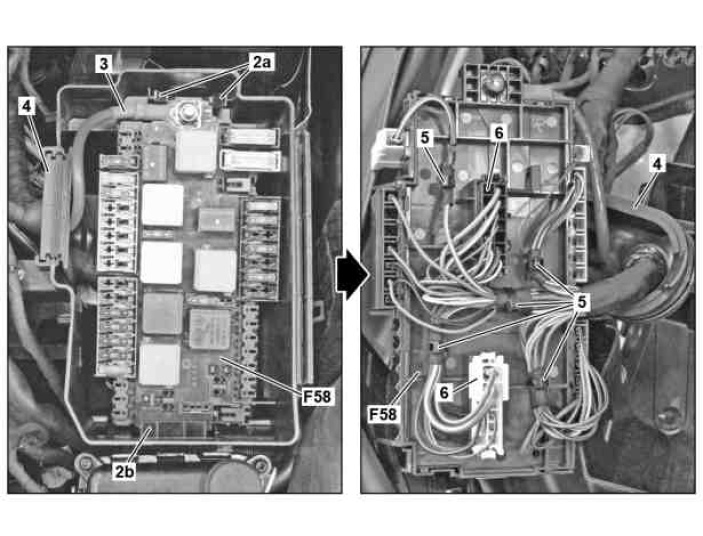

Shows model 166.024

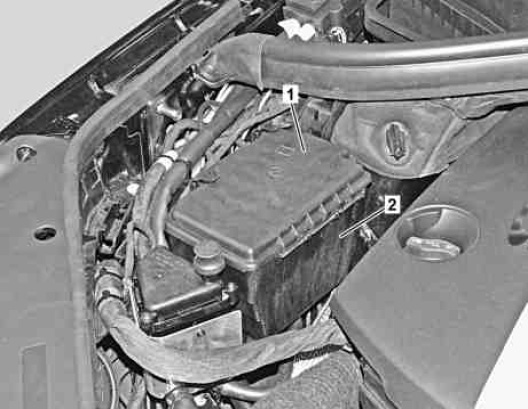

1 Cover
2 Fuse and relay box





Shows model 166.024
2a Lock
2b Bracket
3 Electrical feed line
4 Cable grommet
5 Cable tie
6 Electrical connector

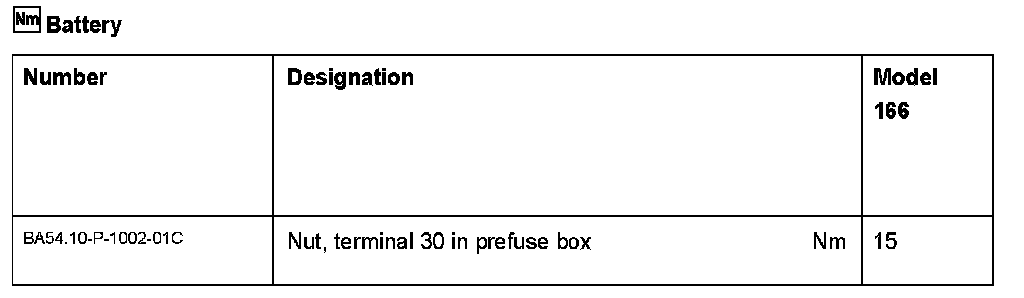

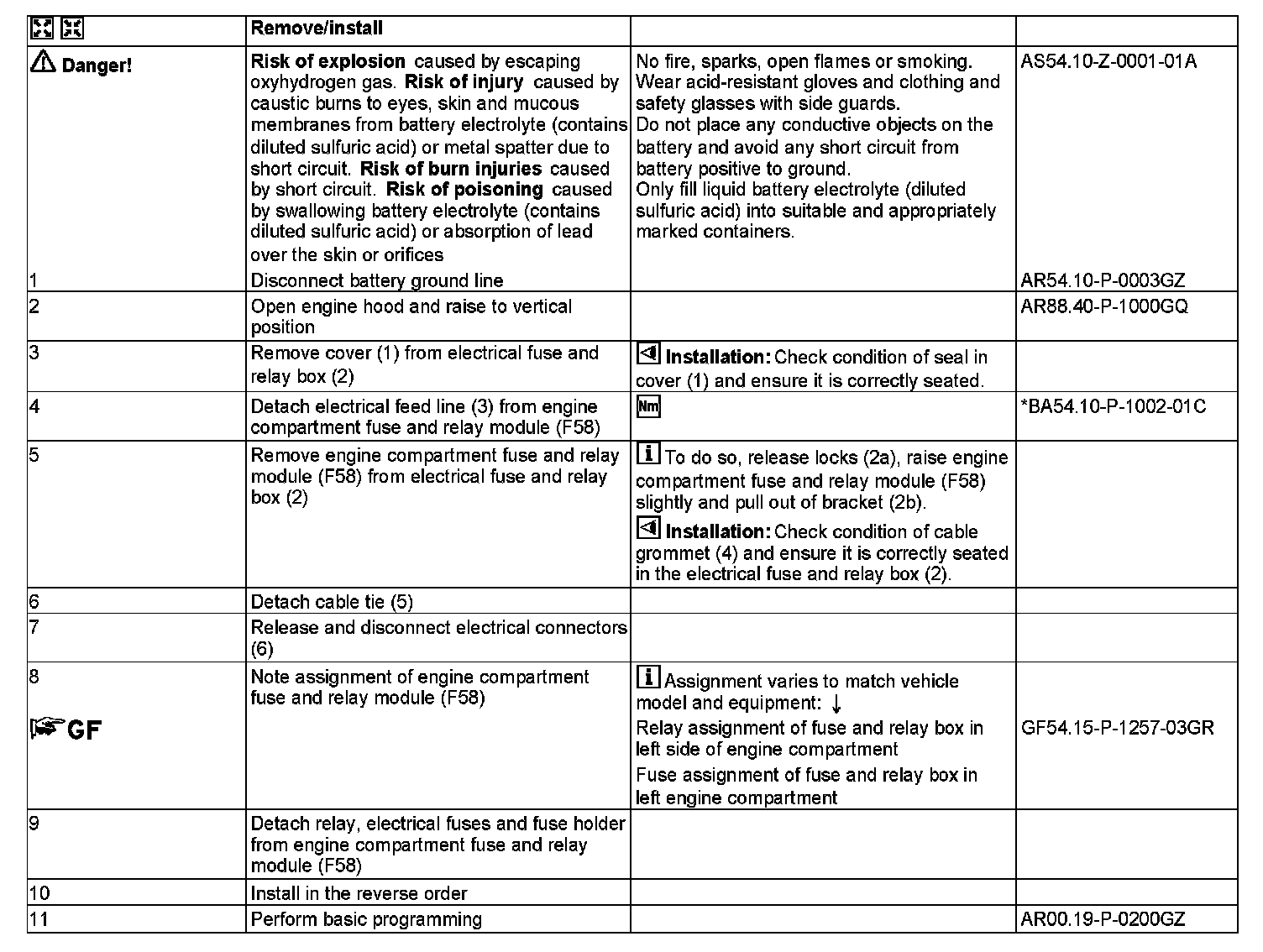

F58 Engine compartment fuse and relay module
