Relay Box: Description and Operation

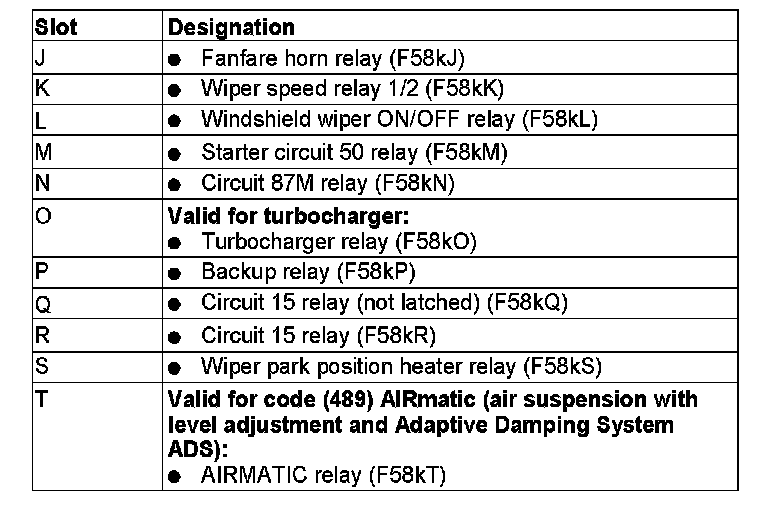

GF54.15-P-1257-03GR Relay Assignment of Fuse and Relay Box In Left Side of Engine Compartment

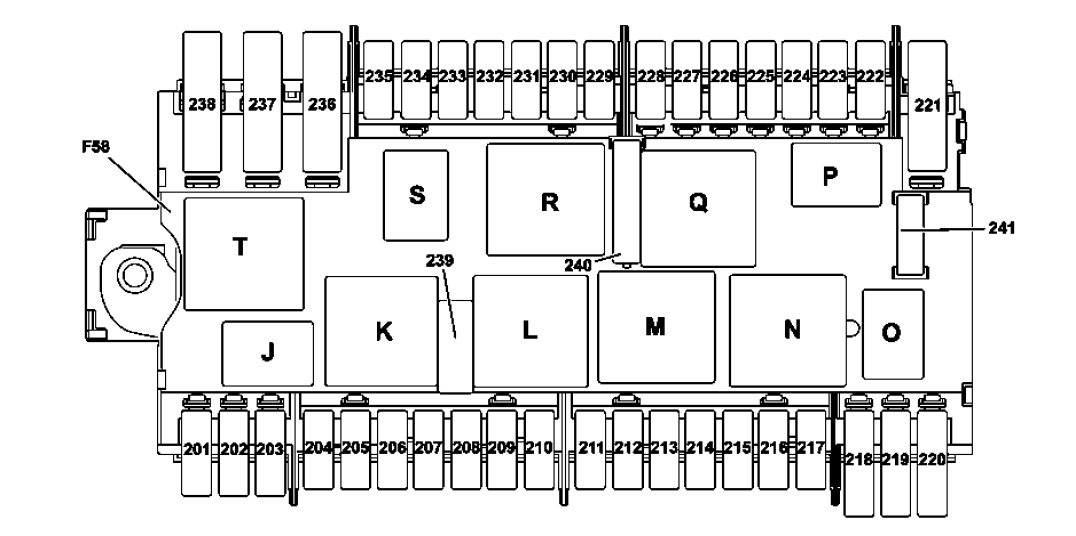

F58 Engine compartment fuse and relay module
