Fuse: Service and Repair

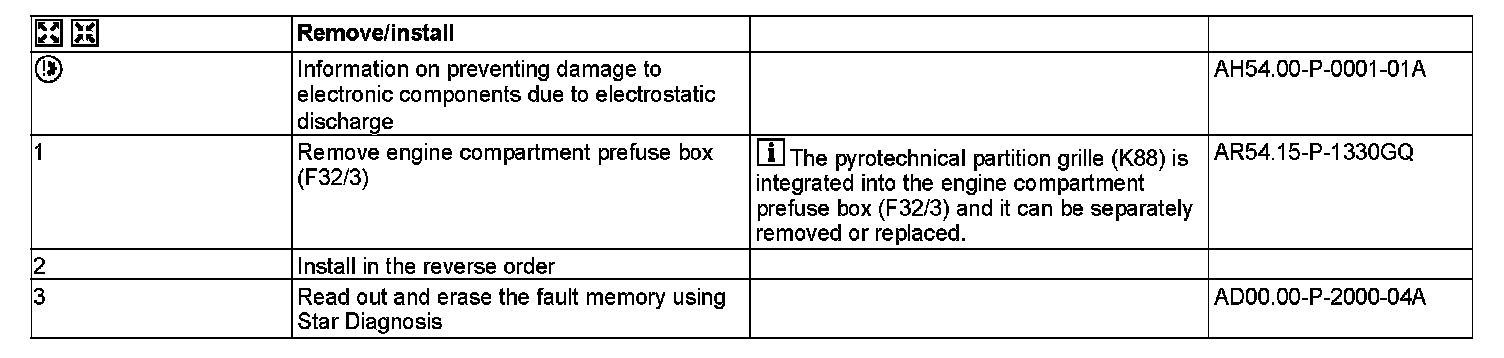

AR54.10-P-1180GQ Remove/Install Pyrofuse
MODEL 166

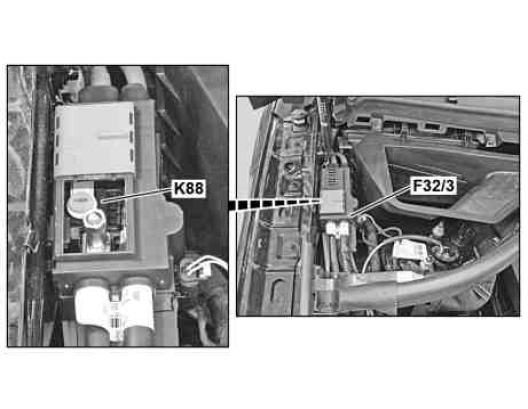

Shows model 166.024
F32/3 Engine compartment prefuse box
K88 Pyrotechnical separator
