Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> GF54.15-P-1256-03GR Fuse Assignment of Fuse and Relay Box In Left Engine Compartment

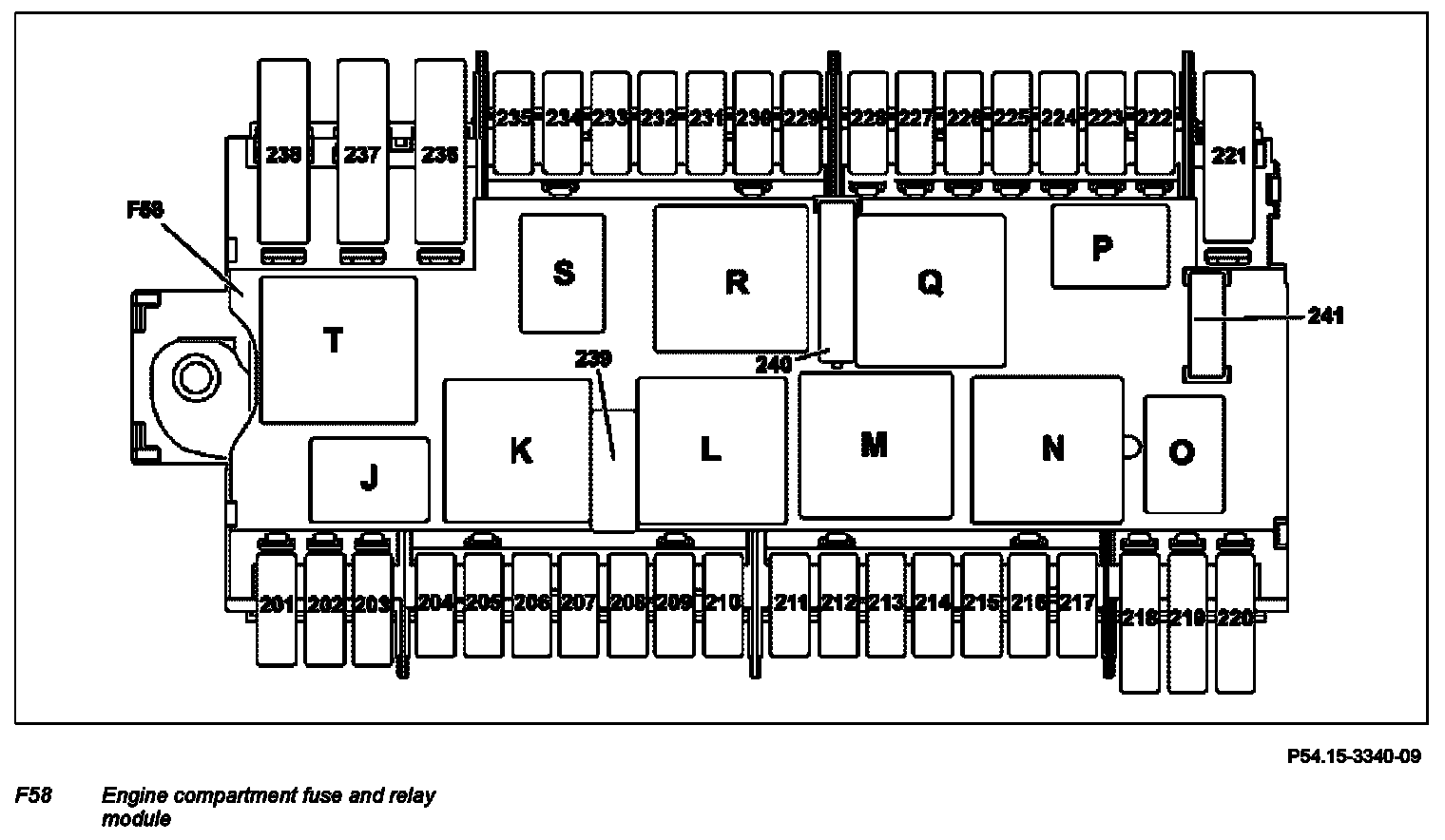

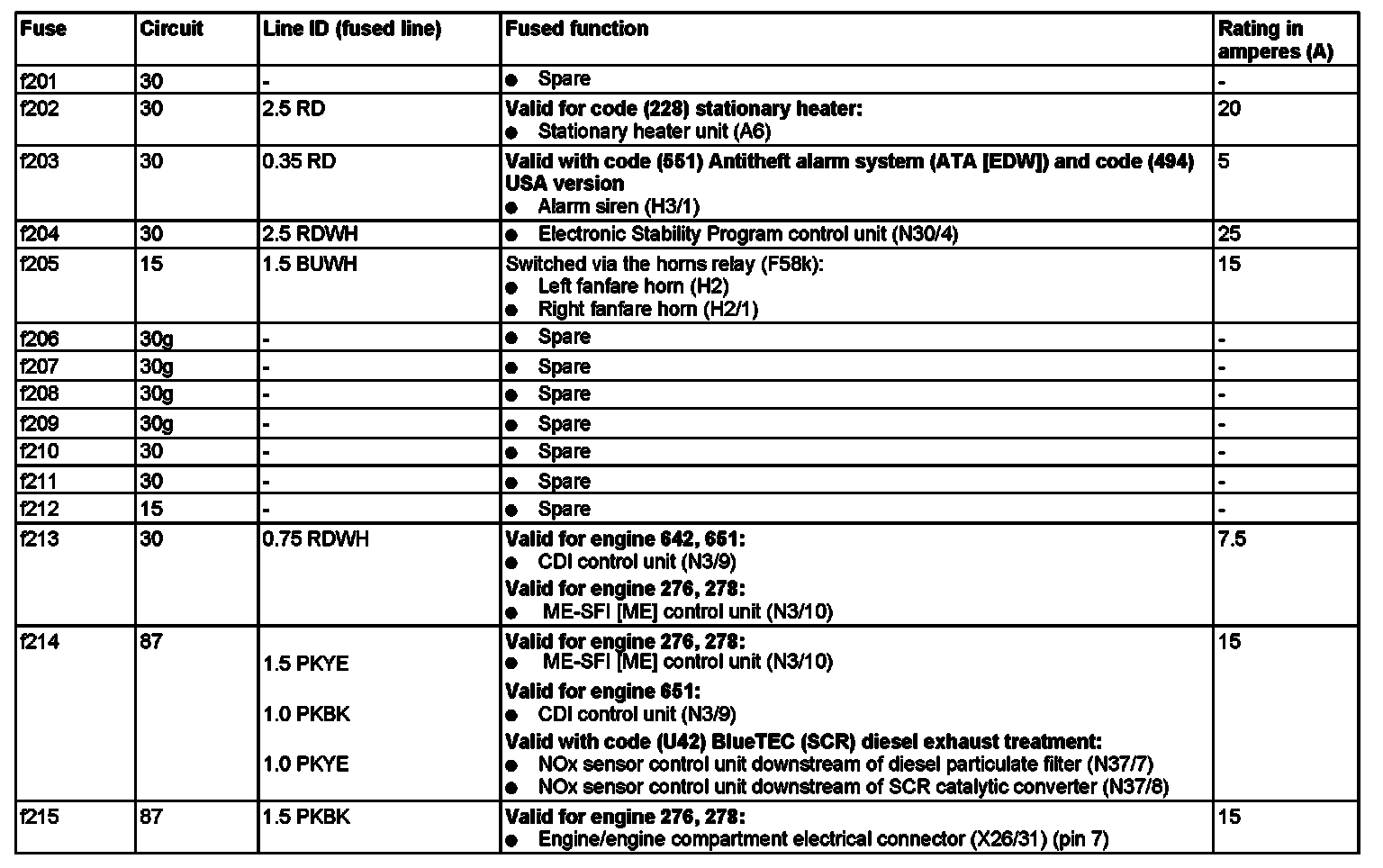

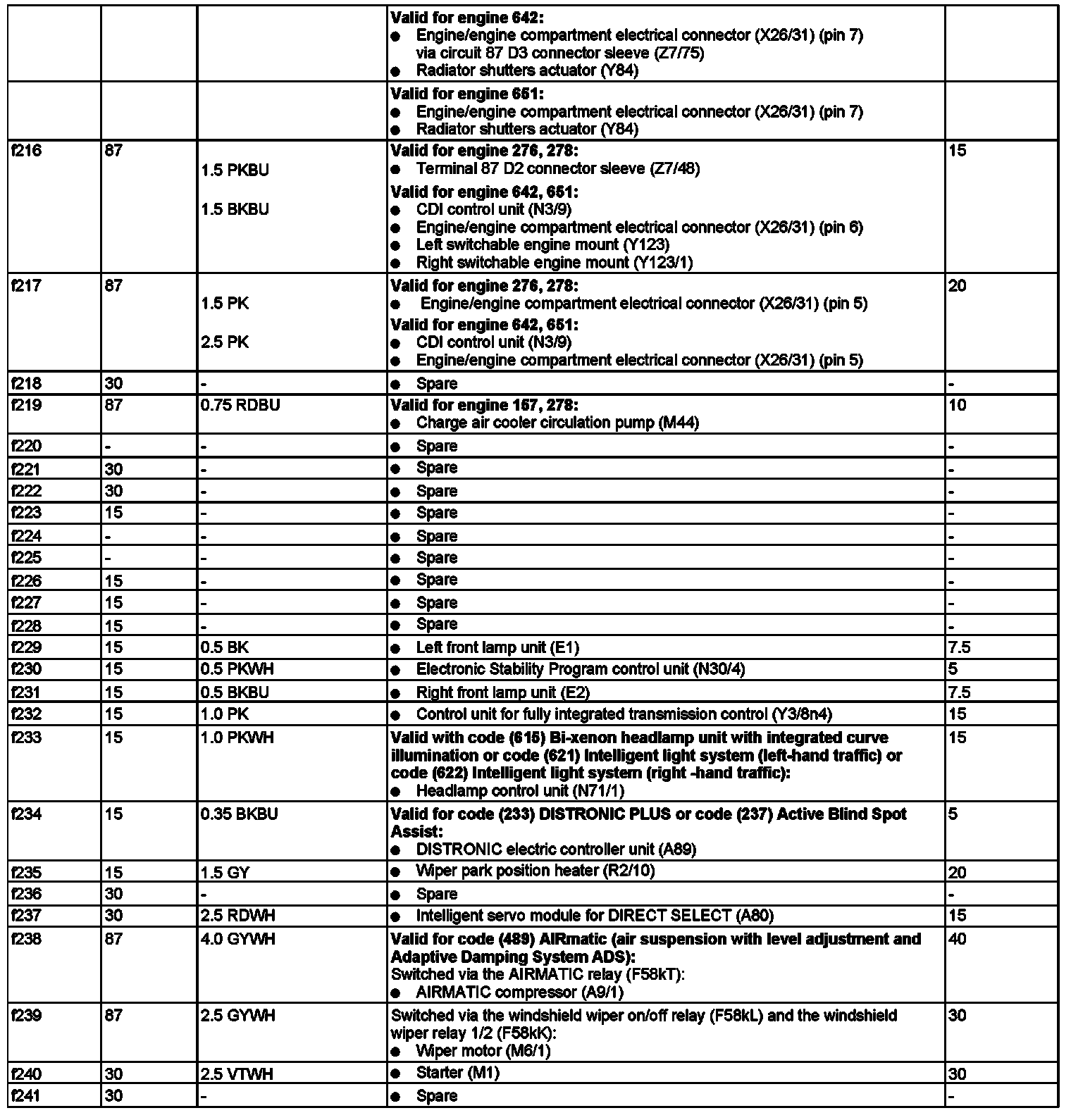

GF54.15-P-1256-03GR Fuse Assignment of Fuse and Relay Box In Left Engine Compartment




GF54.15-P-1256-03GR Fuse Assignment of Fuse and Relay Box In Left Engine Compartment
