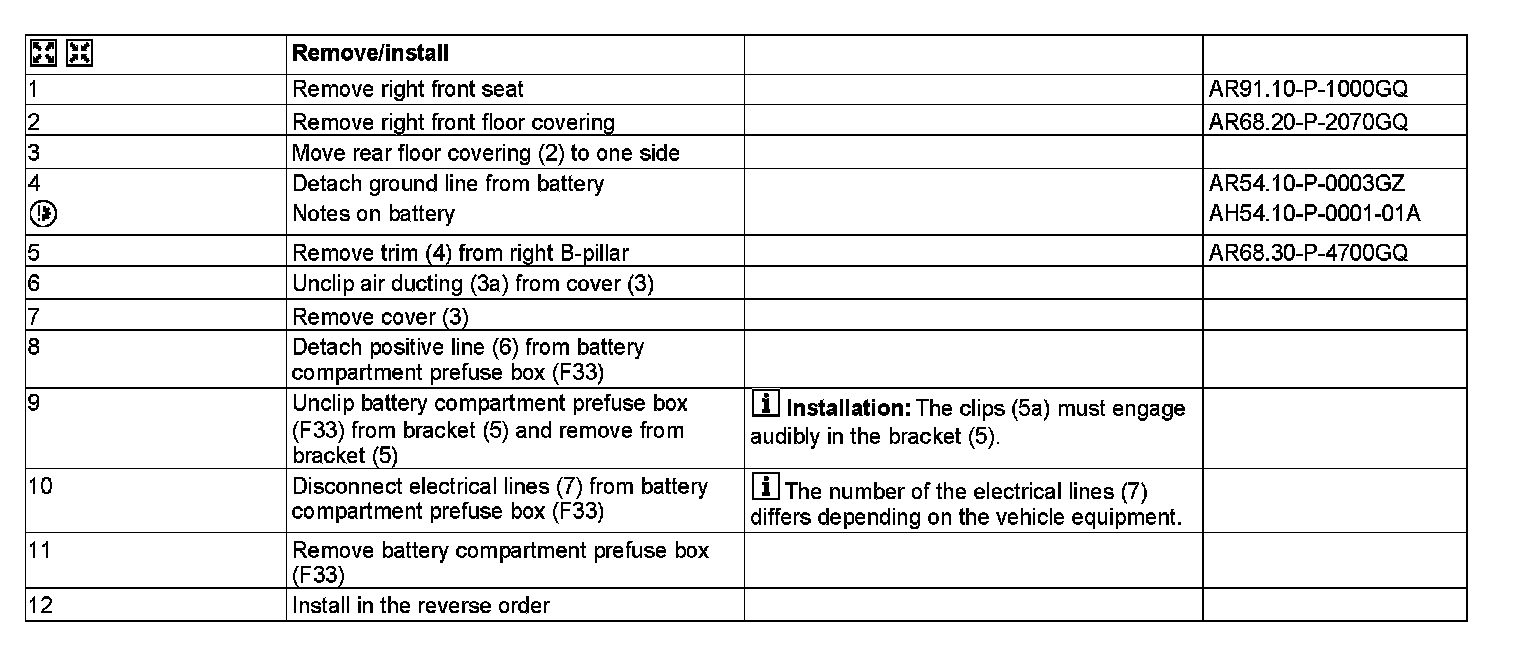

AR54.15-P-1350GQ Remove/Install Interior Compartment Prefuse Box

AR54.15-P-1350GQ Remove/Install Interior Compartment Prefuse Box

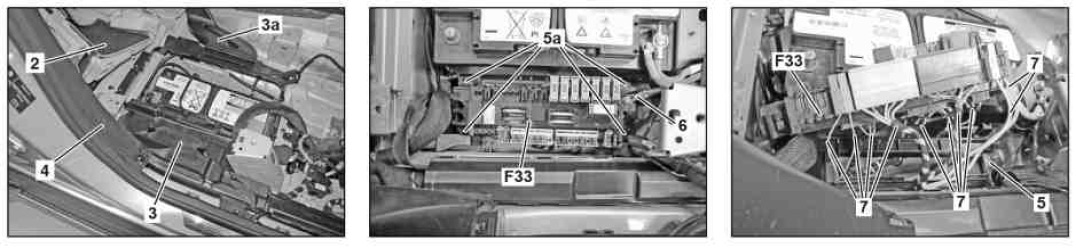

MODEL 166





2 Rear floor covering
3 Cover
3a Air ducting
4 Cover
5 Bracket
5a Clips
6 Positive line
7 Electrical line
F33 Battery compartment prefuse box
