AR54.15-P-1330GQ Remove/Install Front Prefuse Box

AR54.15-P-1330GQ Remove/Install Front Prefuse Box
MODEL 166

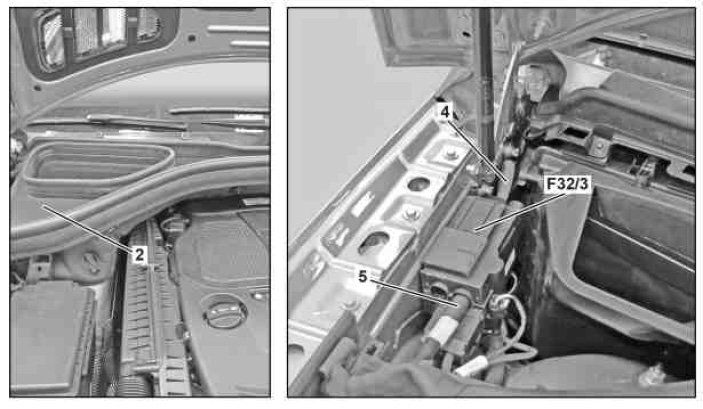

2 Cover
4 Electrical line
5 Electrical line
F32/3 Engine compartment prefuse box

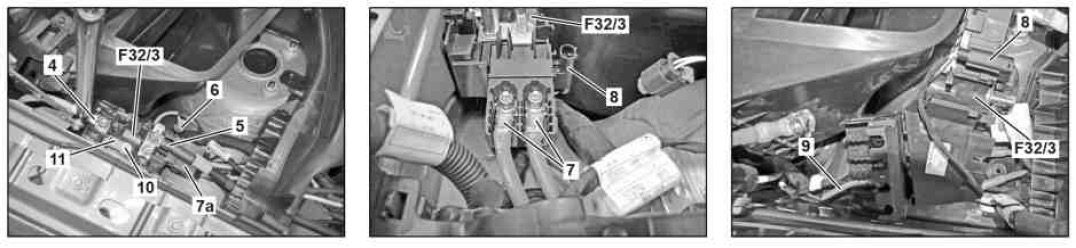

Shown on vehicle without code (B03) ECO start/stop function
4 Electrical line
5 Electrical line
6 Electrical connector
7 Electrical line
7a Cover
8 Electrical line
9 Electrical line
10 Retainer
11 Electrical connector
F32/3 Engine compartment prefuse box
