Mercedes Benz Truck
>>
2012
>>
ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Battery
>>
Testing and Inspection
>>
AR54.10-P-1129GZ Check Condition of Battery
AR54.10-P-1129GZ Check Condition of Battery
AR54.10-P-1129GZ Check Condition Of Battery

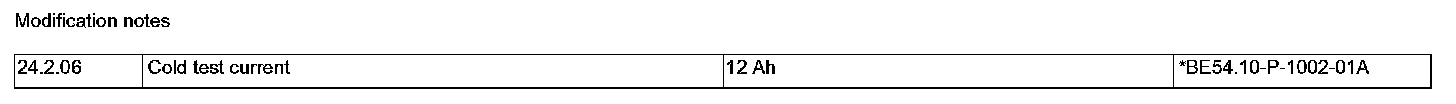

Modification Notes:

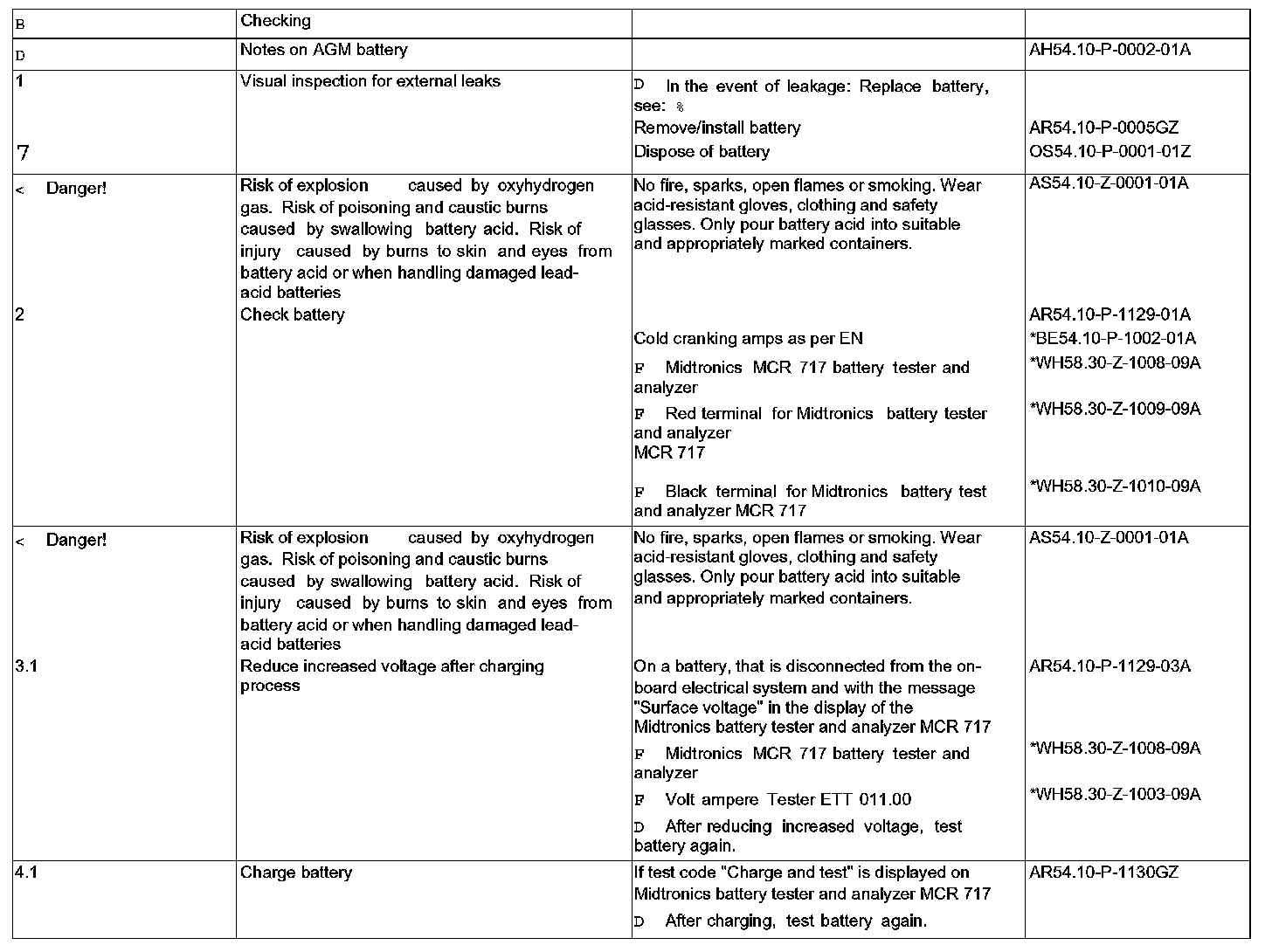

Steps 1 - 4.1:

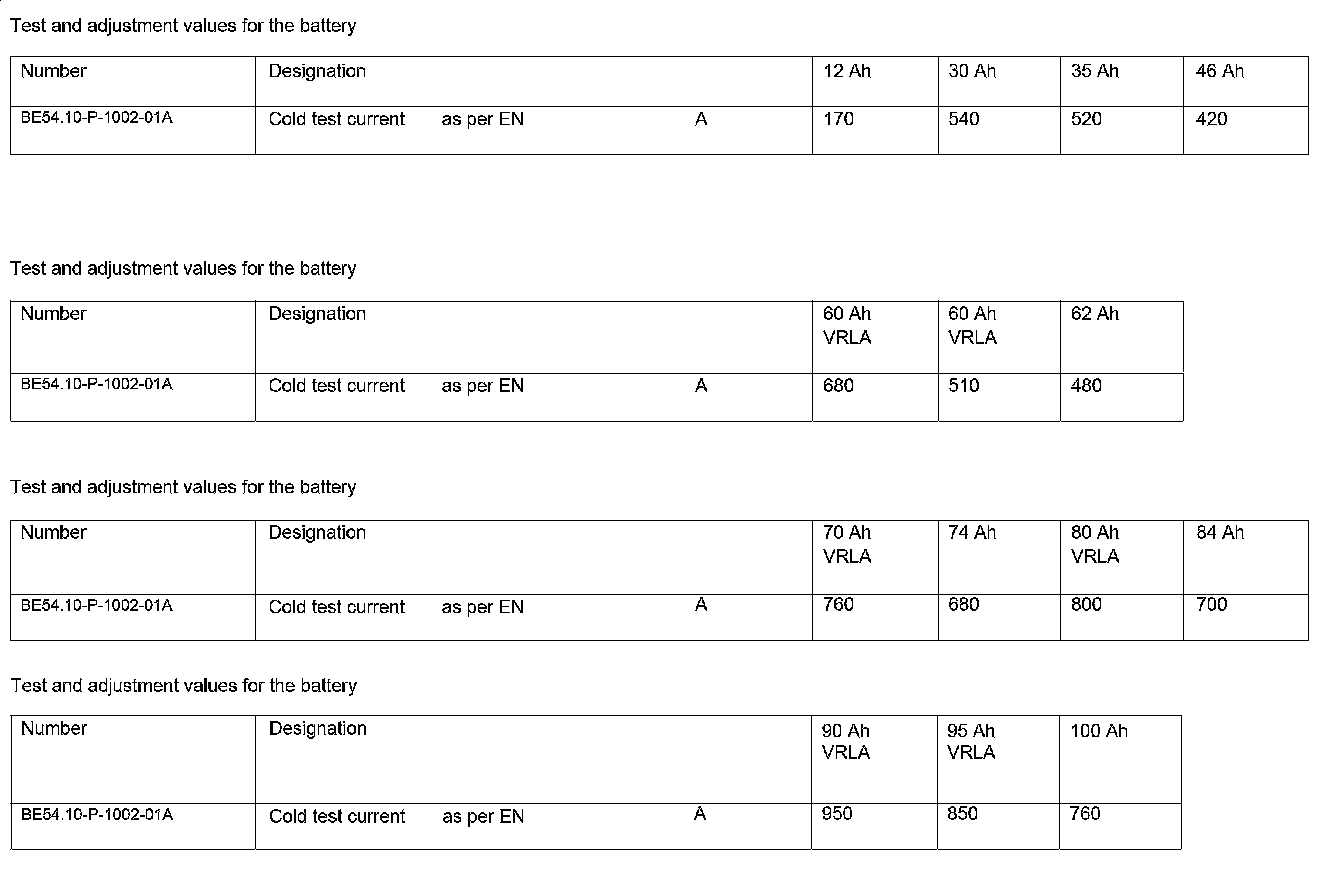

Test And Adjustment Values For The Battery:

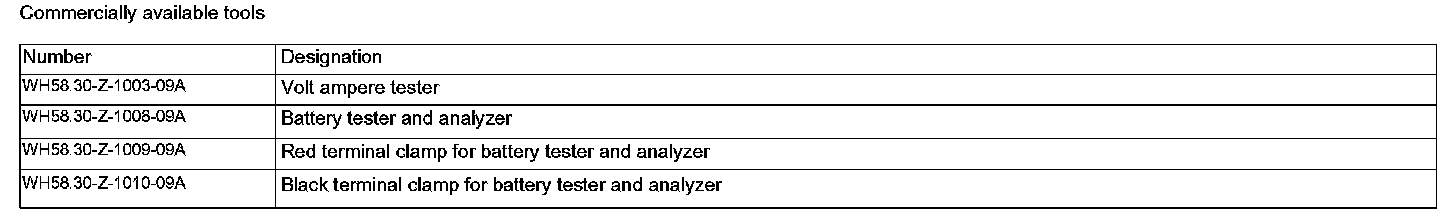

Commercially Available Tools:
