Mercedes Benz Truck
>>
2012
>>
ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Battery
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR54.10-P-0005GZ Removing And Installing Battery

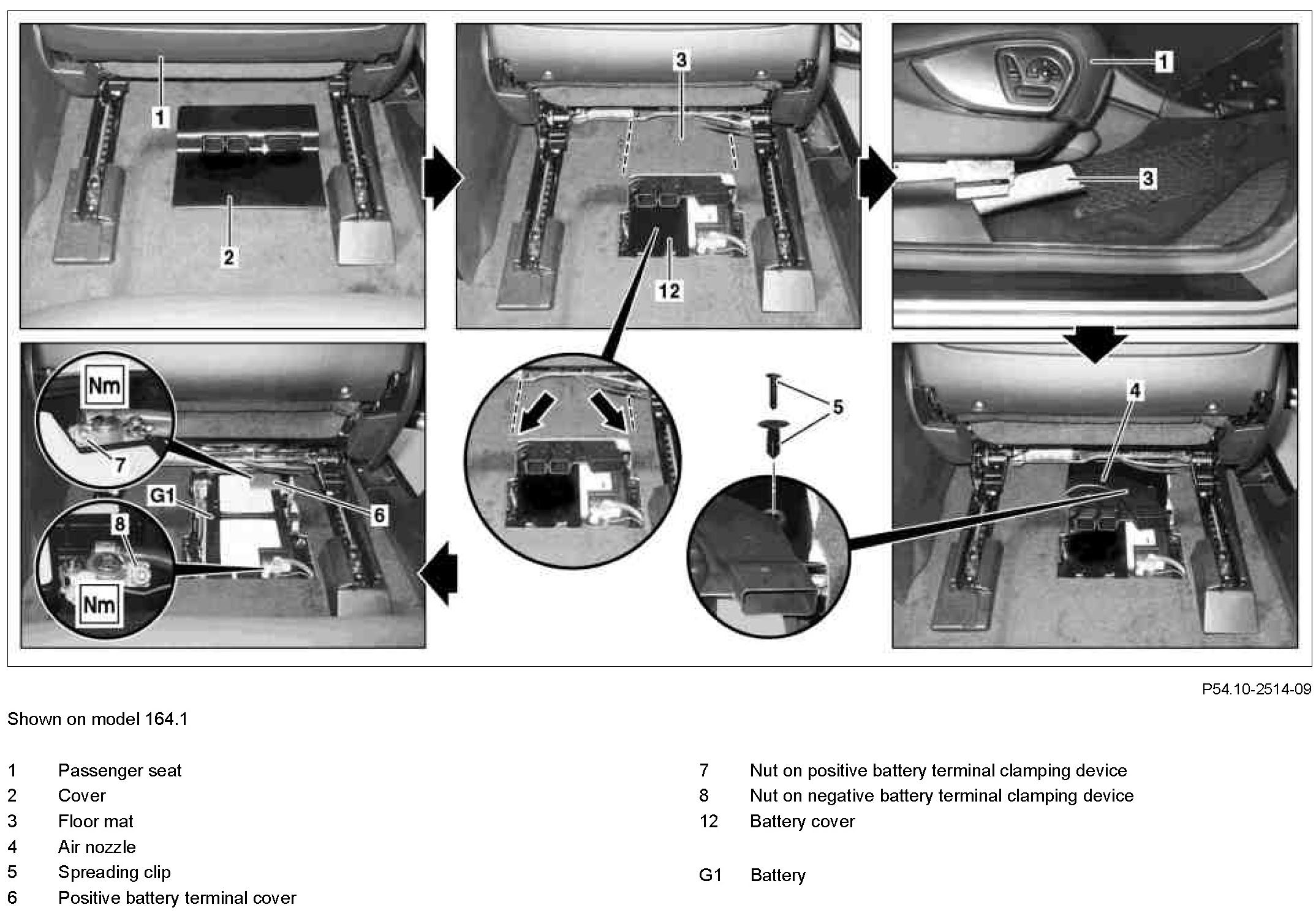

Component Identification:
Component Identification:

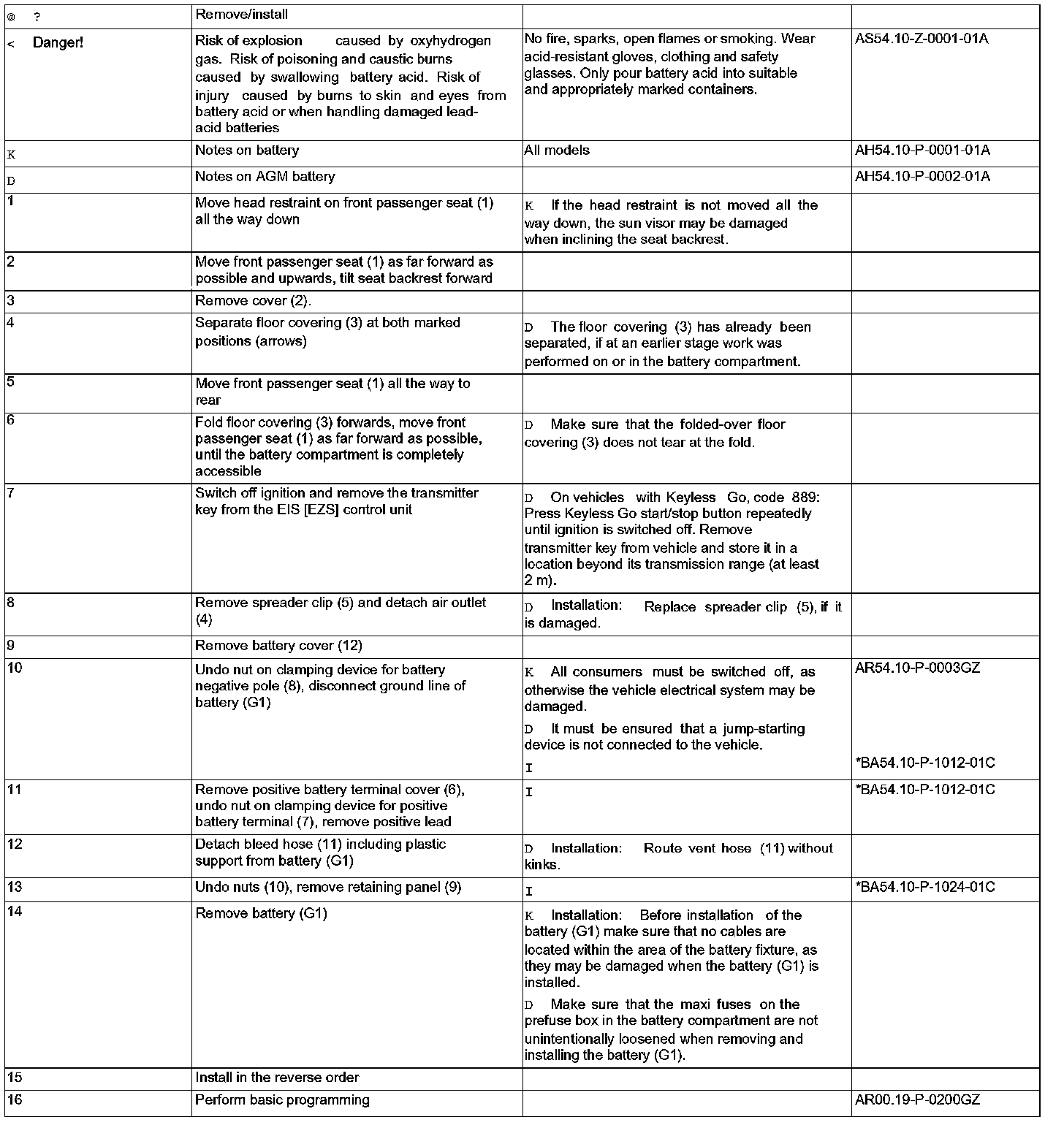

Steps 1 - 16:

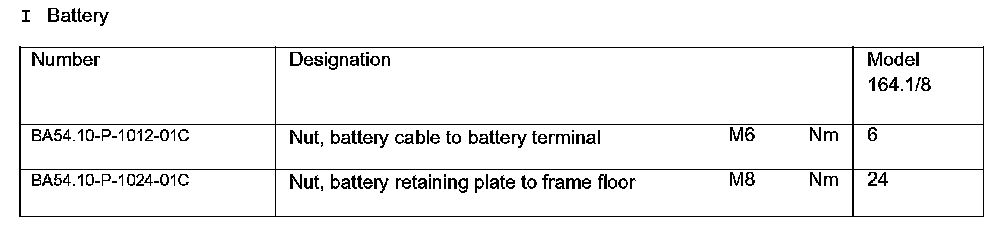

Battery:
