Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension

Suspension

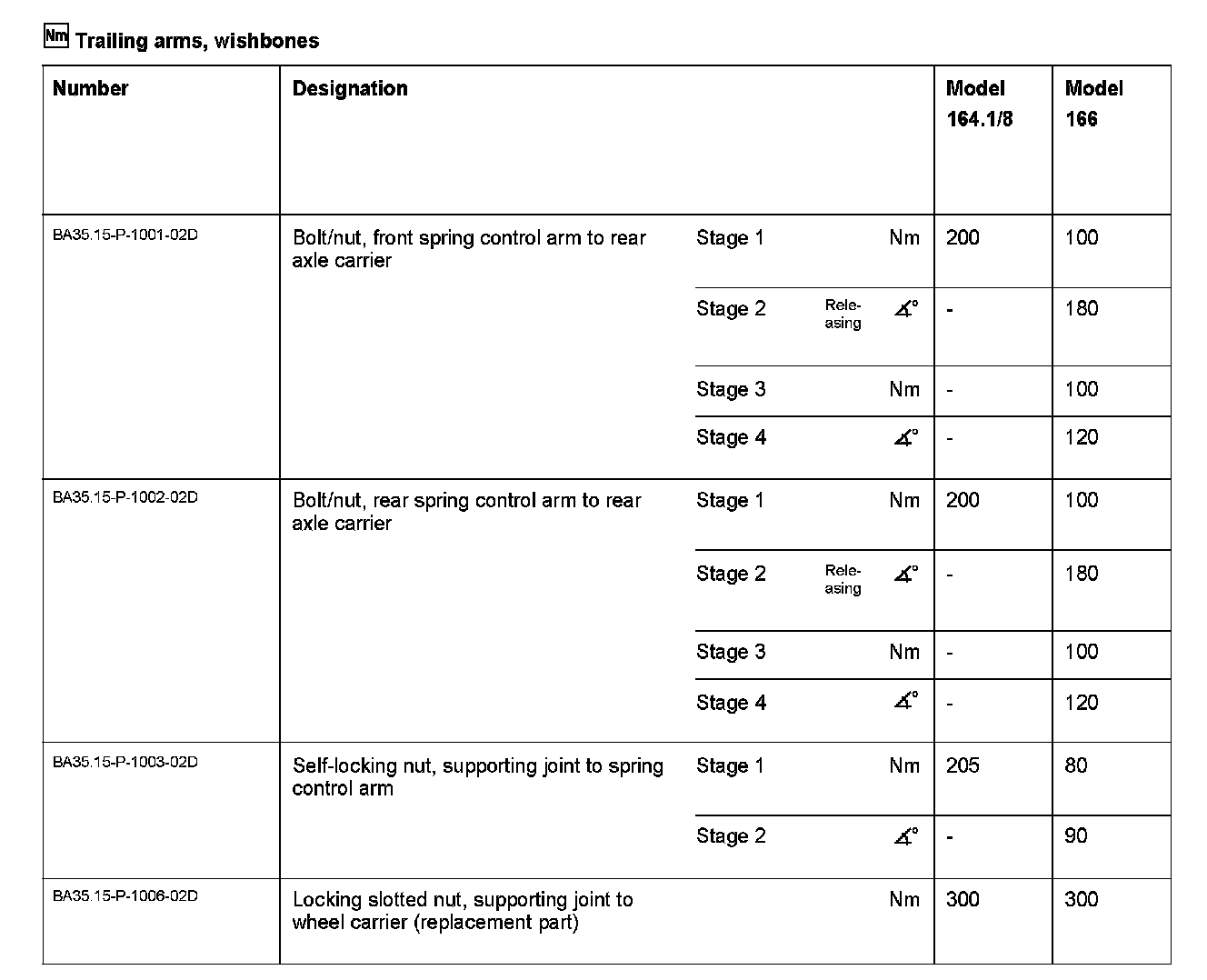

BA35.15-P-1000-02D Trailing Arms, Wishbones
Model 164.1/8, 166
