Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Piston Ring, Engine

Piston Ring, Engine

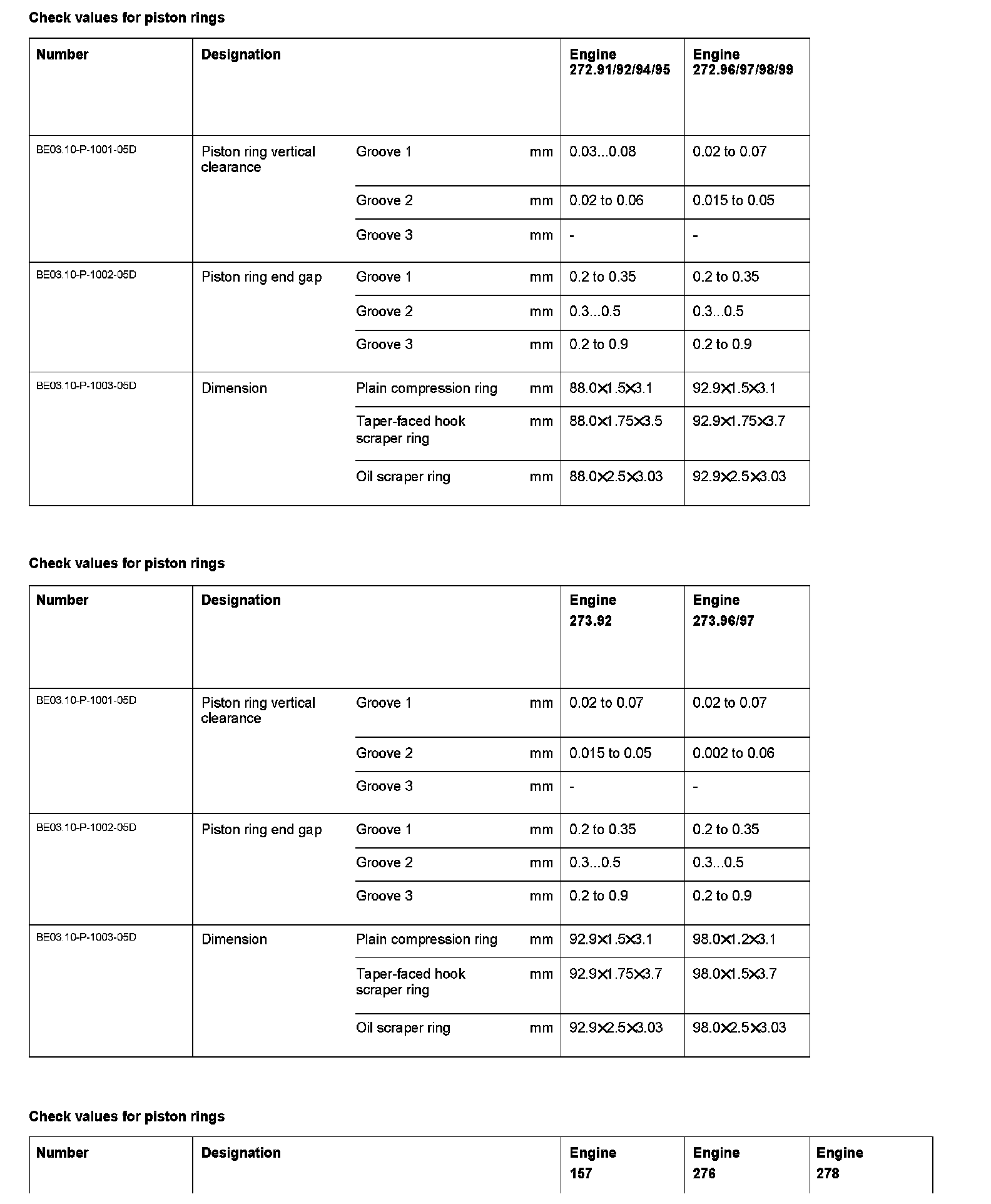

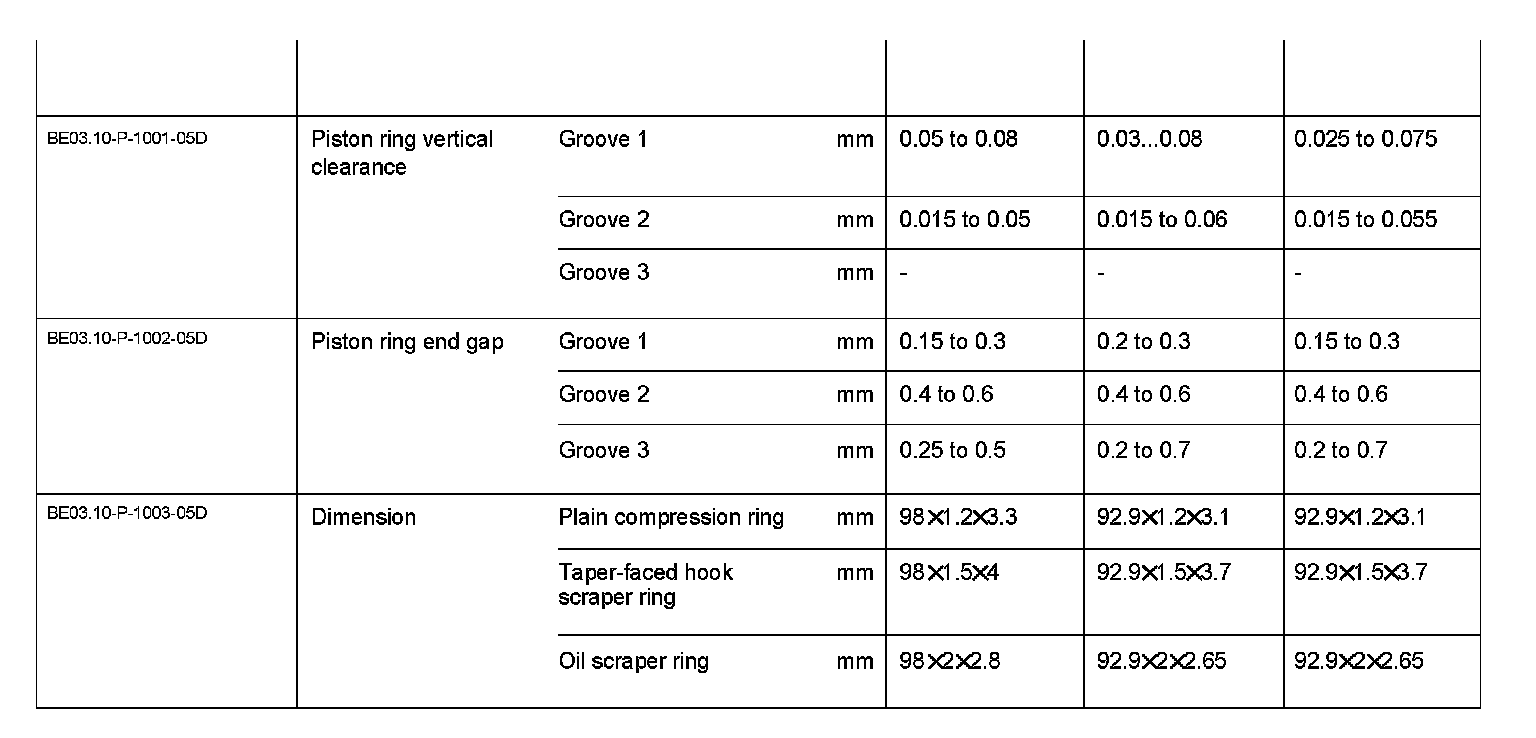

BE03.10-P-1000-05D Check Values For Piston Rings
ENGINE 157, 272, 273, 276, 278
