Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brake Hose/Line

Brake Hose/Line

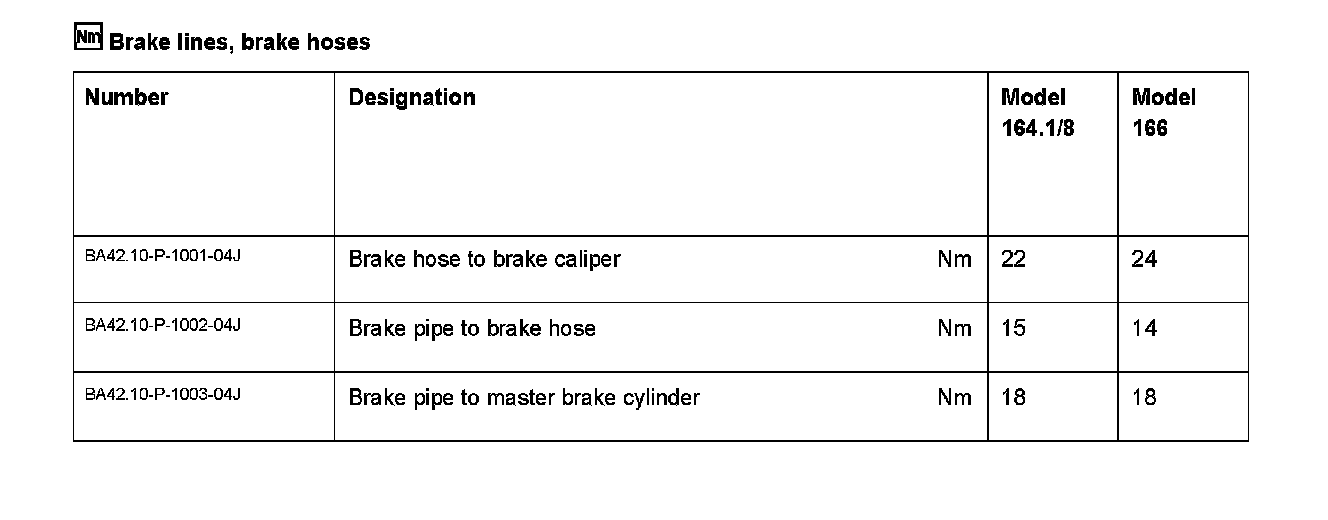

BA42.10-P-1000-04J Brake Lines, Brake Hoses
Model 164, 166
