Mercedes Benz Truck
>>
2012
>>
ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
>>
Test Values For Distance and Comparison Measurements on Rear Axle
Test Values For Distance and Comparison Measurements on Rear Axle

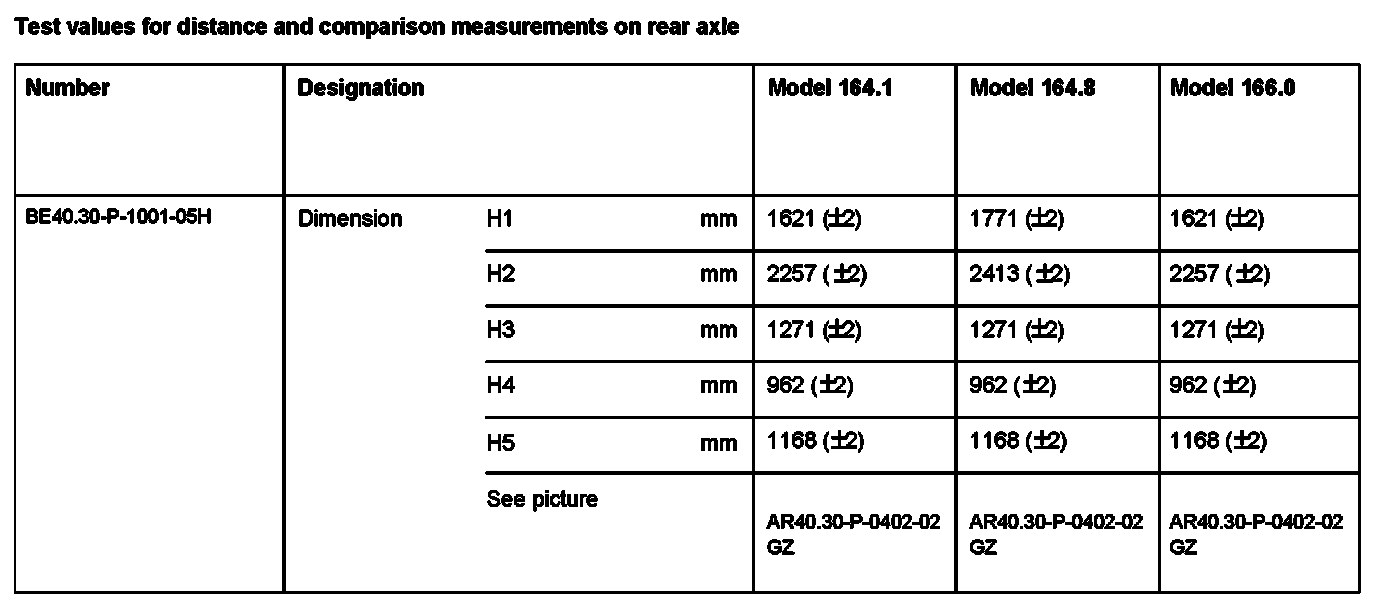

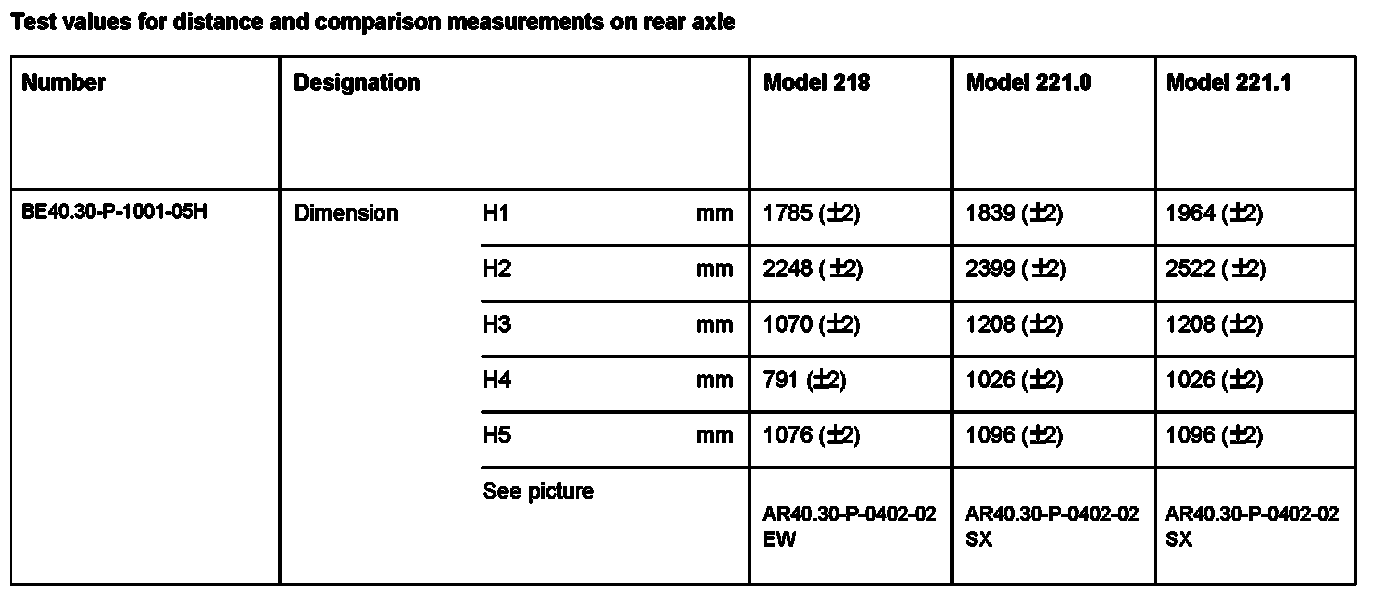

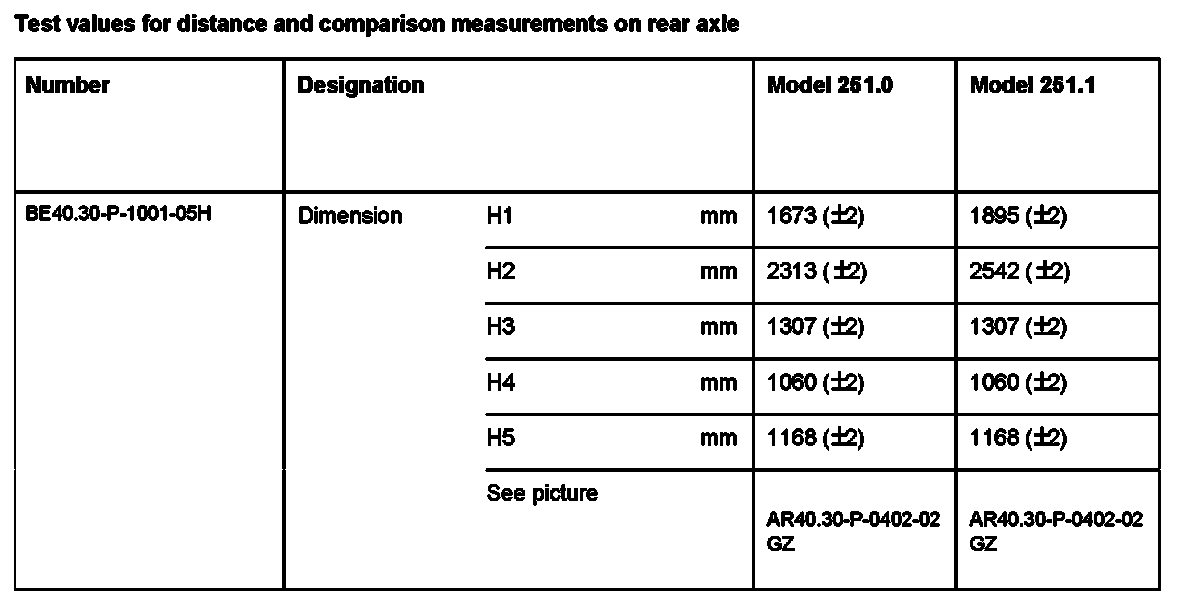

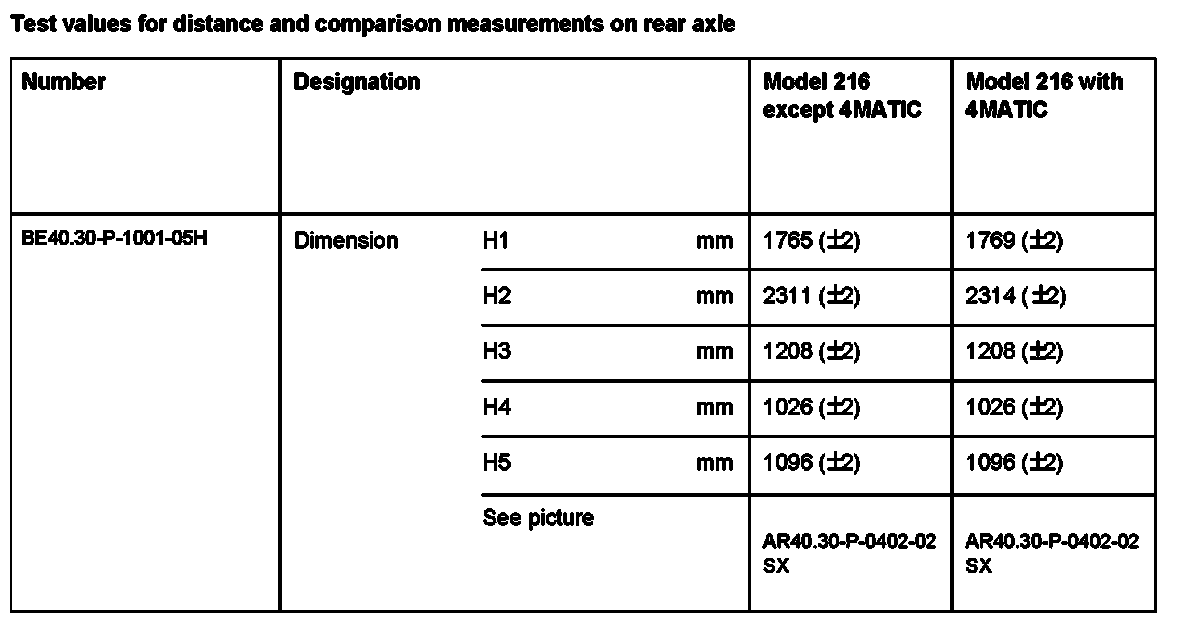

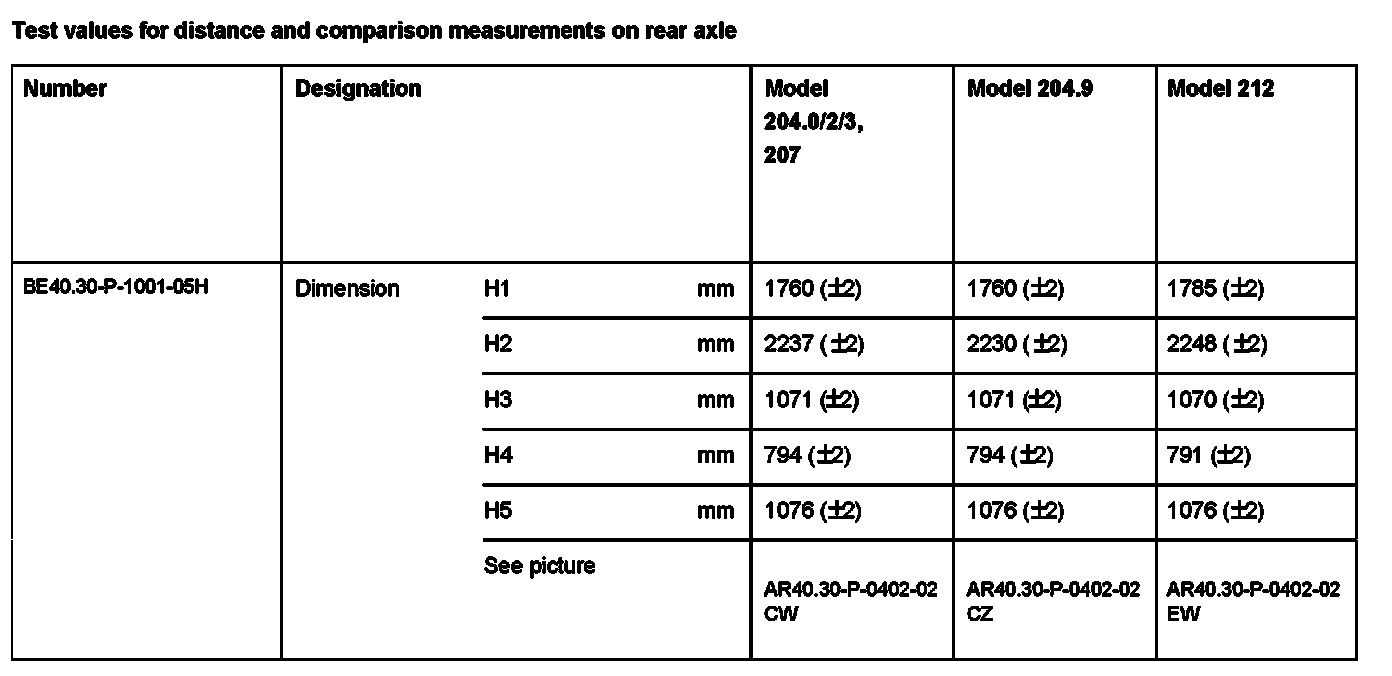

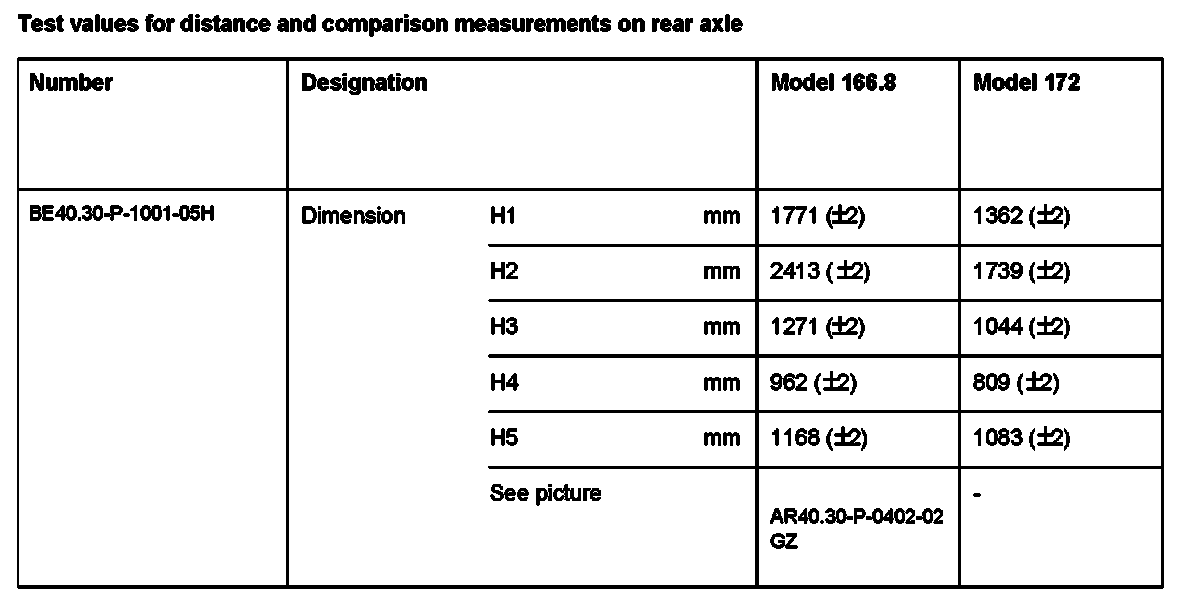

BE40.30-P-1000-05H Test values for distance and comparison measurements on rear axle
