Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Rear Axle Camber >> Without Code 489 Airmatic

Without Code 489 Airmatic

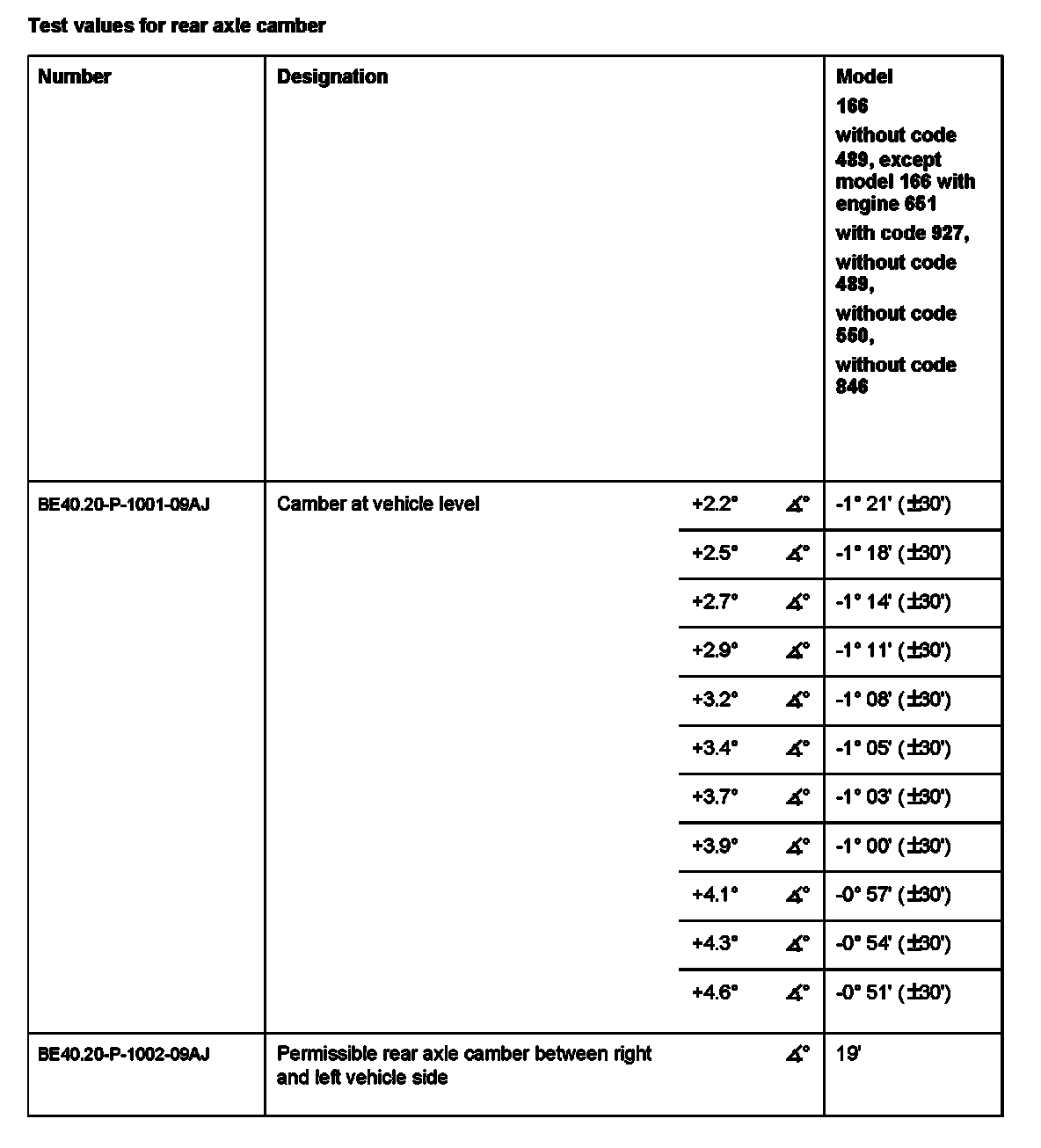

BE40.20-P-1000-09AJ Rear axle camber
Without Code 489 (Airmatic (air suspension with level adjustment and adaptive damping system ADS))
