Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Front Axle Camber >> With Code 489

With Code 489

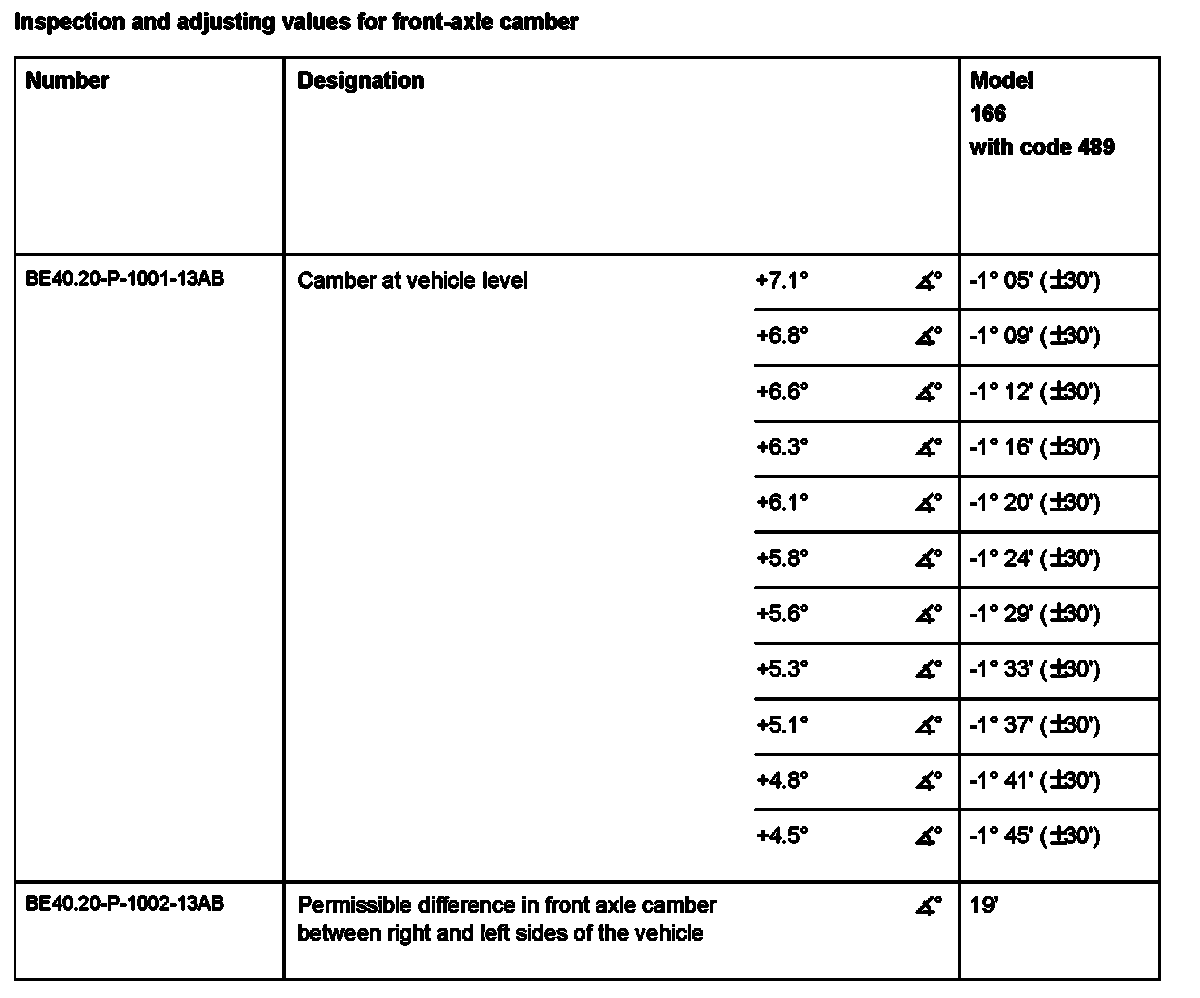

BE40.20-P-1000-13AB Front Axle Camber
Model 166 with code 489,
