Refrigerant Temperature Sensor: Service and Repair



AR83.30-P-5431GZ Remove/Install Refrigerant Pressure and Temperature Sensor
- with CODE (580) Automatic air conditioning

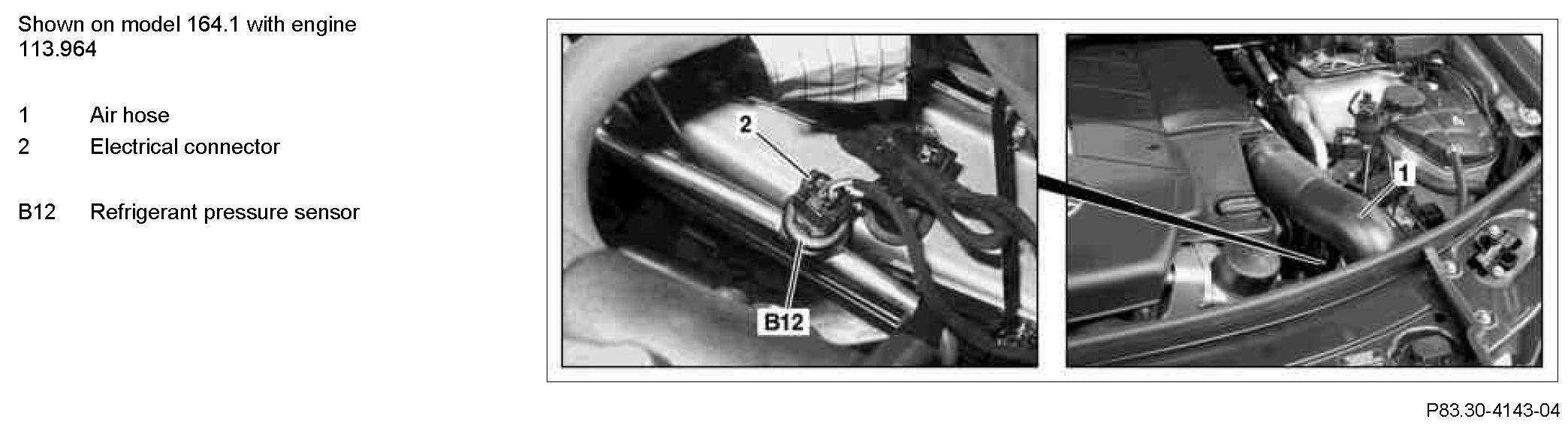

Component Identification:

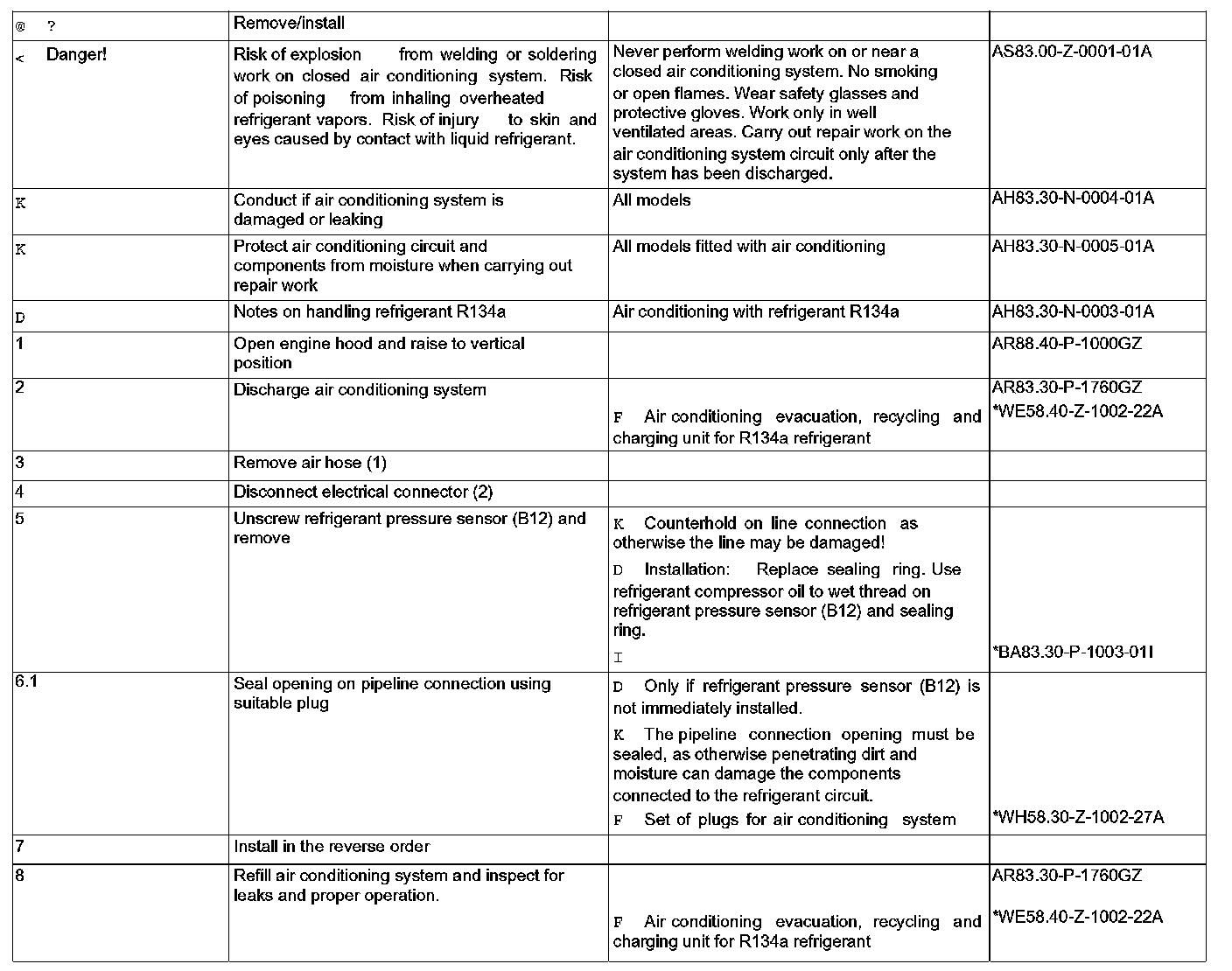

Steps 1 - 8:

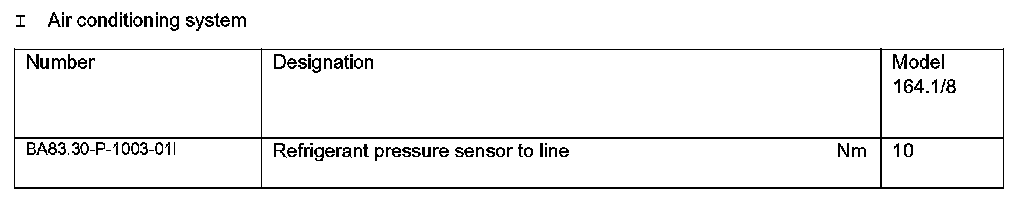

Air Conditioning System:

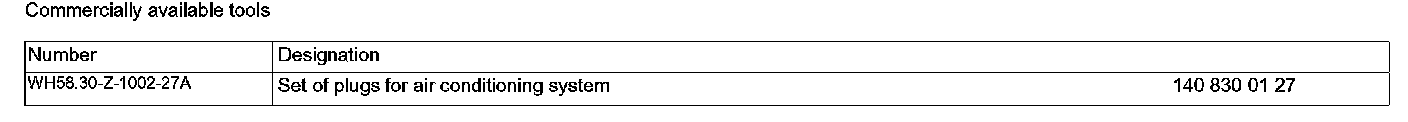

Commercially Available Tools:




Workshop Equipment:
