Collision Avoidance Sensor: Service and Repair

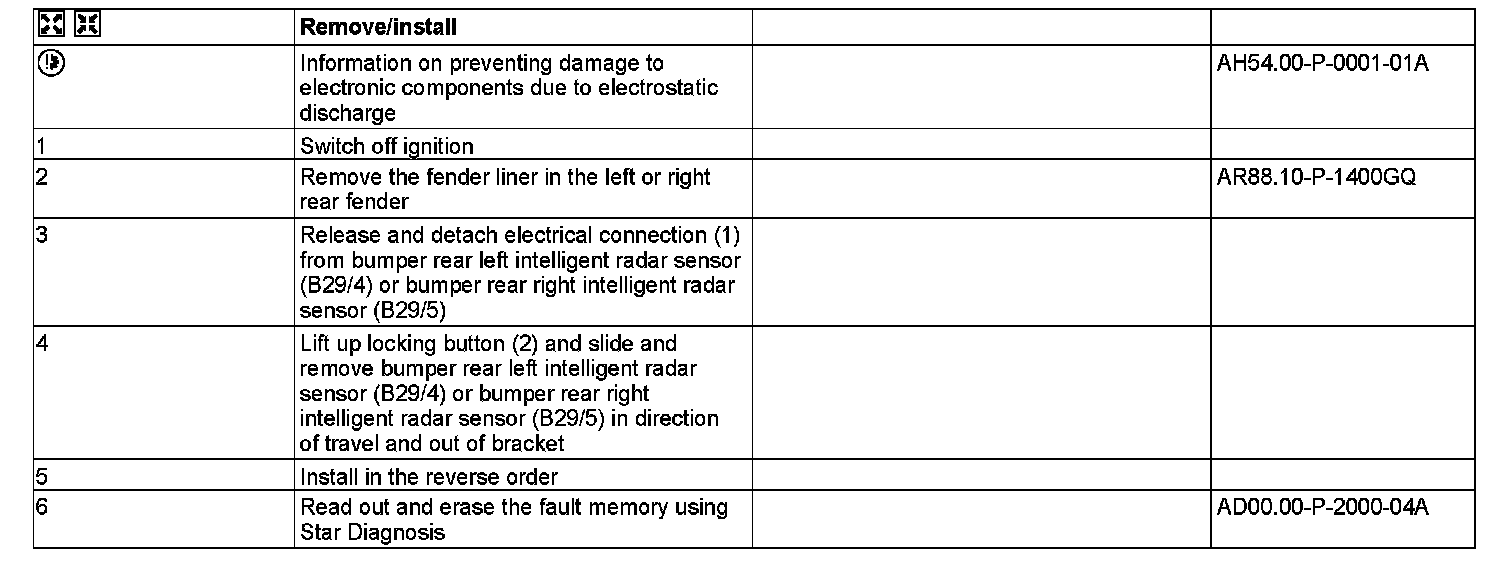

AR54.71-P-0100GQ Remove/Install Sensors For Blind Spot Assist
MODEL 166
- with CODE (234) Blind Spot Assist
- with CODE (237) Active Blind Spot Assist

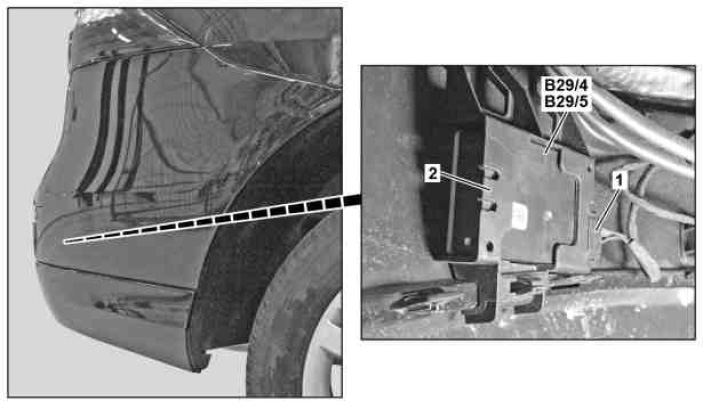

Shows model 166.024
1 Electrical connector
2 Lock button
B29/4 Left rear bumper intelligent radar sensor
B29/5 Right rear bumper intelligent radar sensor
