Restraints - Noise From Seat Belt Height Adjustment

Noise from seat belt height adjustment

Topic number LI91.40-P-053572

Version 3

Design group 91.40 Seat belts, emergency tensioning retractors

Date 11-27-2012

Validity W 204 as of facelift (code 802), S 204 as of facelift (code 802), X 204, model series 246, W 166, X 166

Reason for change Validity extended to include model series W166 and X166

Complaint:
Creaking noise from left or right front seat belt height adjustment mechanism.

Cause:
Friction between seat belt height adjustment journal in guide slot.

Remedy:

^ Remove B-pillar trim

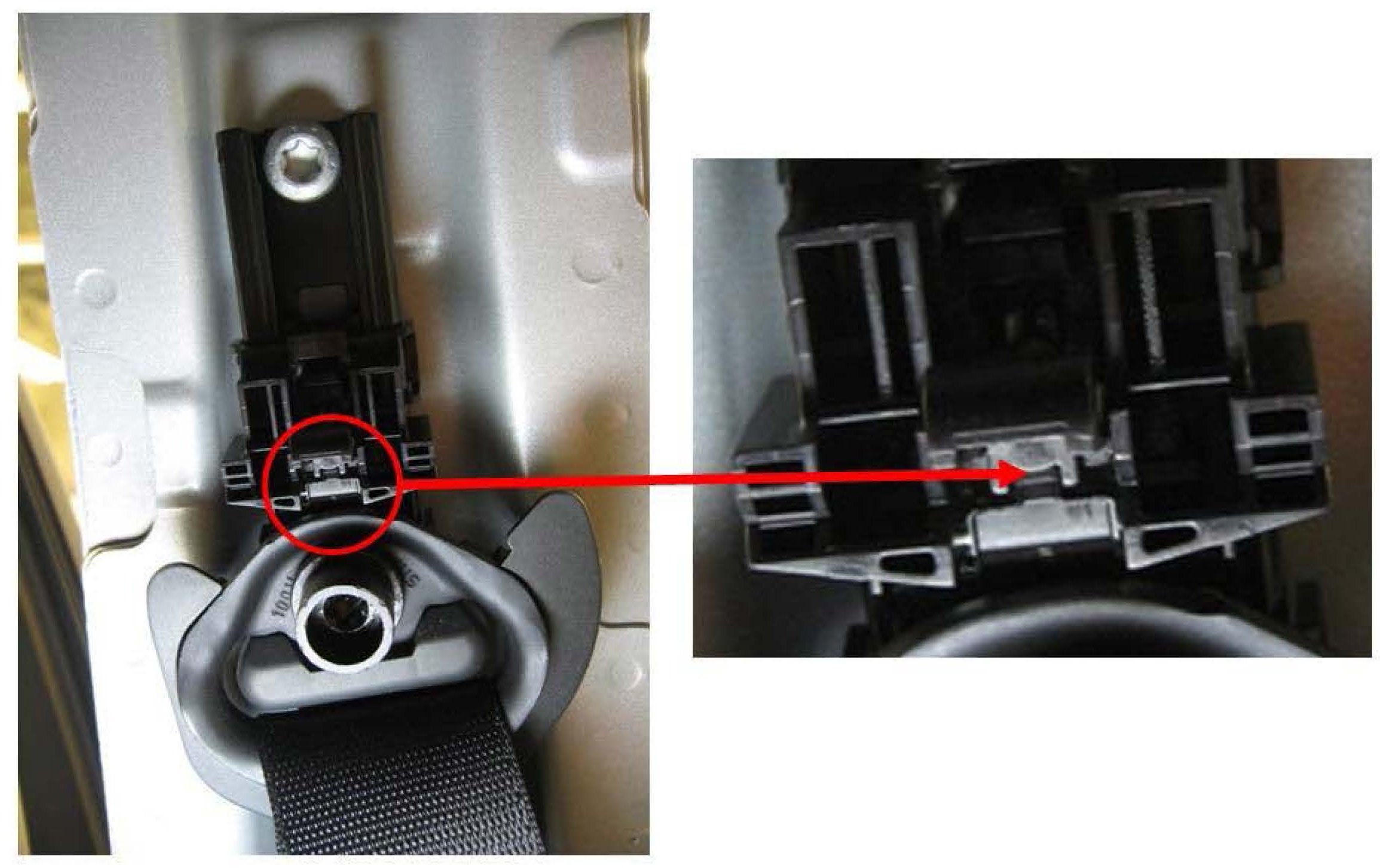

^ Apply a small quantity of lubricant between the seat belt height adjustment journal and the guide slot (Pic_1) using a thin, pointed implement such as a needle

^ Install B-pillar trim

Note:
Do not replace the seat belt!

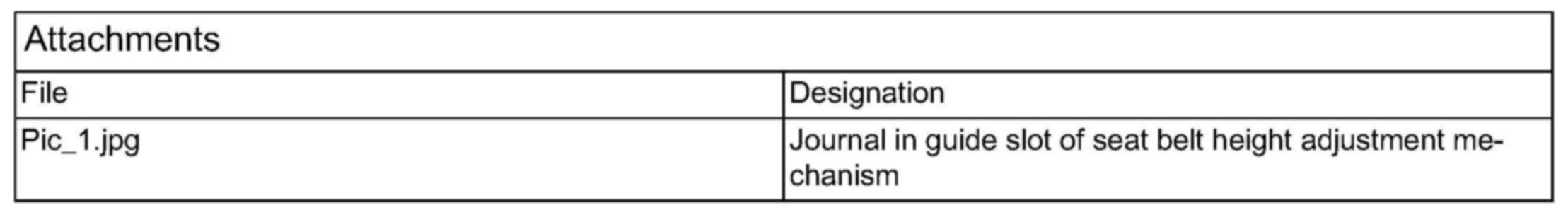

Attachments

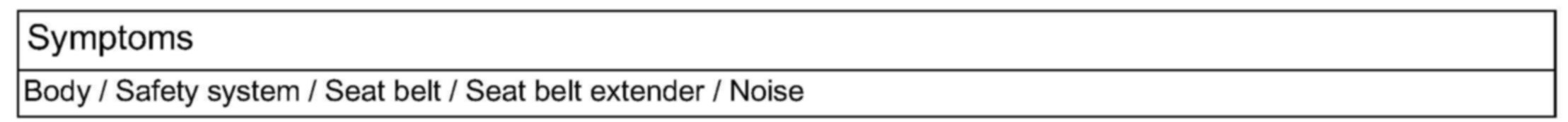

Symptoms

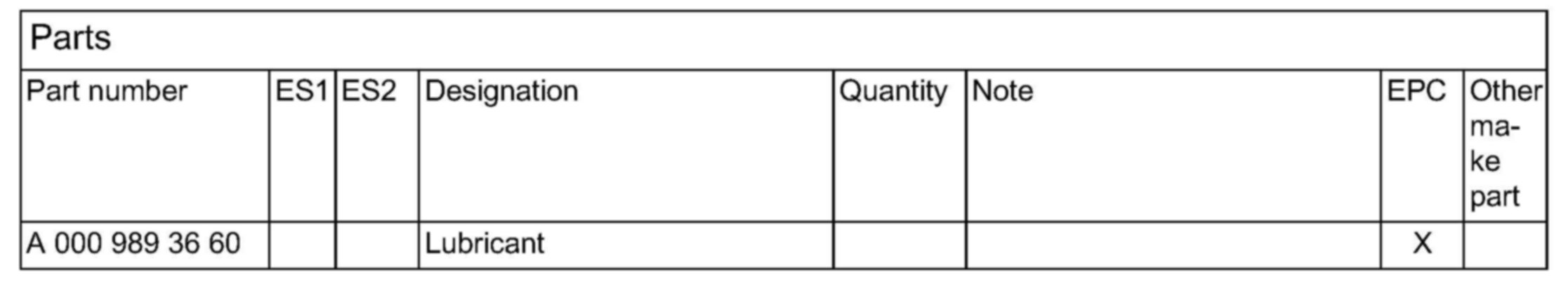

Parts
