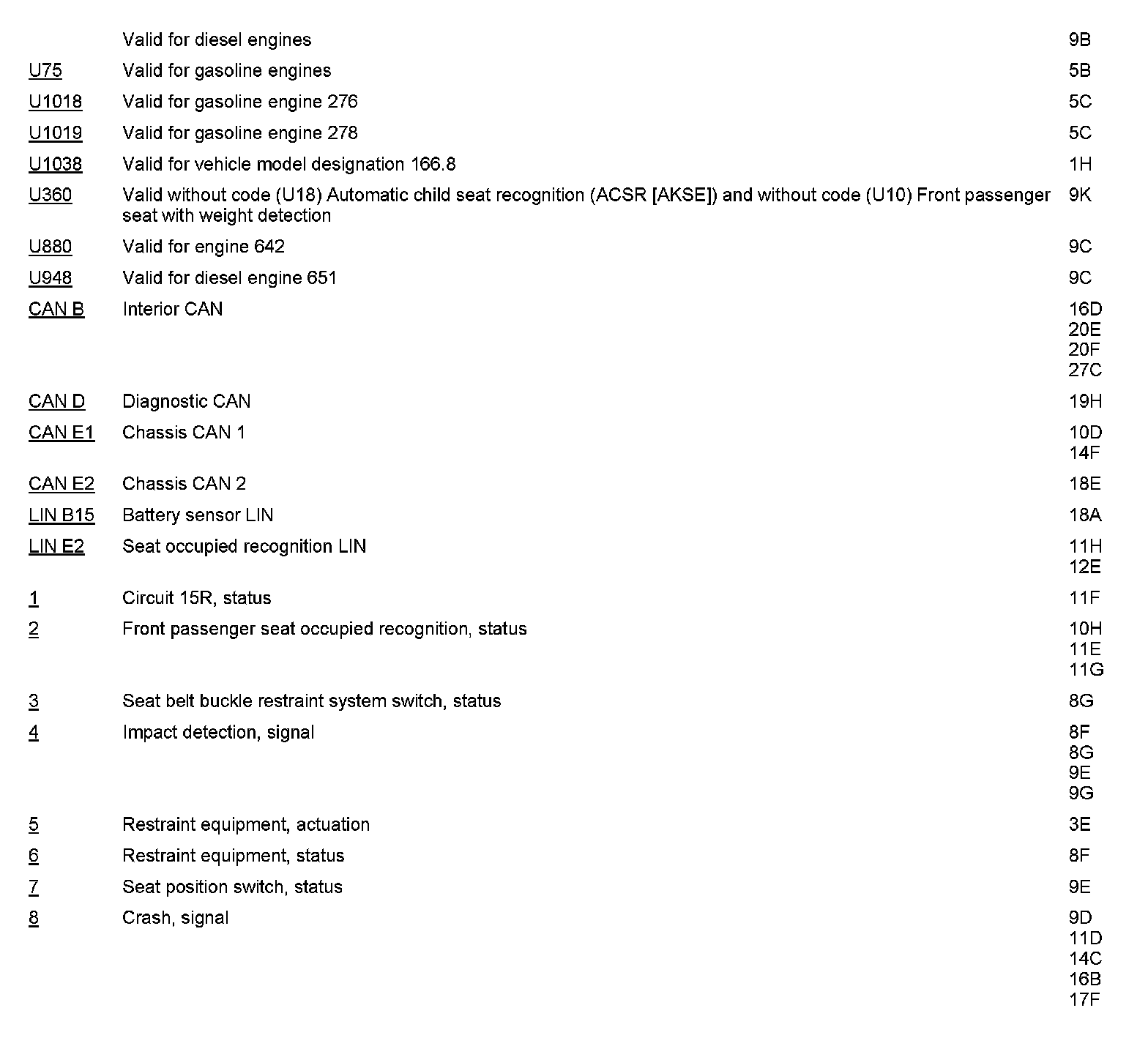

PE91.60-P-2055NAA Actuate Supplemental Restraint System, Electrical Function Schematic

PE91.60-P-2055NAA Actuate Supplemental Restraint System, Electrical Function Schematic
MODEL 166

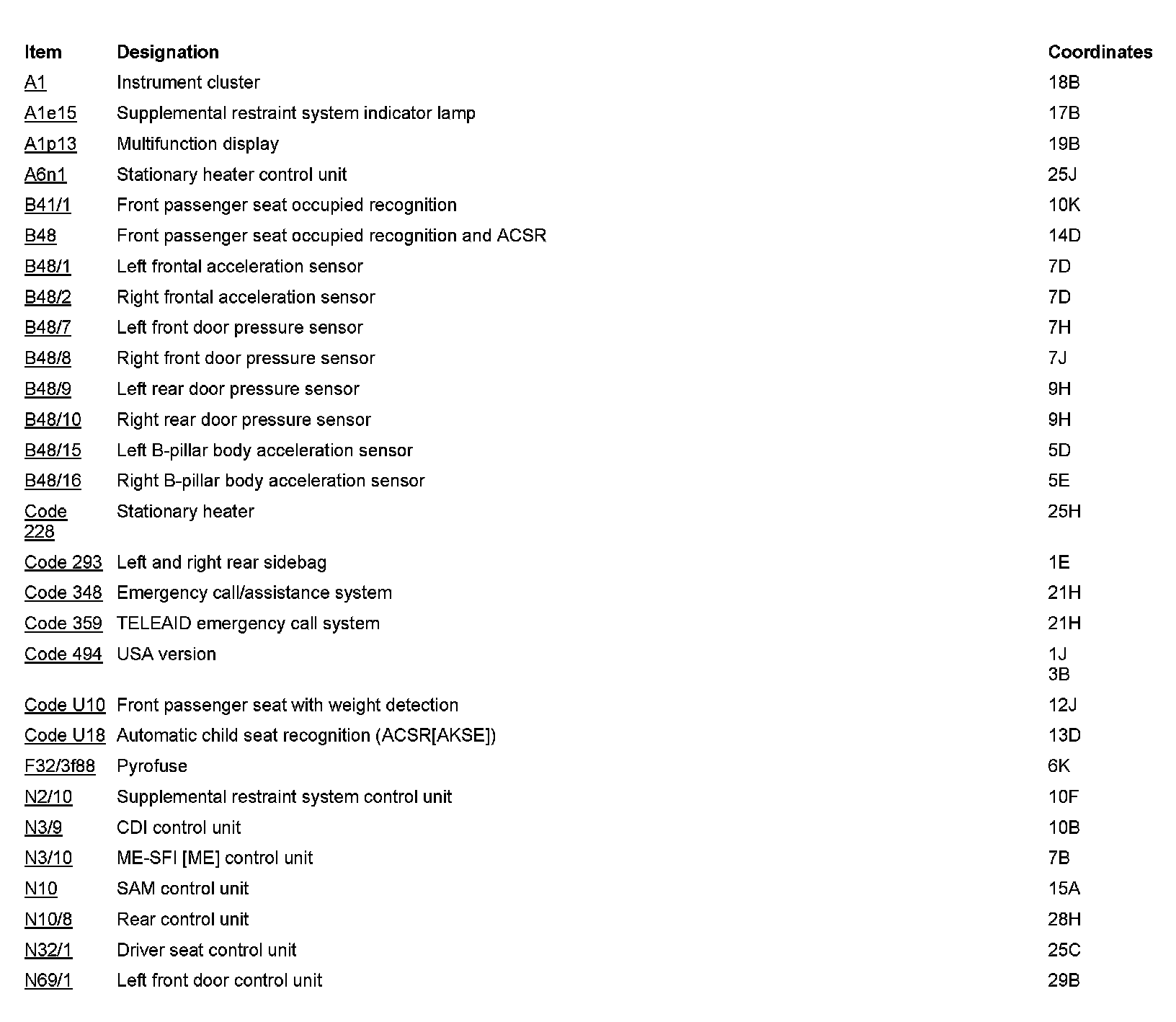

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
