Steering - 'Power Steering Malfunction, Service Required' ON

Fault message in instrument cluster on engine start "Power Steering Malfunction, Service Required"

Topic number LI46.35-P-054644

Version 1

Design group 46.35 Electric steering

Date 09-20-2012

Validity Model 166, all

Reason for change

Complaint:
Fault message in instrument cluster on engine start "Power Steering Malfunction, Service Required". Assistance of the power steering is limited.

The following fault codes and KFC numbers are stored in the control unit of the electric power steering (N68).

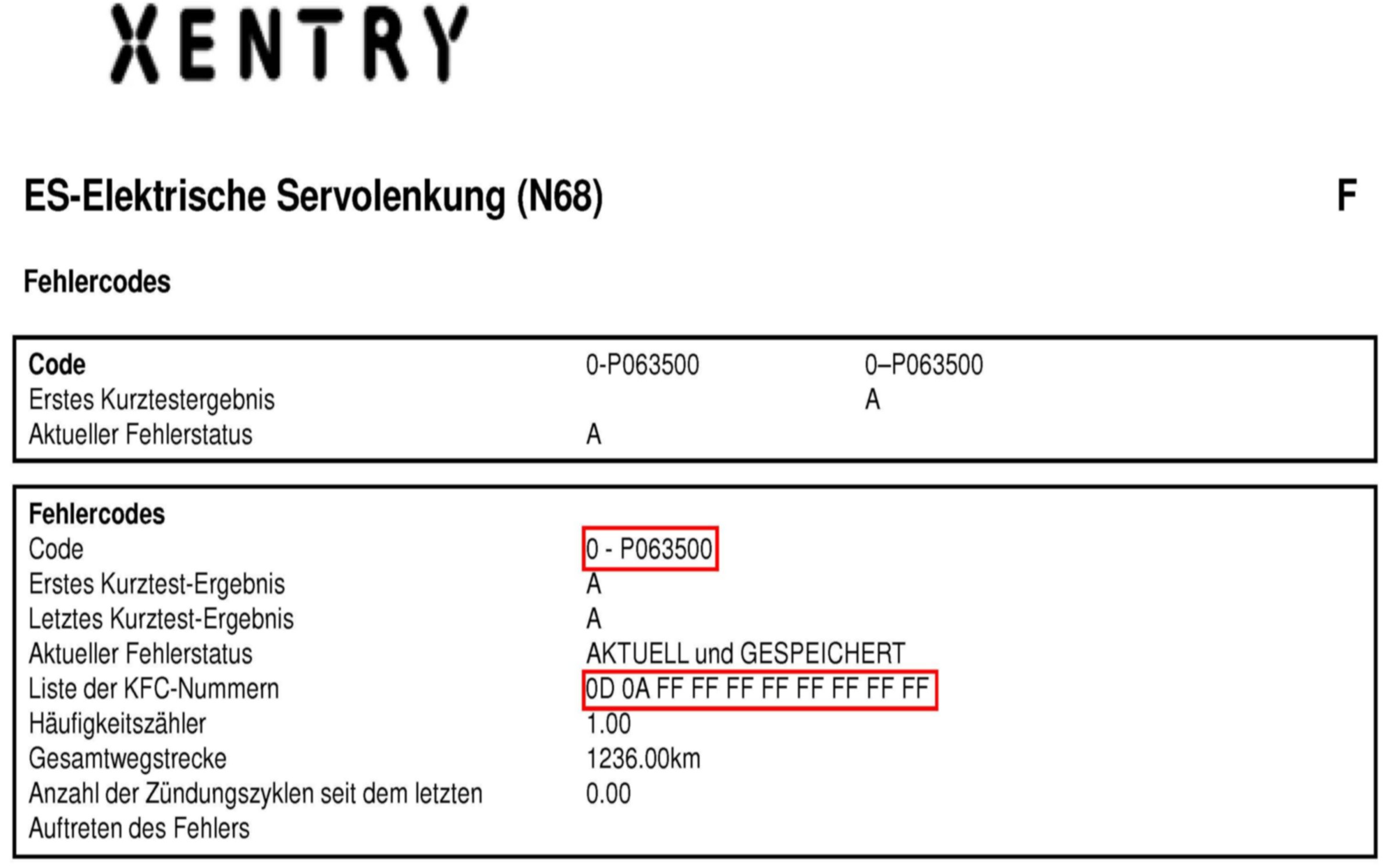

The KFC numbers are listed in the control unit log for the electric power steering (N68) (see example in attachment).

Fault code P063500 with KFC numbers 0D 0A FFFF FFFFFFFFFFFF

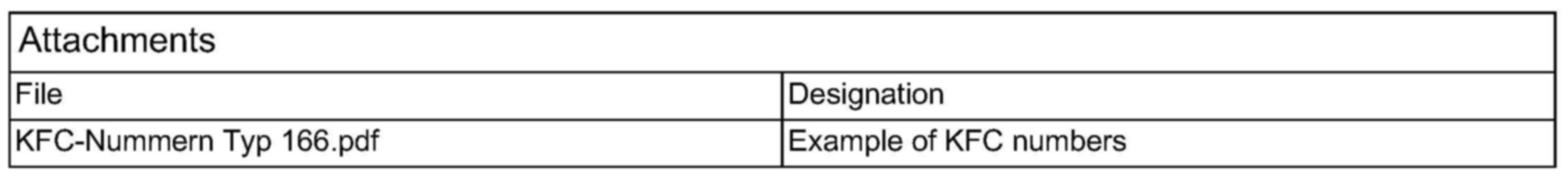

Attachments

Cause:
If the steering is operated during the starting procedure with a low battery charge level, the control unit monitor function can interpret this as implausible and signal a malfunction.

Remedy:
Perform software update of electric power steering (N68). Software available with Xentry version 07/12.

Note:
It is no longer required to refer to the superseded LI46.35-P-052376.

Please follow the normal parts return process if needed.

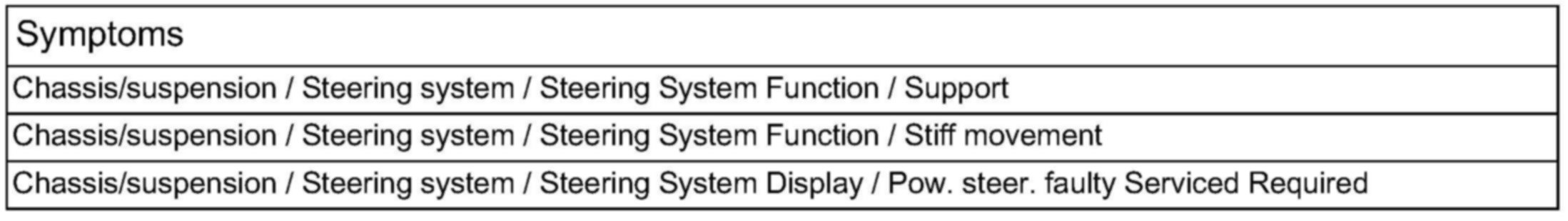

Symptoms





Attachment
