Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Traction Control Module >> Service and Repair >> AR42.45-P-0820EW Remove/Install Electronic Stability Program (ESP) Control Unit

AR42.45-P-0820EW Remove/Install Electronic Stability Program (ESP) Control Unit



AR42.45-P-0820EW Remove/install electronic stability program (ESP) control unit

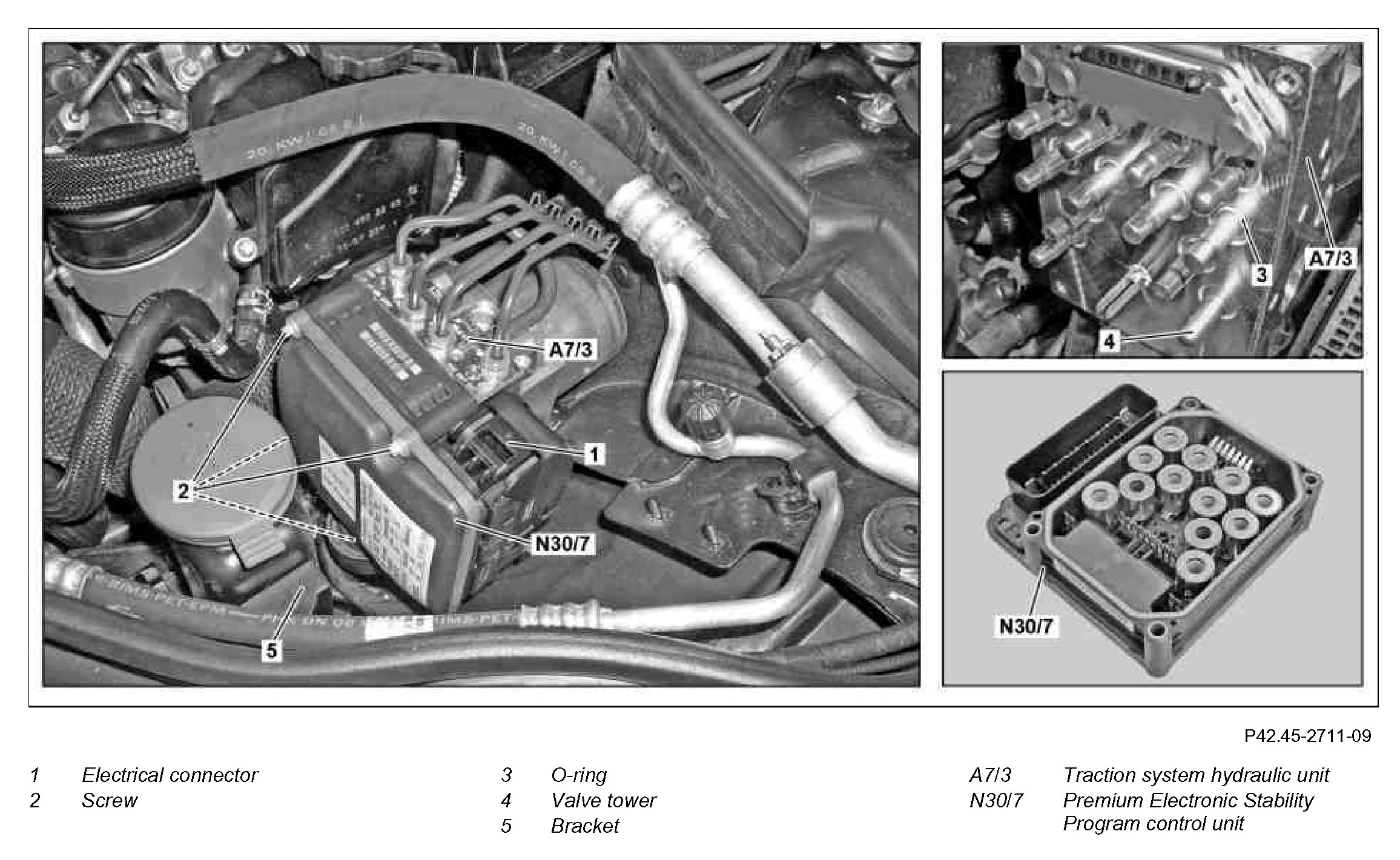

Component Identification:

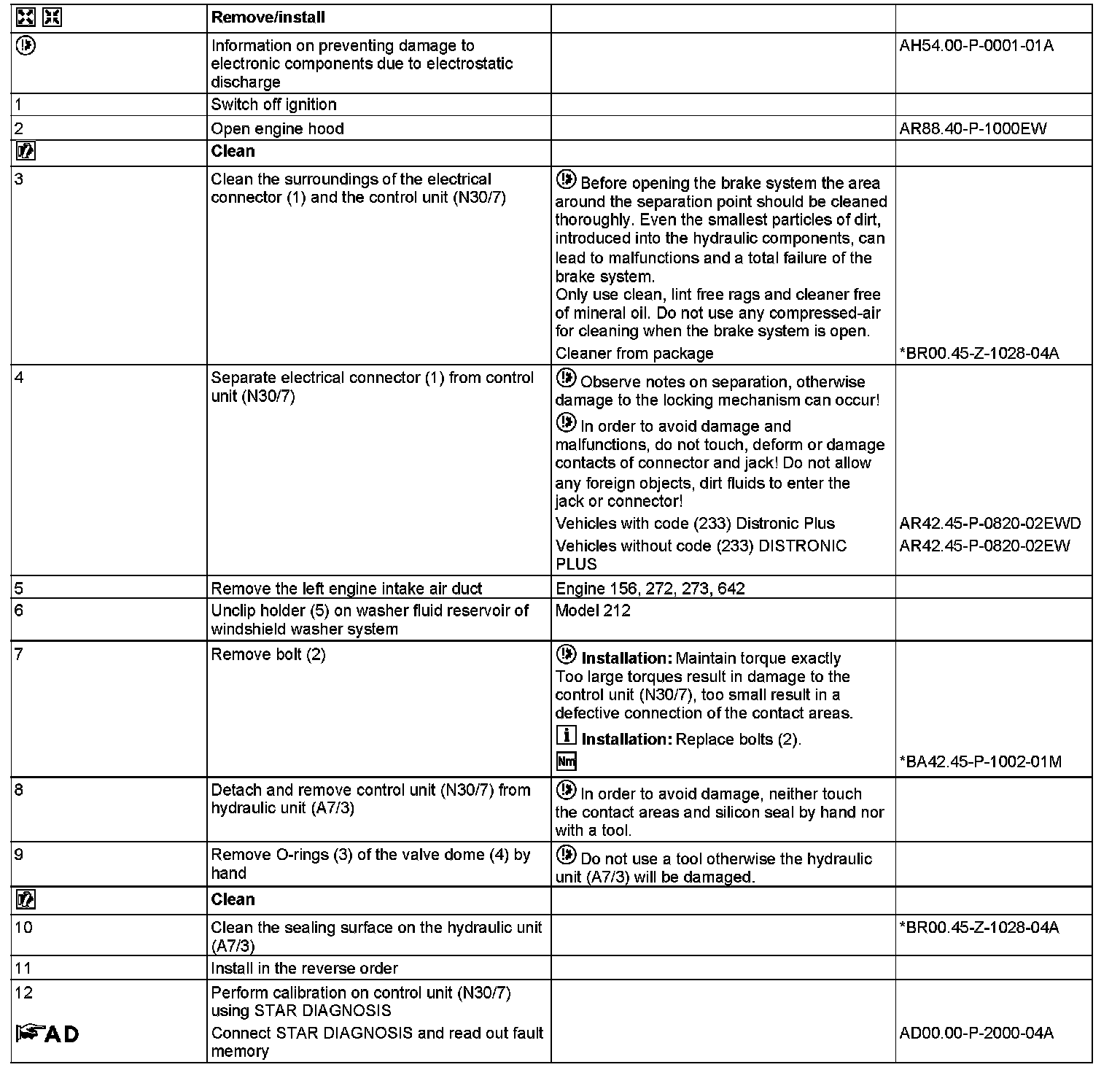

Steps 1-12:

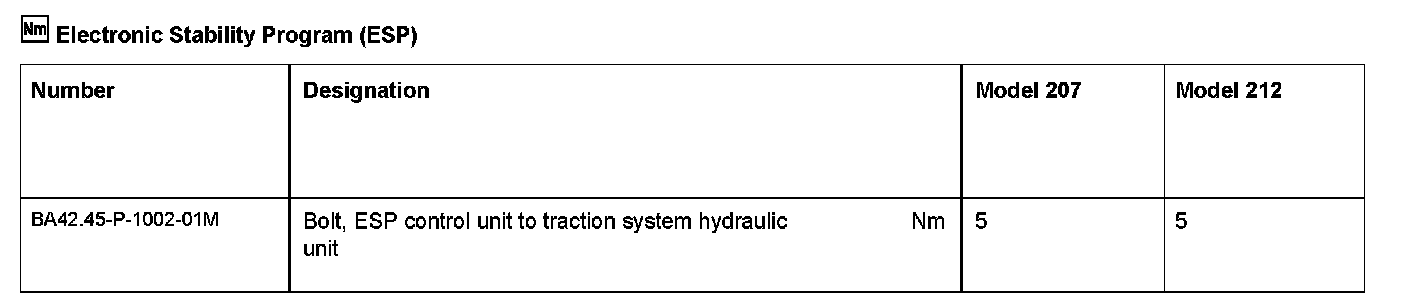

Electronic Stability Program (ESP):

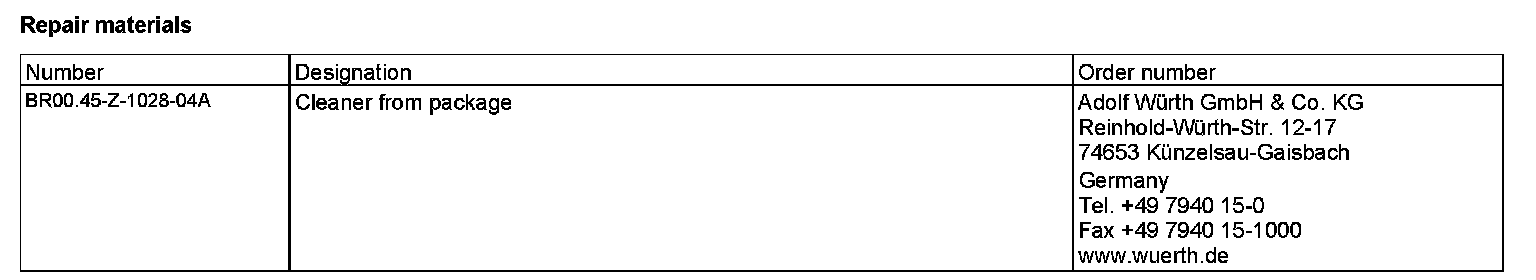

Repair Materials:
