Electrical Diagrams

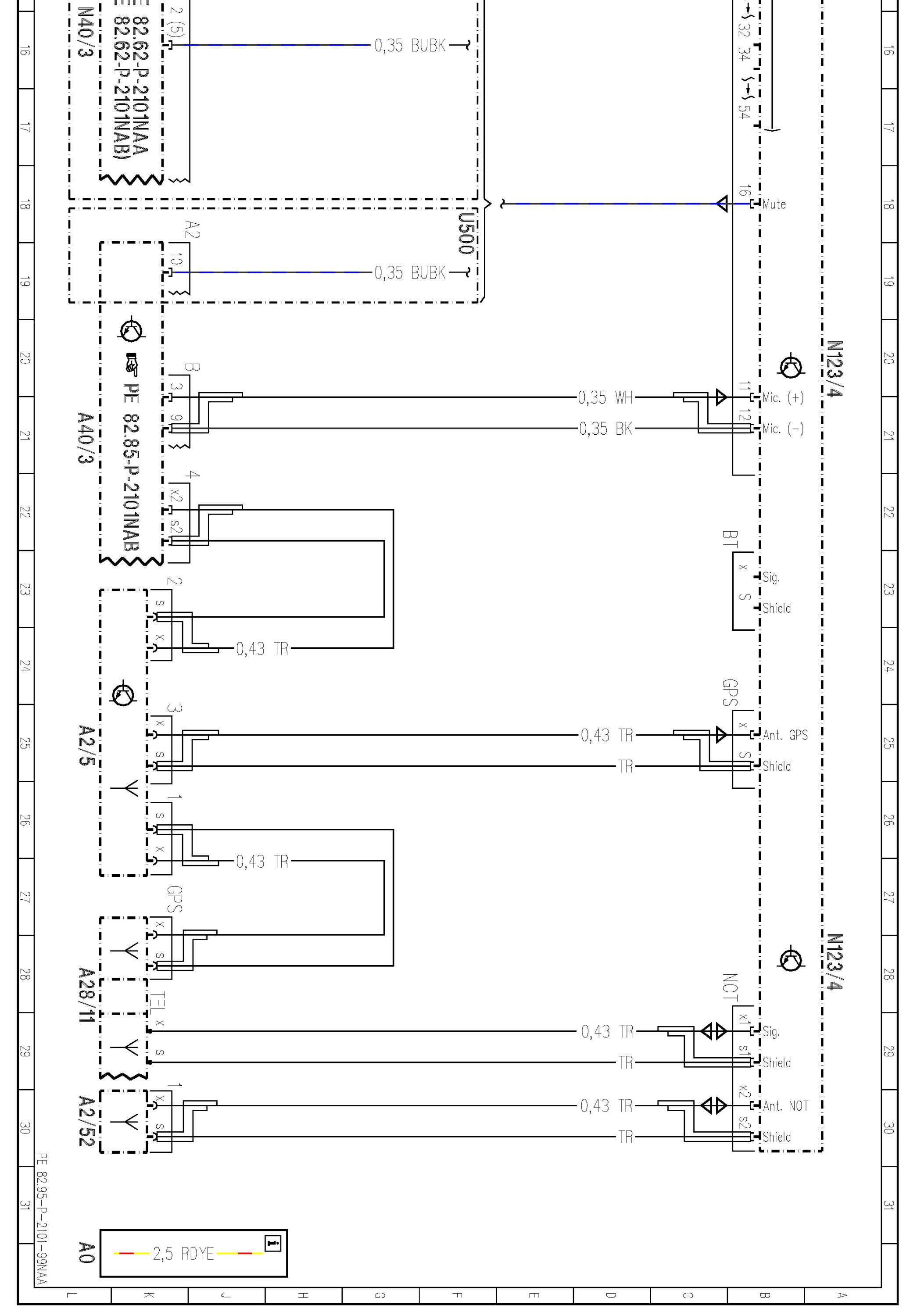

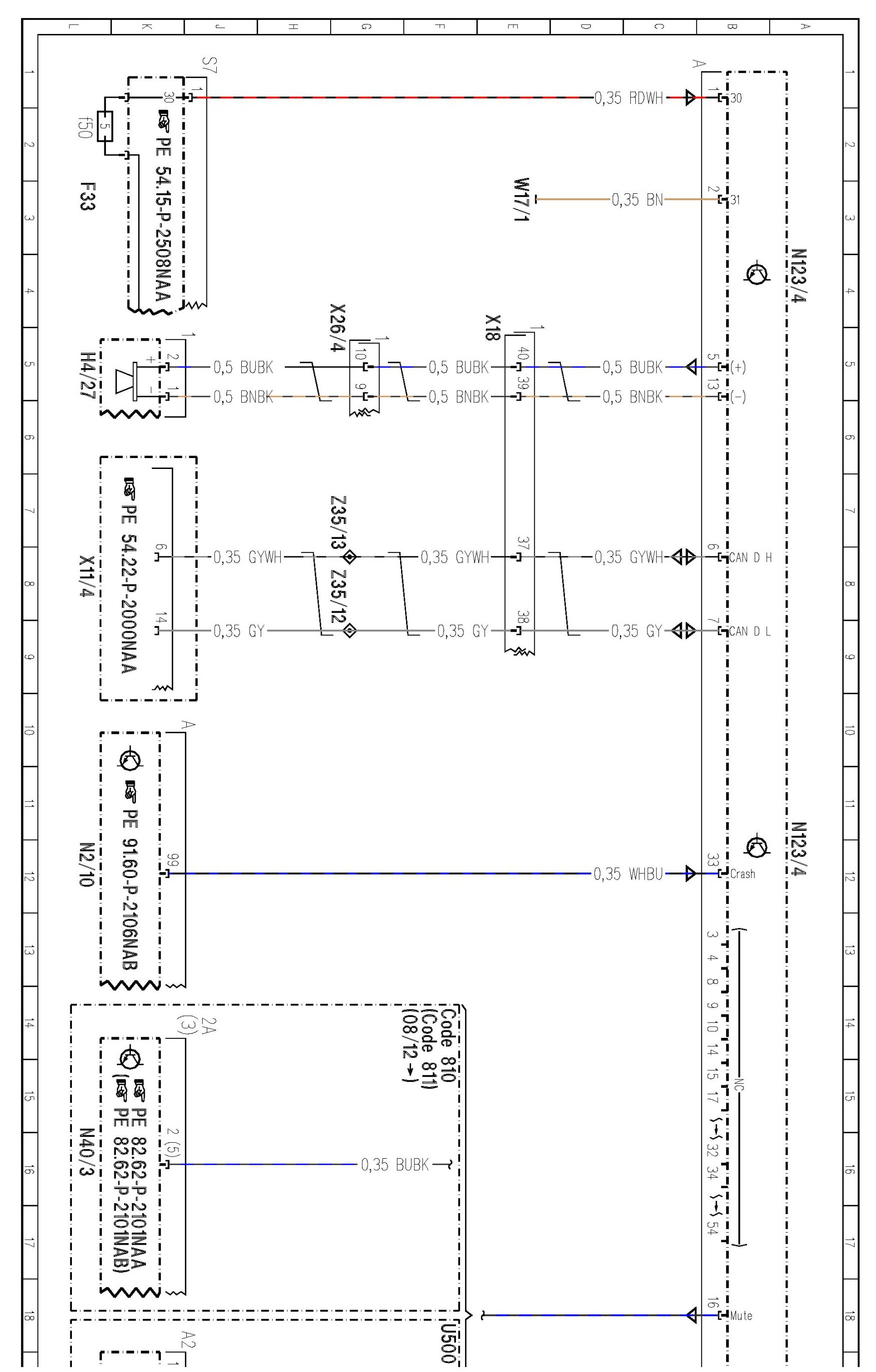

PE82.95-P-2101NAA Emergency Call System Control Unit
MODEL 166
- with CODE (359) TELEAID Emergency Call System
- up to model year 2013
- Control Unit N123/4
MODEL 166
- with CODE (348) Emergency Call/Assist system
- as of model year 2013
- Control Unit N123/4






































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
