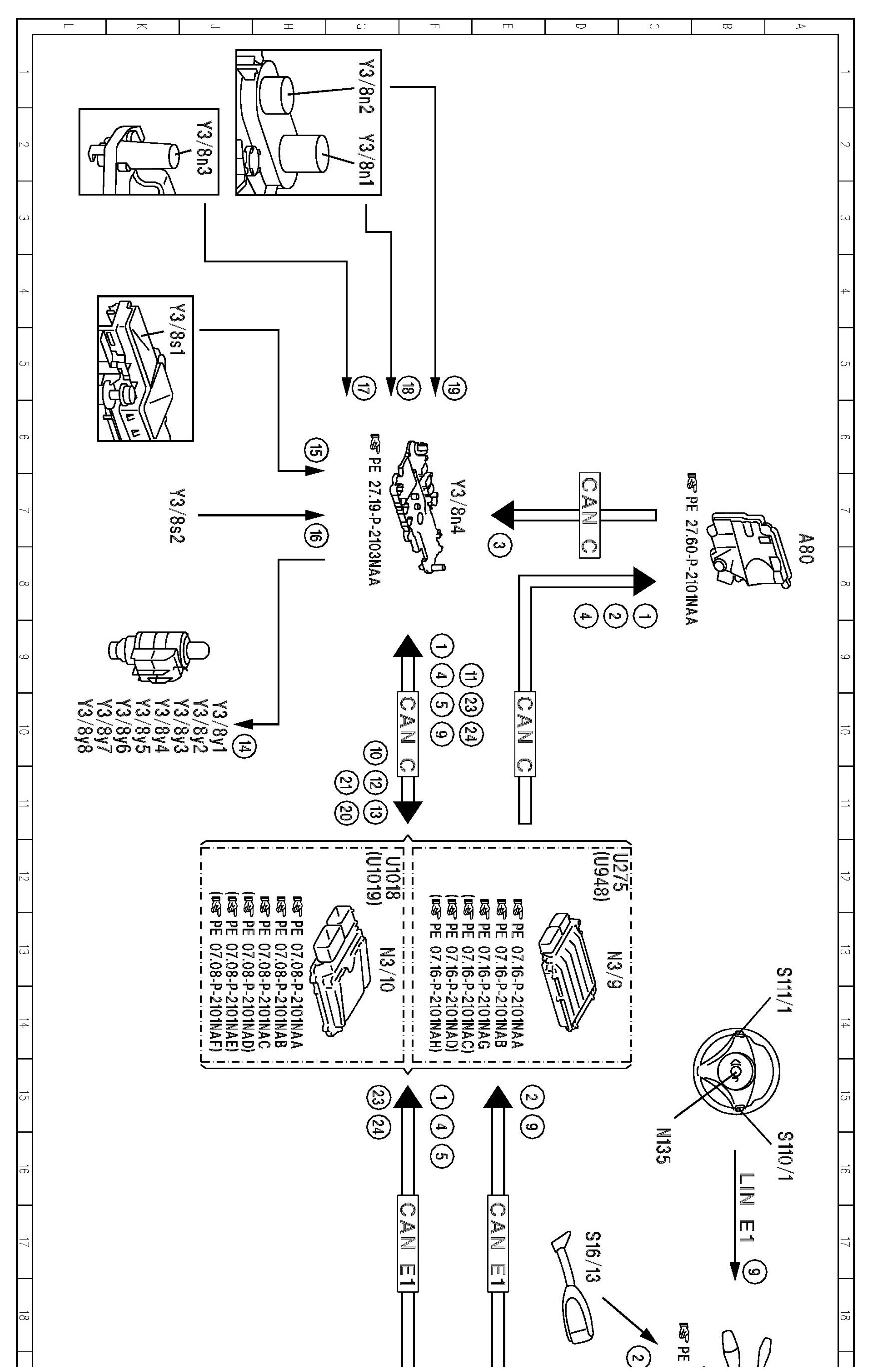

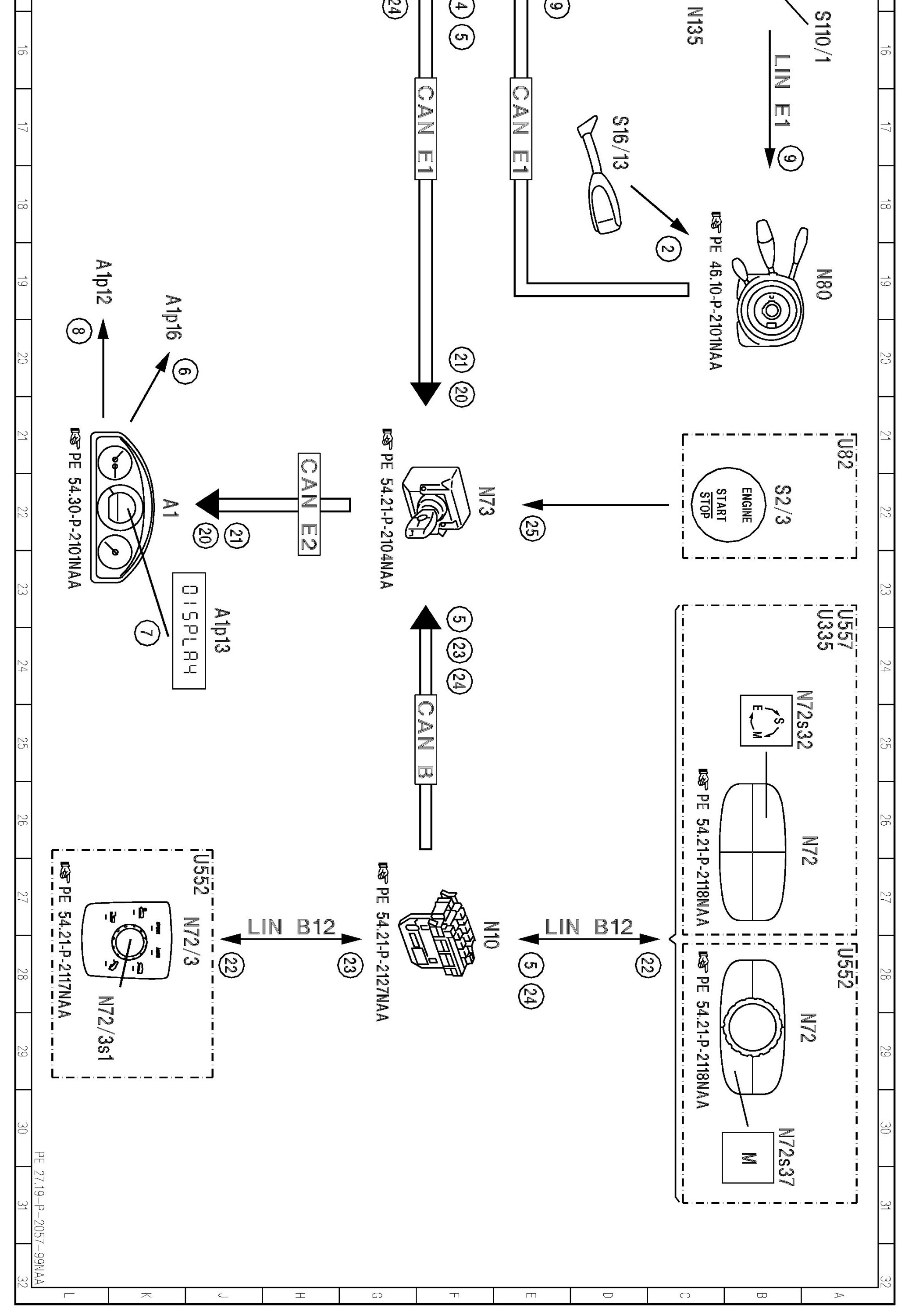

PE27.19-P-2057NAA Electrical Function Schematic For Shift Operation

PE27.19-P-2057NAA Electrical Function Schematic For Shift Operation
TRANSMISSION 722.9 in MODEL 166

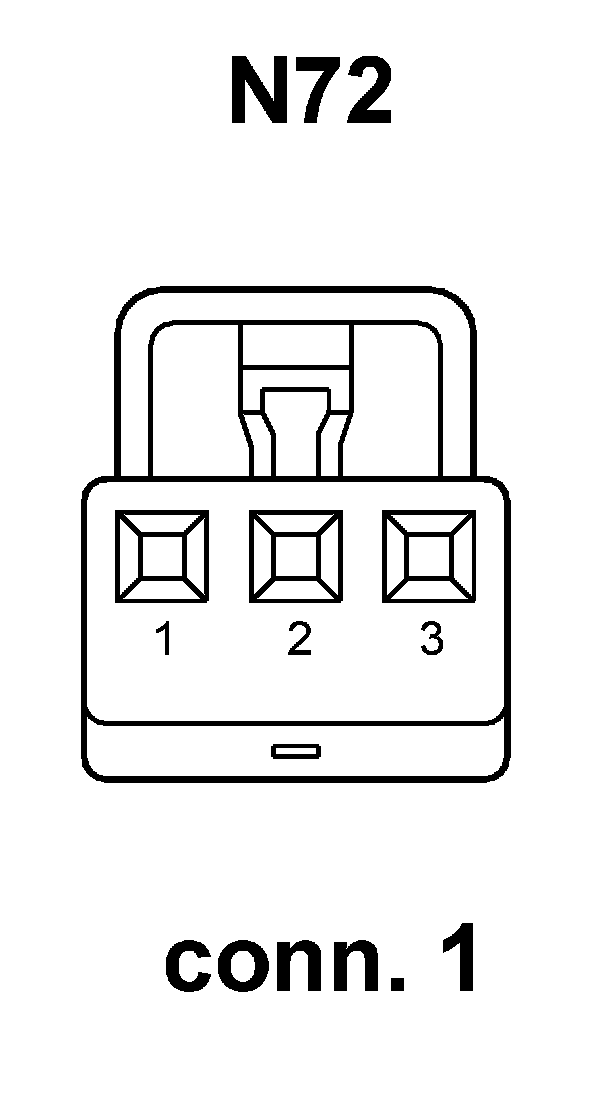

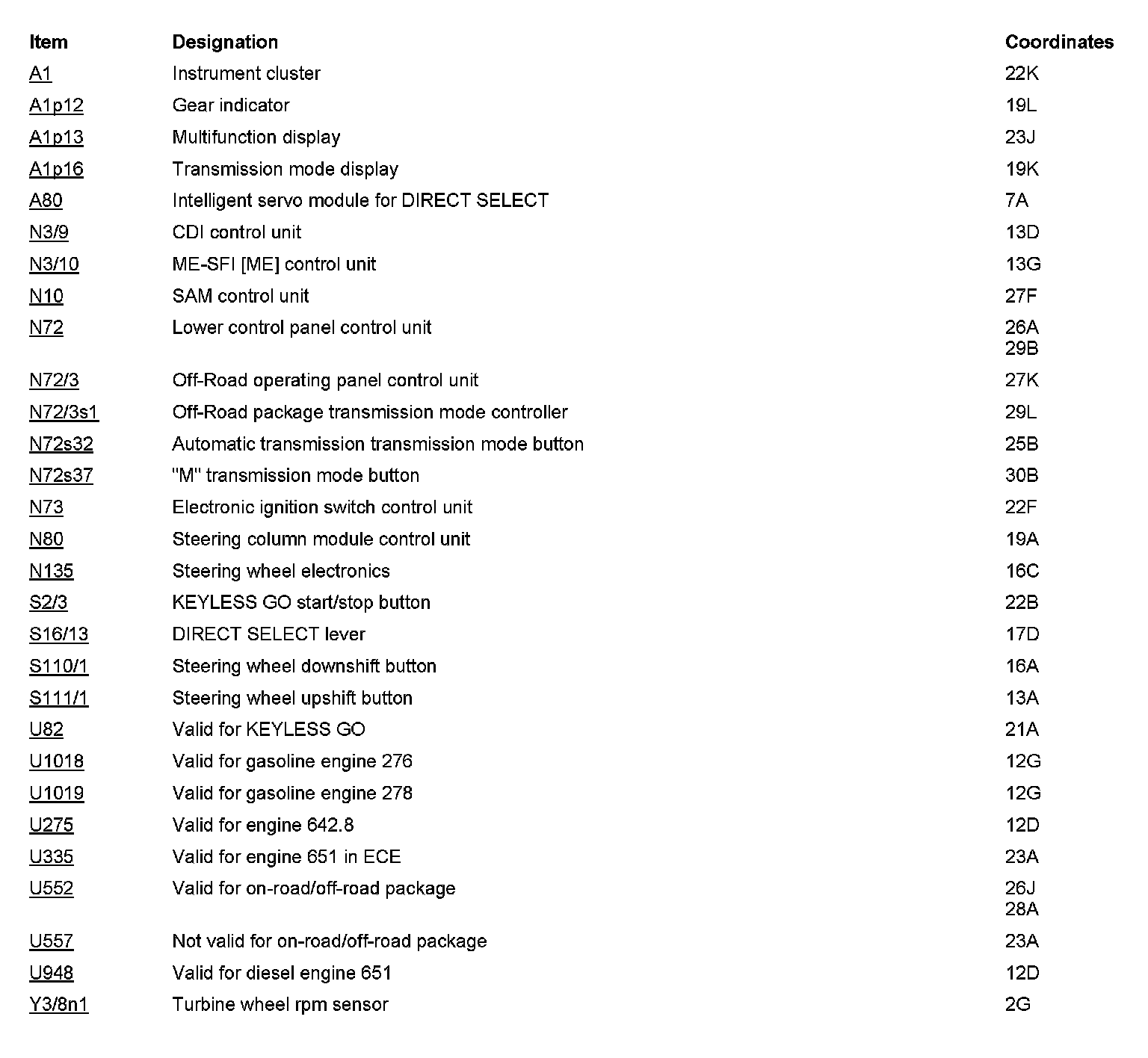

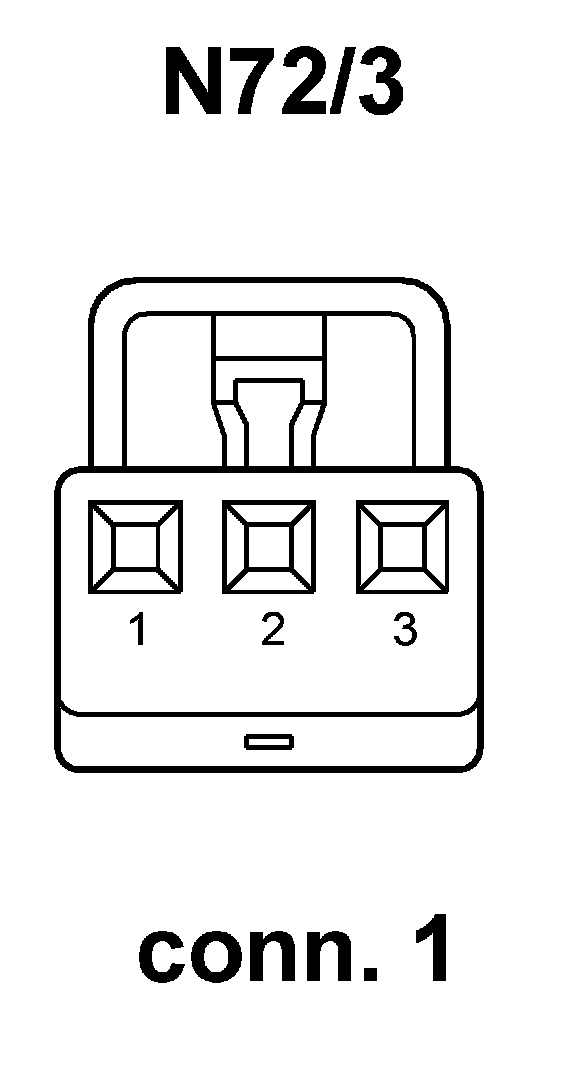

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
