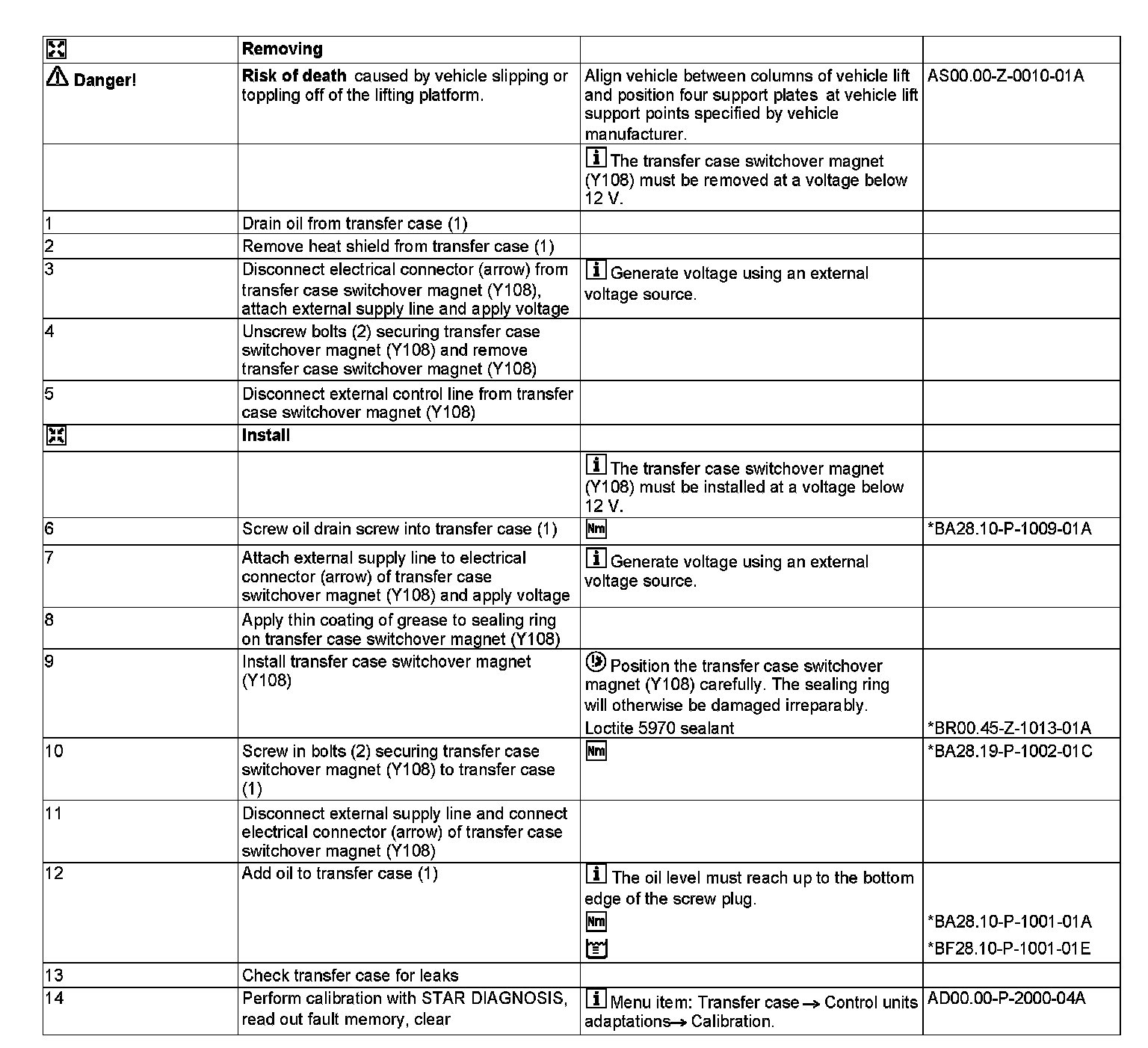

AR28.19-P-1010GQ Remove/Install Transfer Case Switchover Magnet




AR28.19-P-1010GQ Remove/Install Transfer Case Switchover Magnet
MODEL 166.0 with TRANSMISSION 722.9
- with CODE (430) On & off-road package

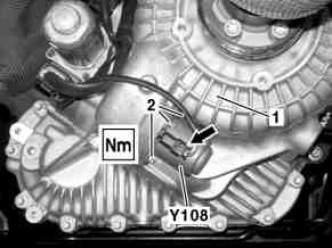

1 Transfer case
2 Bolts

Y108 Transfer case switchover magnet
