Fuel Filler Neck: Service and Repair

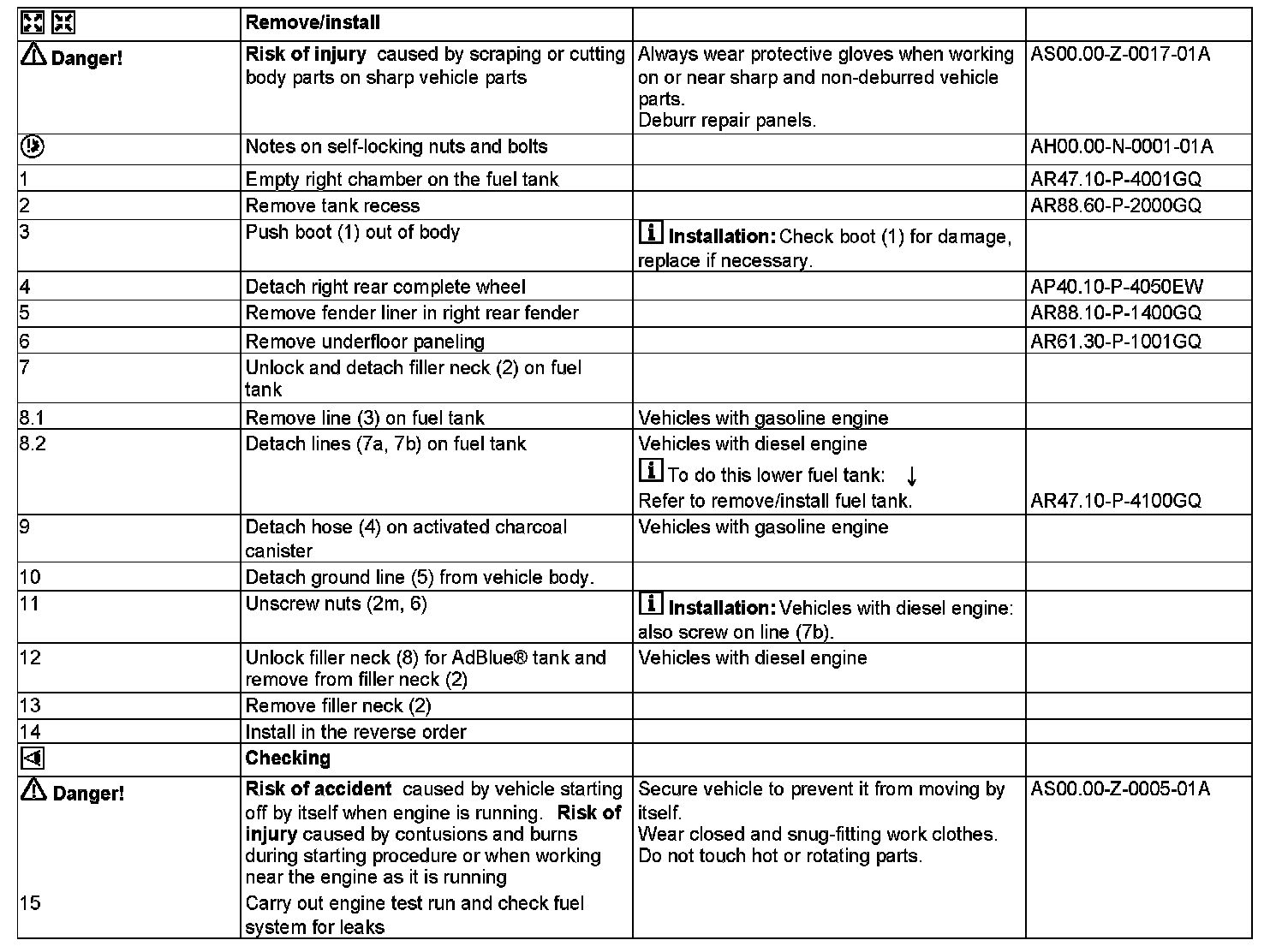

AR47.10-P-7541GQ Remove/Install Filler Neck of Fuel Tank
MODEL 166 with ENGINE 276, 278, 642, 651

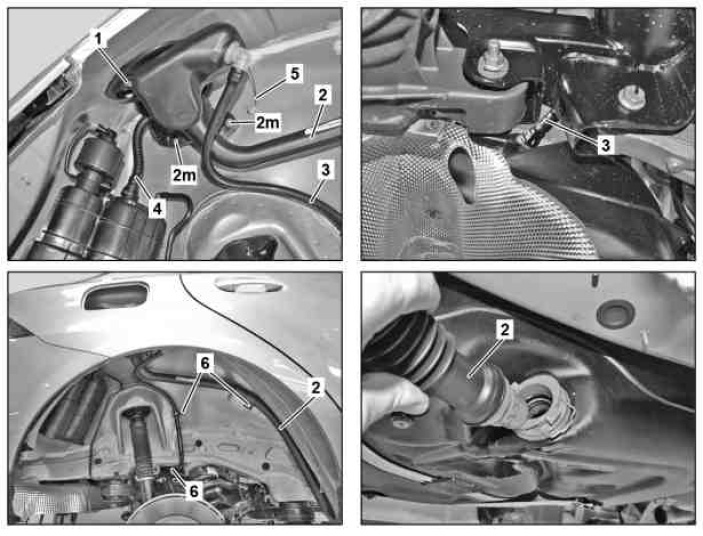

Shows model 166.057

1 Boot
2 Filler neck
2m Nut
3 Cable
4 Hose
5 Ground cable
6 Nut

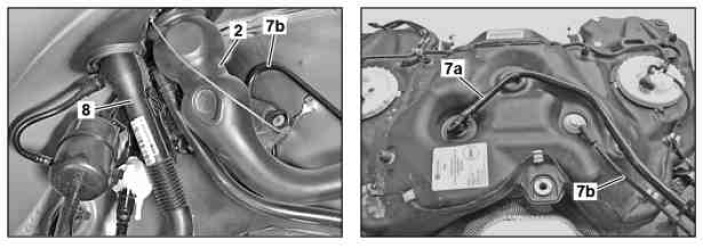

Shows model 166.024

2 Filler neck
7a Cable
7b Cable
8 Filler neck
