Fuel Pump: Diagrams

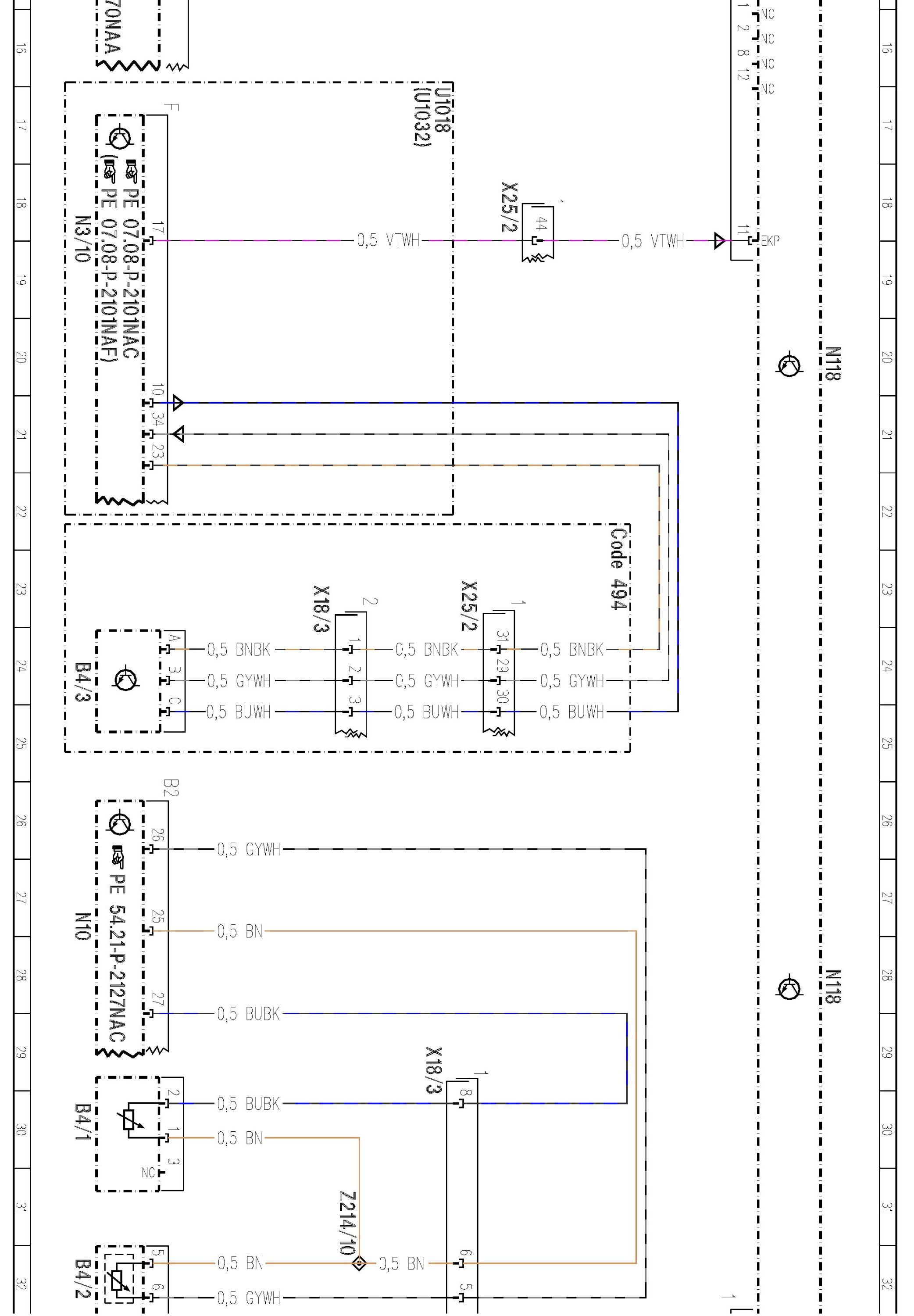

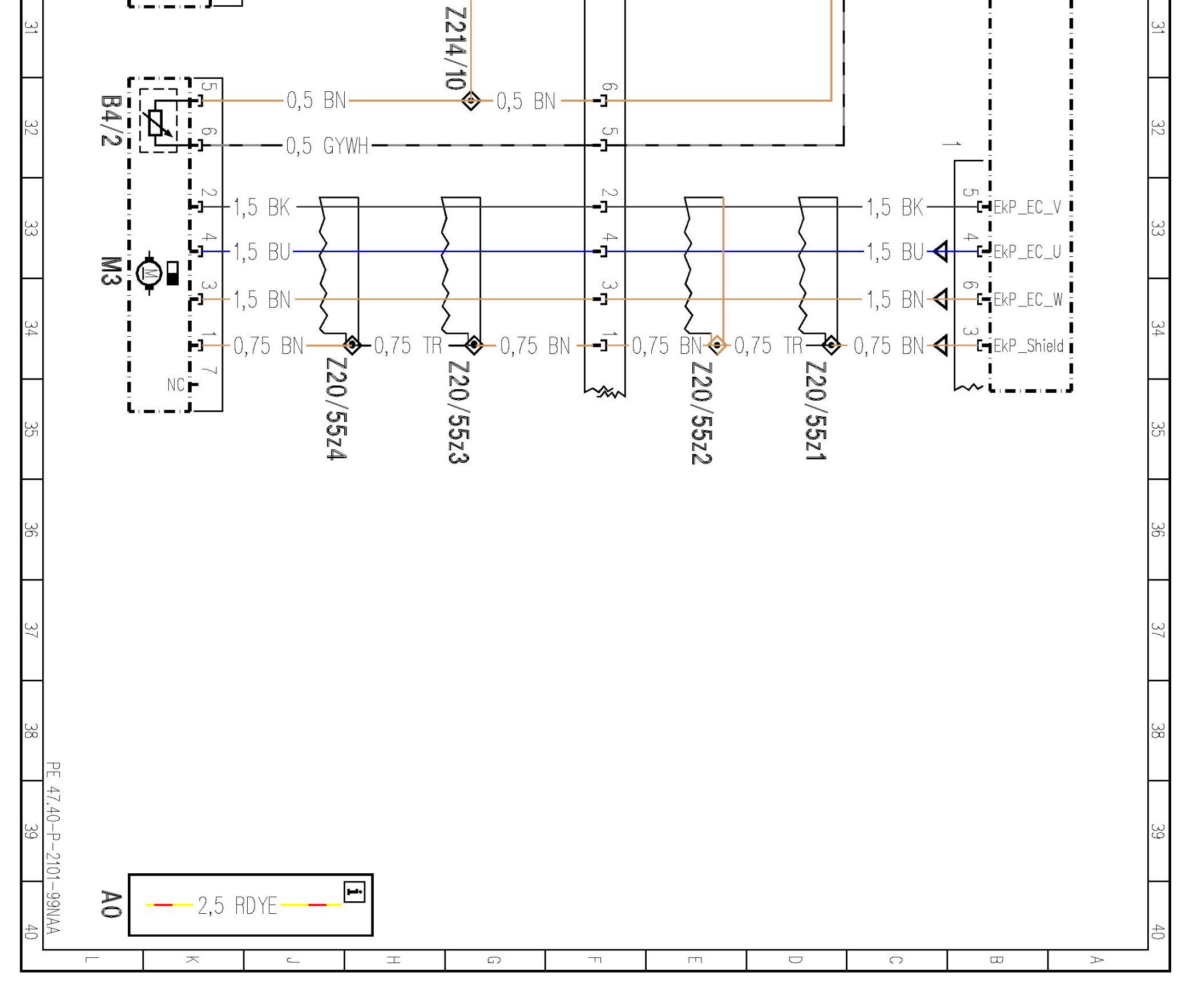

PE47.40-P-2101NAA Fuel System Control Unit
ENGINES 276.9, 278.9 in MODEL 166

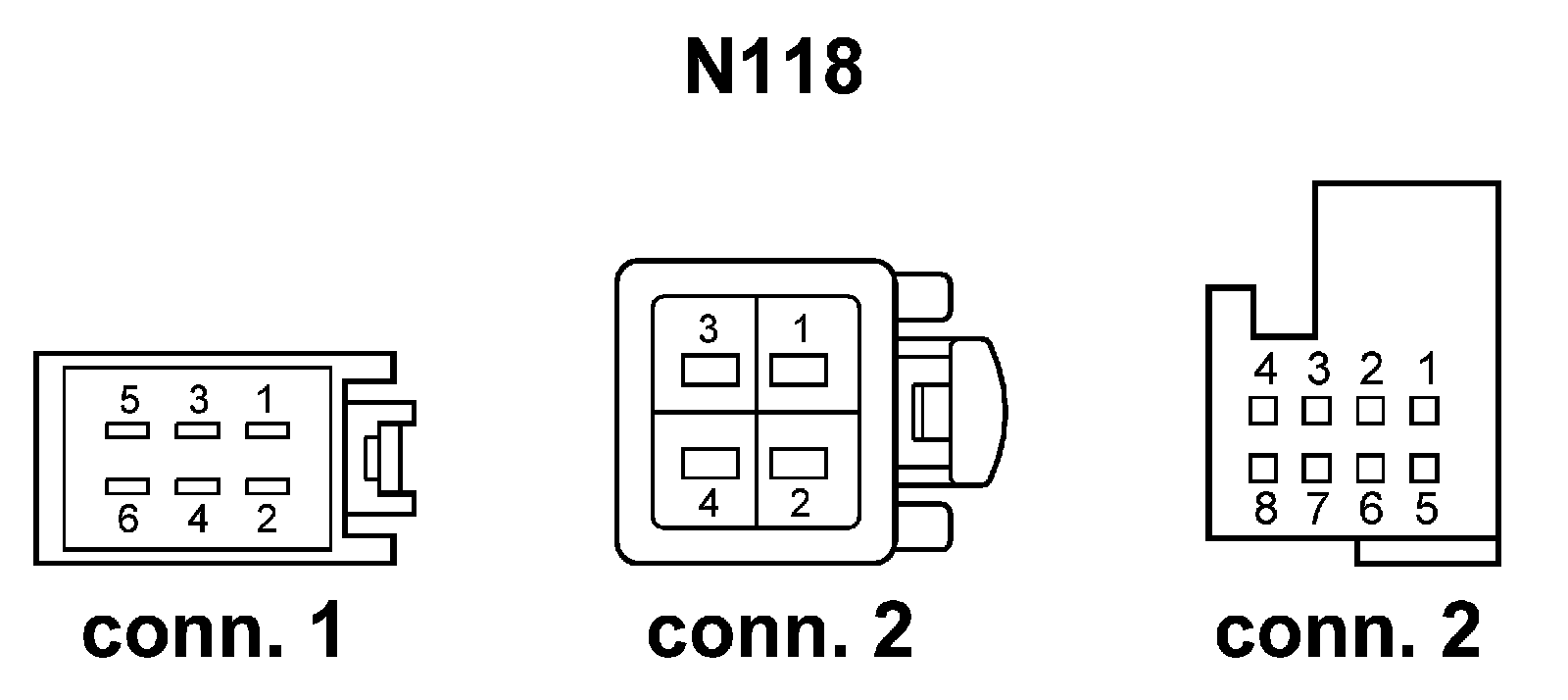

- Control Unit N118


























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
